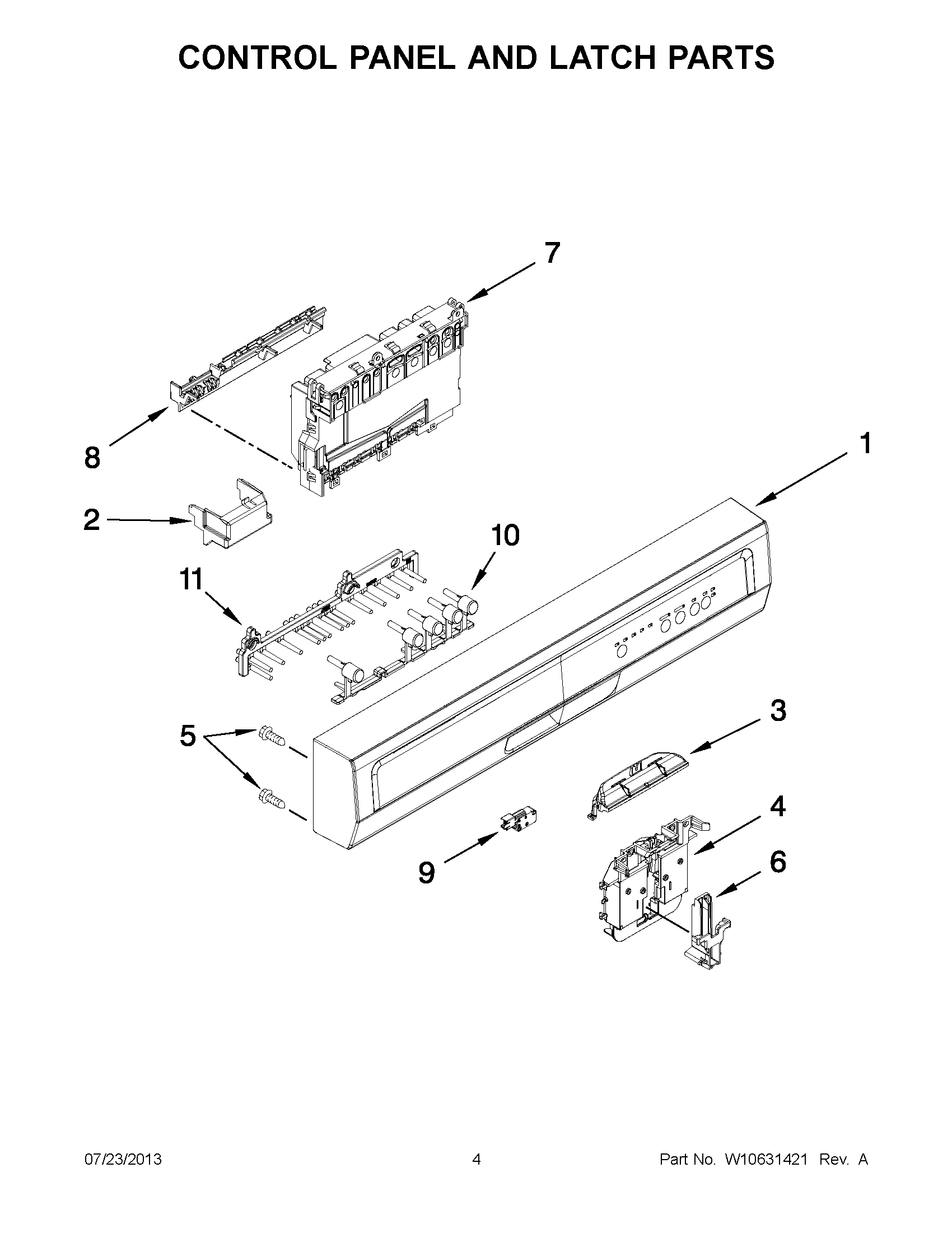

WDF510PAYDA 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (WHITE)
1	WPW10380381 Whirlpool Dishwasher Console
2	W10783730 Whirlpool Dishwasher Connector
3	W11684608 Whirlpool Handle Assembly
3	W10127605 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524471 Whirlpool Dishwasher Actuator
7	W10804121 Whirlpool Dishwasher Electronic Control Board
8	WPW10372484 Whirlpool Dishwasher Brace
9	WPW10274880 Whirlpool Switch
10	W10854044 Whirlpool Dishwasher Button
11	W10913666 Whirlpool Dishwasher Guide
