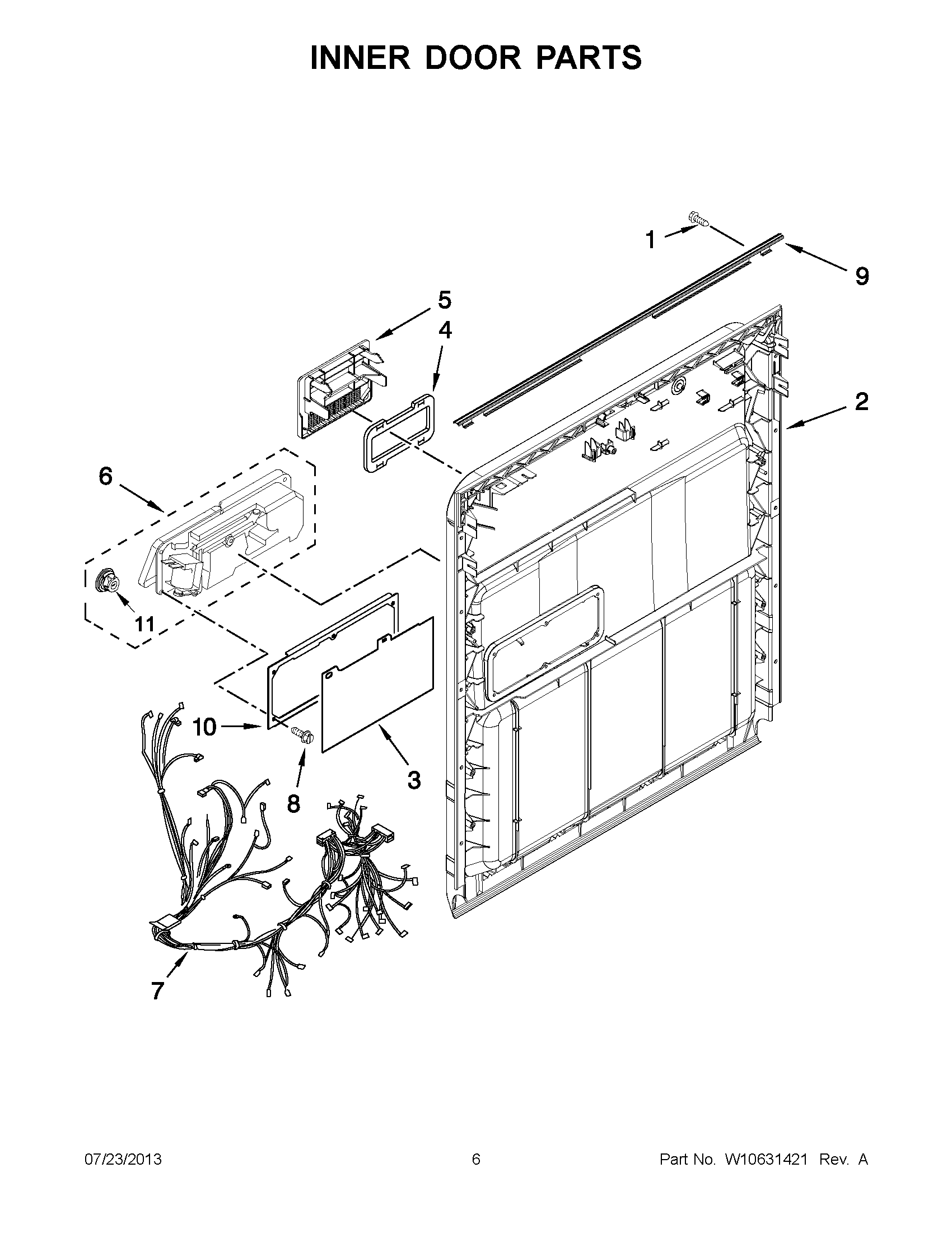

WDF510PAYDA 03 – INNER DOOR PARTS

WDF510PAYDA 03 – INNER DOOR PARTS

Written by

in

WDF510PAYDA 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10254546 Whirlpool Dishwasher Inner Door
3WPW10482094 Whirlpool Dishwasher Cover
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10605015 Whirlpool Dishwasher Dispenser
7W10837663 Whirlpool Dishwasher Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WPW10524911 Whirlpool Dishwasher Cap
