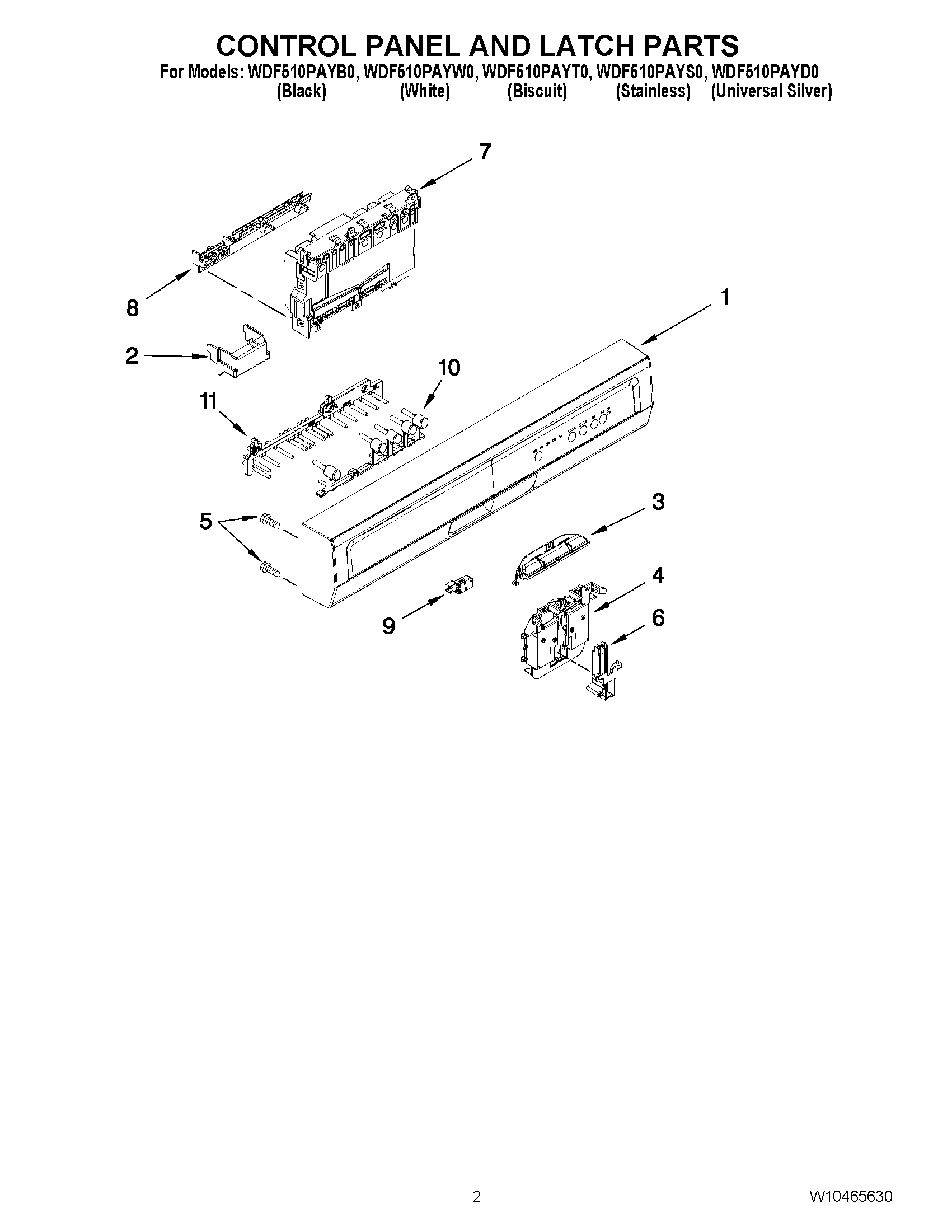

WDF510PAYS0 02 – CONTROL PANEL AND LATCH PARTS

WDF510PAYS0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF510PAYS0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10380381 Whirlpool Dishwasher Console
1CONSOLE ASSEMBLY (WHITE)
1W10380383 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W10127605 Whirlpool Dishwasher Handle
3W11684608 Whirlpool Handle Assembly
4BOLT-LATCH
5WPW10348413 Whirlpool Dishwasher Screw
6WP8524471 Whirlpool Dishwasher Actuator
7W10804121 Whirlpool Dishwasher Electronic Control Board
8WPW10372484 Whirlpool Dishwasher Brace
9WPW10274880 Whirlpool Switch
10W10854044 Whirlpool Dishwasher Button
11W10913666 Whirlpool Dishwasher Guide
