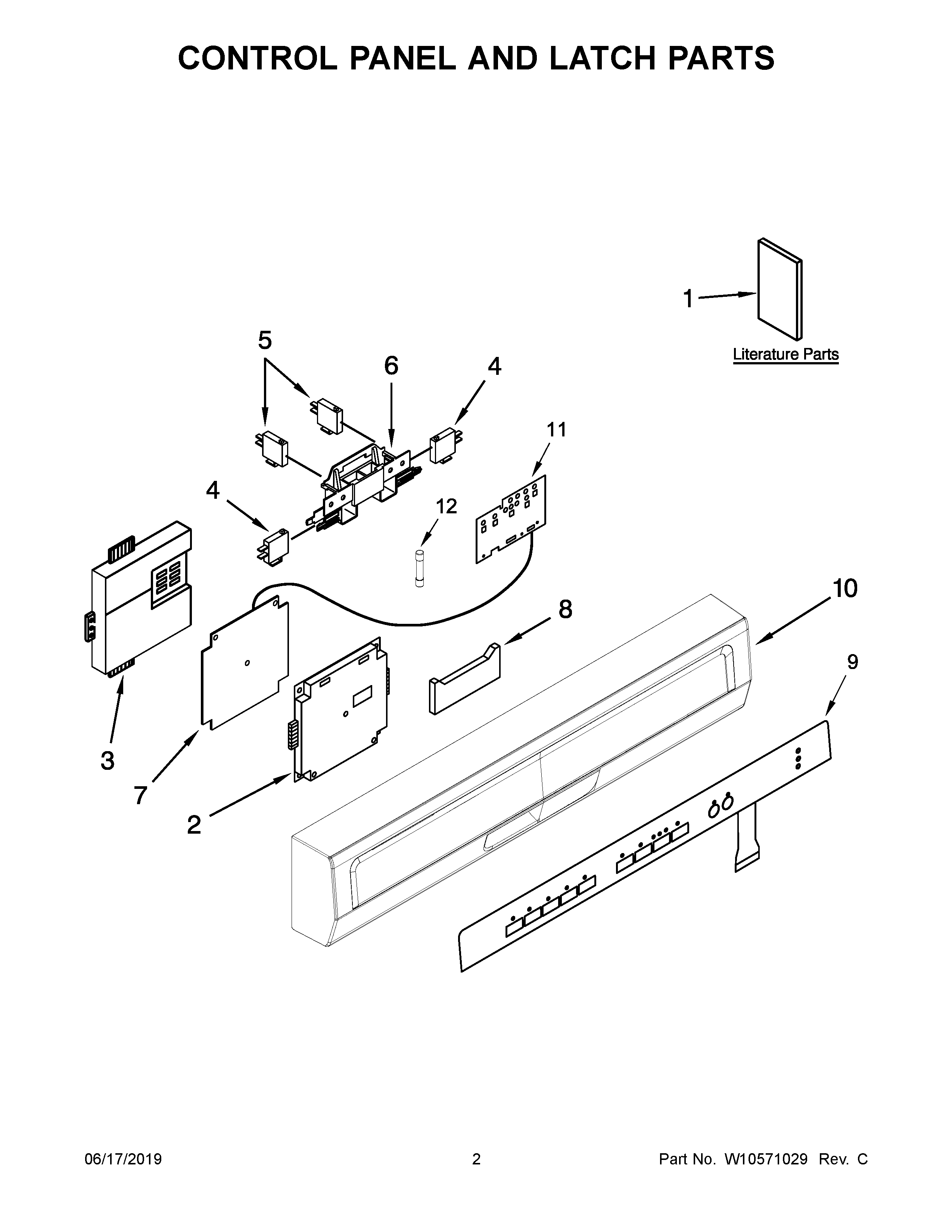

WDF518SAAS0 02 – CONTROL PANEL AND LATCH PARTS
Written by
in
WDF518SAAS0 02 – CONTROL PANEL AND LATCH PARTS
Products
Position
Product
1B
USE & CARE GUIDE, SPANISH
1
INSTALLATION INSTRUCTIONS
1A
USE & CARE GUIDE,ENGLISH/FRENCH
2
COVER, CONTROL MAIN
3
W10567584 Whirlpool Dishwasher Cover
4
W10859566 Whirlpool Dishwasher Switch
5
WPW10567586 Whirlpool Dishwasher Switch
5A
W10567587 Whirlpool Dishwasher Switch
6
BOLT, LATCH
7
CONTROL, ELECTRONIC MAIN
8
HANDLE
9B
OVERLAY (STAINLESS)
9
OVERLAY (BLACK)
9A
WPW10567681 Whirlpool Dishwasher Overlay
10
WPW10567678 Whirlpool Dishwasher Console
10A
WPW10567676 Whirlpool Dishwasher Console
10B
CONSOLE (STAINLESS)
11
WPW10567589 Whirlpool Dishwasher Electronic Control Board + Core
12
W10487251 Whirlpool Dishwasher Fuse
←
