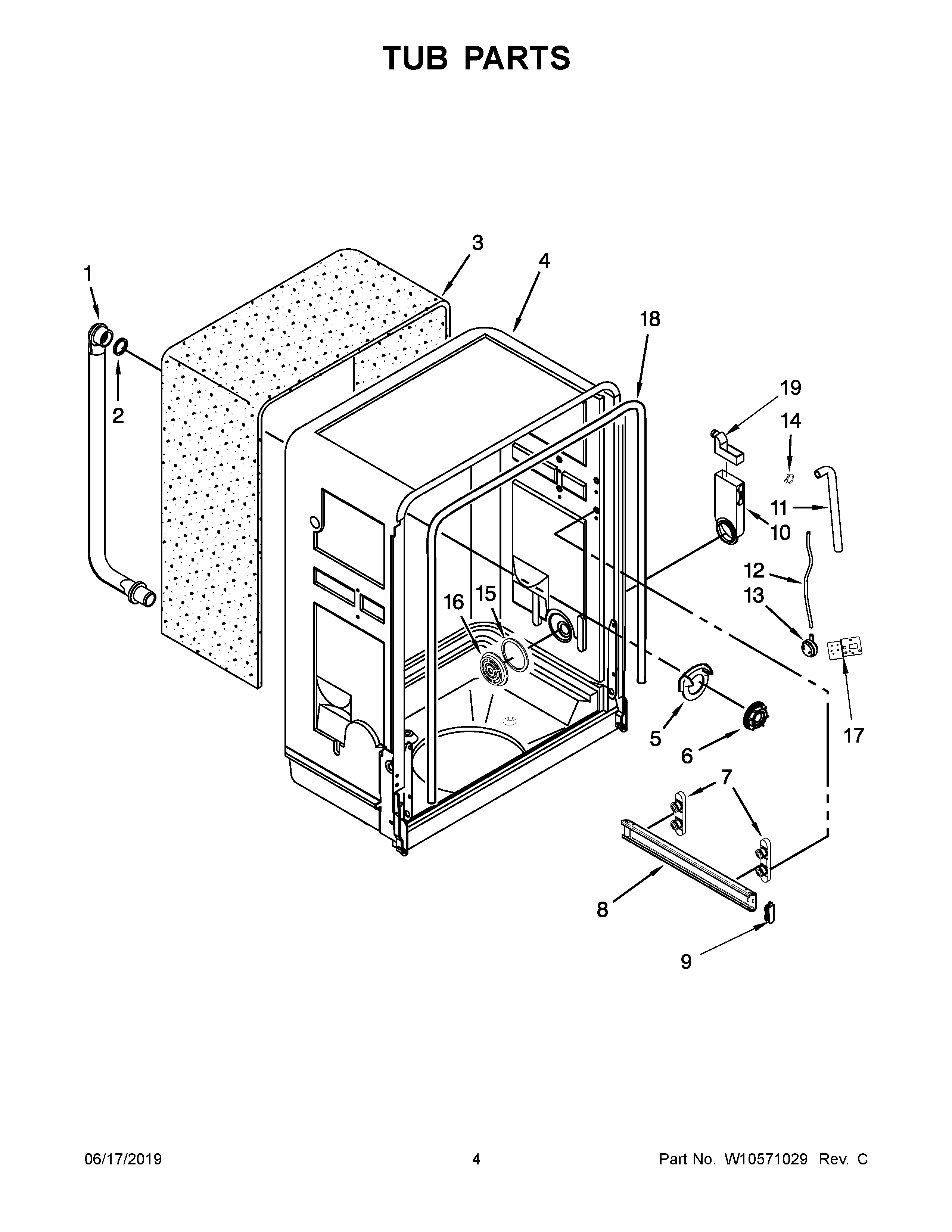

WDF518SAAS0 03 – TUB PARTS

Products

Position	Product
1	W10567638 Whirlpool Dishwasher Tube
2	W10567637 Whirlpool Dishwasher Gasket
3	WPW10567698 Whirlpool Shield
4	TUB
5	W10567636 Whirlpool Dishwasher Guide
6	W10567635 Whirlpool Dishwasher Tube Nut
7	WHEEL, TUB
8	W10567559 Whirlpool Dishwasher Track
9	W11165171 Whirlpool Dishwasher Stop
10	W10567624 Whirlpool Dishwasher Water Inlet
11	W10567623 Whirlpool Dishwasher Hose
12	W10567668 Whirlpool Dishwasher Fill Hose
13	W10567650 Whirlpool Dishwasher Water Level Switch
14	W10567621 Whirlpool Dishwasher Clamp
15	GASKET, O-RING
16	W10567660 Whirlpool Inlet Bezel
17	W10567669 Whirlpool Support Assembly
18	GASKET, TUB
19	W10567622 Whirlpool Dishwasher Inlet Cover
