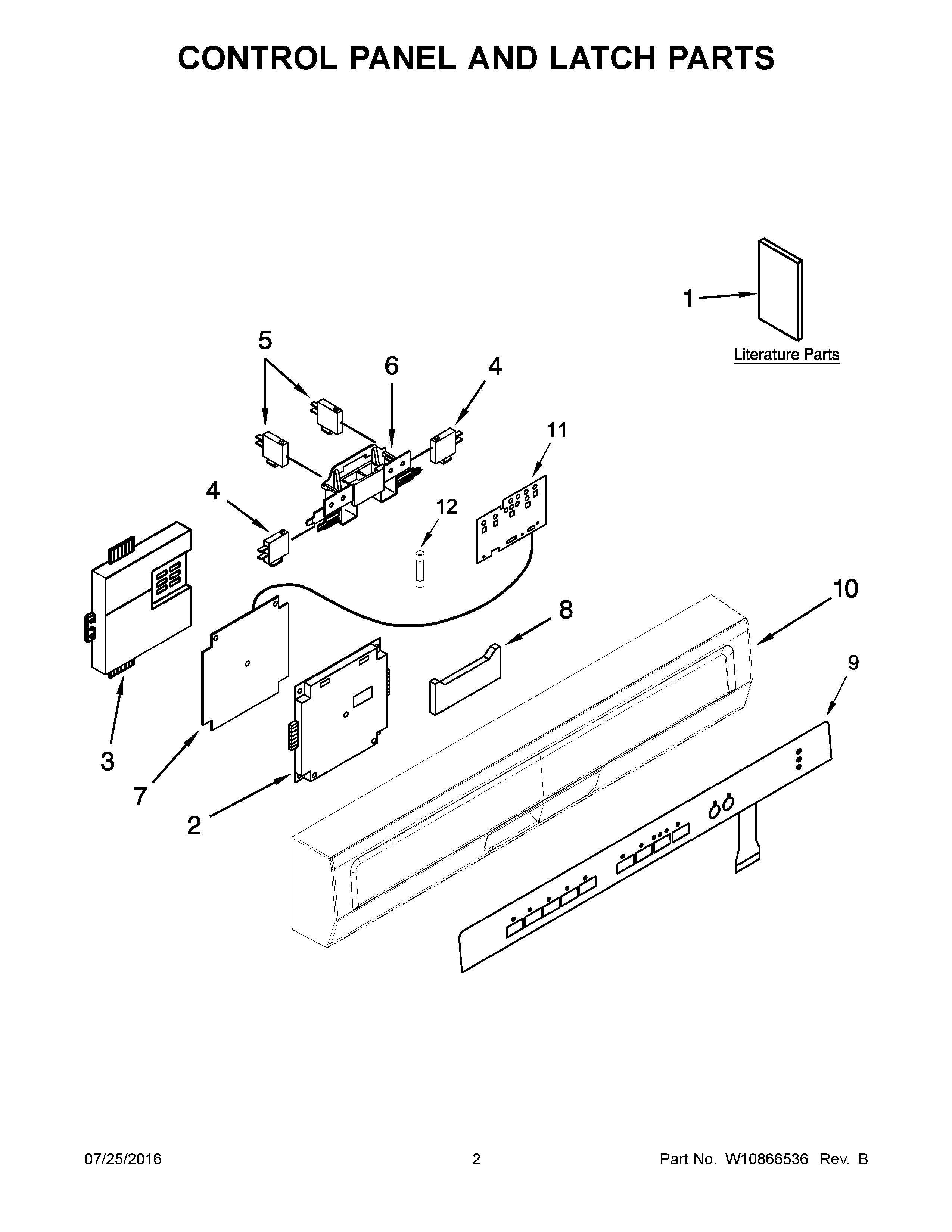

WDF518SAFM0 02 – CONTROL PANEL AND LATCH PARTS

WDF518SAFM0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF518SAFM0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W10567674 Whirlpool Cover Assembly
3W10567584 Whirlpool Dishwasher Cover
4W10859566 Whirlpool Dishwasher Switch
5WPW10567586 Whirlpool Dishwasher Switch
5AW10567587 Whirlpool Dishwasher Switch
6BOLT, LATCH
7CONTROL, ELECTRONIC
8HANDLE
9OVERLAY (WHITE)
9AW10869128 Whirlpool Dishwasher Overlay
9BW10869129 Whirlpool Dishwasher Overlay
10BCONSOLE (STAINLESS)
10WPW10567678 Whirlpool Dishwasher Console
10AWPW10567676 Whirlpool Dishwasher Console
11W10875017-includeCORE Whirlpool W10875017 Dishwasher Electronic Control Board + Core
12W10487251 Whirlpool Dishwasher Fuse
