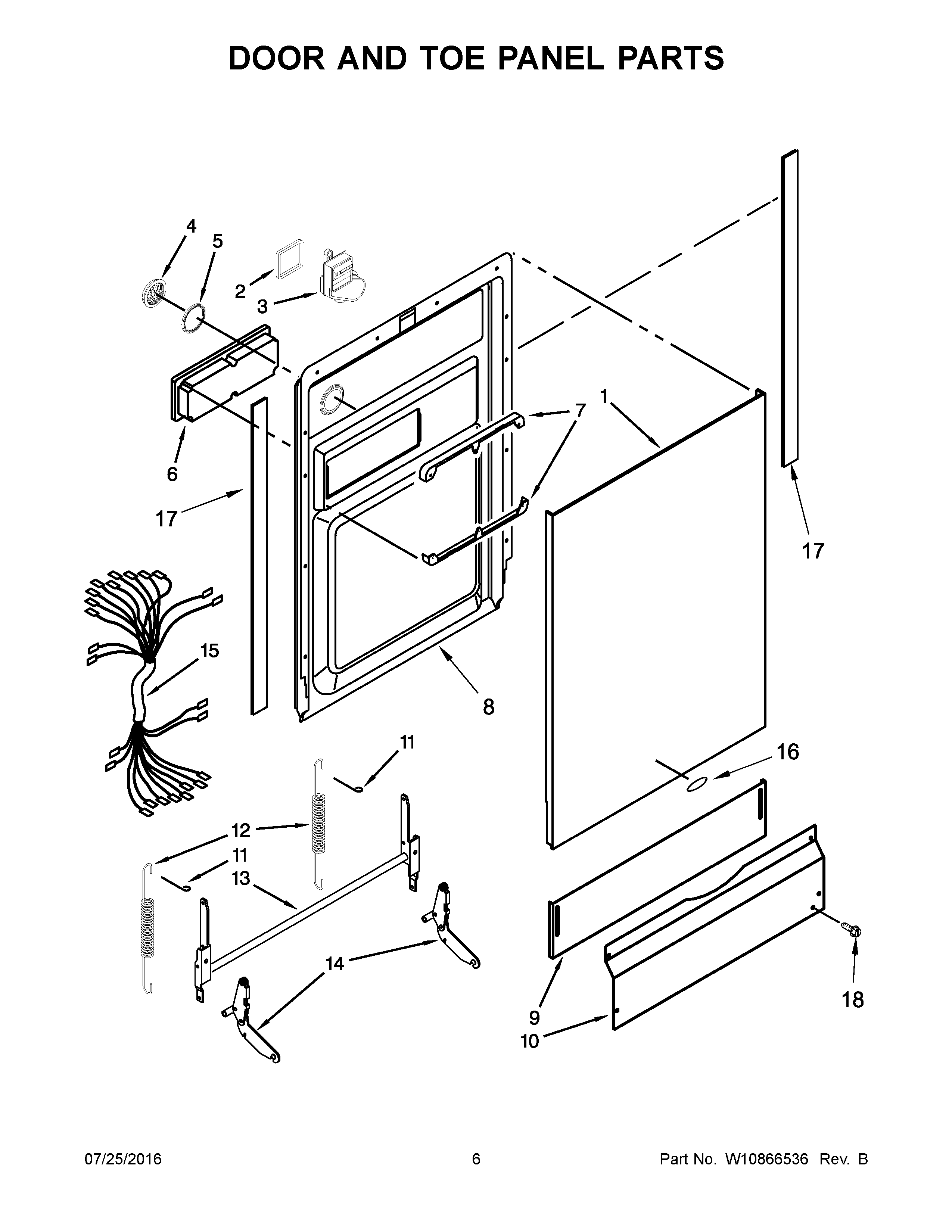

WDF518SAFM0 04 – DOOR AND TOE PANEL PARTS

WDF518SAFM0 04 – DOOR AND TOE PANEL PARTS

Written by

in

WDF518SAFM0 04 – DOOR AND TOE PANEL PARTS

Products

PositionProduct
1BWPW10567690 Whirlpool Dishwasher Panel
1WPW10567689 Whirlpool Panel
1AWPW10567688 Whirlpool Dishwasher Control Panel
2GASKET, VENT
3VENT
4W10567579 Whirlpool Dishwasher Deflector
5W10567637 Whirlpool Dishwasher Gasket
6DISPENSER
7W10567606 Whirlpool Dishwasher Dispense Bracket
8WPW10567697 Whirlpool Dishwasher Inner Door Assembly
9WPW10567713 Whirlpool Dishwasher Control Panel
9APANEL, TOE (WHITE)
10AWPW10567714 Whirlpool Dishwasher Toe Panel
10PANEL, TOE (BLACK)
11W10567596 Whirlpool Dishwasher Pin
12W10567691 Whirlpool Dishwasher Spring
13W10567692 Whirlpool Hinge Bracket
14AW10567694 Whirlpool Door Hinge
14W10567695 Whirlpool Dishwasher Door Hinge
15W10567696 Whirlpool Wire Harness
16AW10567593 Whirlpool Dishwasher Nameplate
16WPW10393264 Whirlpool Refrigerator Nameplate
17GUARD, INNER DOOR (BLACK)
17AW10567608 Whirlpool Dishwasher Seal
18ASCREW (WHITE)
18W10517912 Whirlpool Dishwasher Screw
