WDF518SAHM1 06 – PUMP AND MOTOR PARTS

WDF518SAHM1 06 – PUMP AND MOTOR PARTS

Written by

in

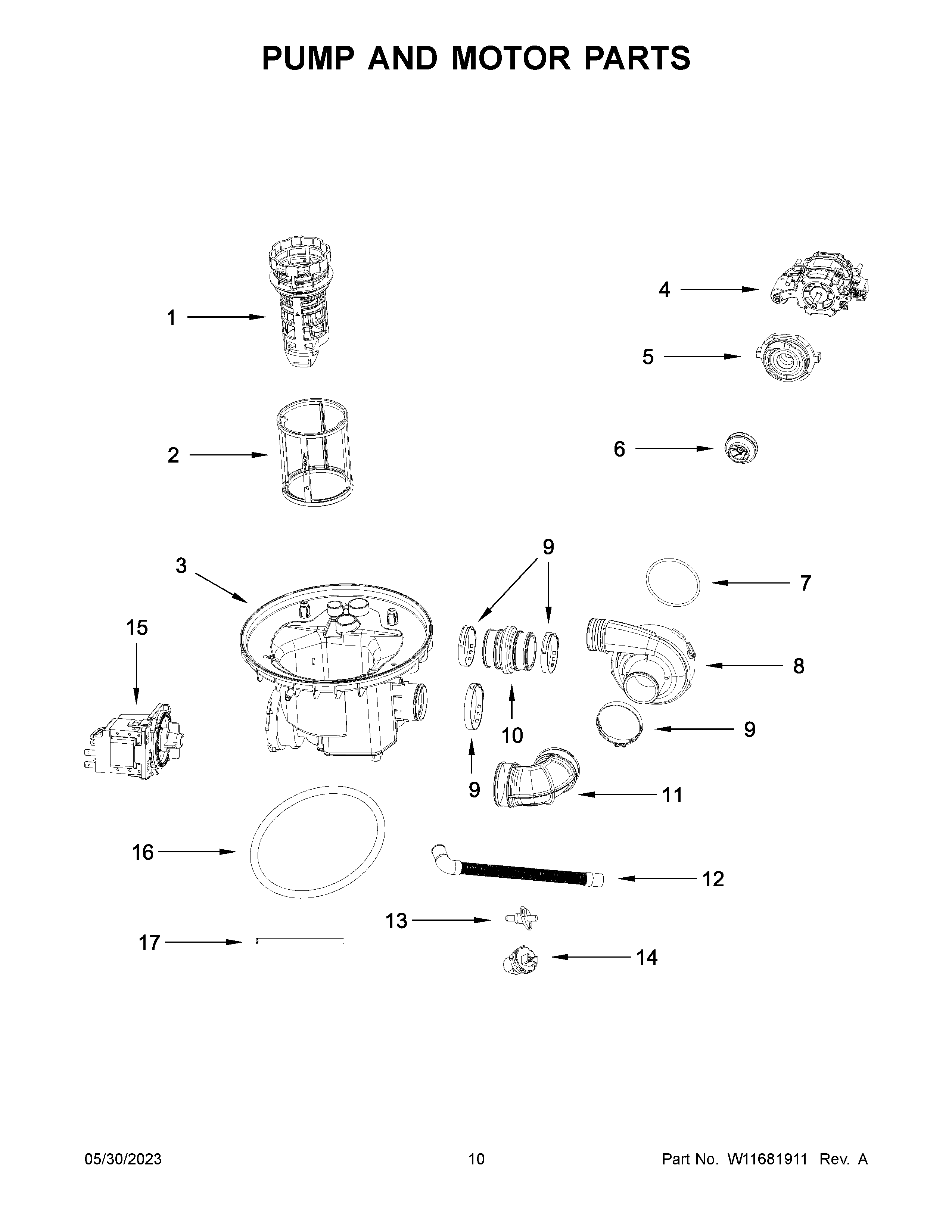

WDF518SAHM1 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
1FILTER HANDLE
2W11226876 Whirlpool Microfilter
3W11226878 Whirlpool Dishwasher Sump Assembly
4W11230164 Whirlpool Dishwasher Pump Motor
5W11226885 Whirlpool Dishwasher Pump and Motor
6W11226886 Whirlpool Dishwasher Impeller
7W11226887 Whirlpool Dishwasher Gasket
8W11226889 Whirlpool Dishwasher Housing
9W10783615 Whirlpool Dishwasher Clamp
10W11226893 Whirlpool Dishwasher Hose
11W11226894 Whirlpool Dishwasher Tube
12W11230166 Whirlpool Dishwasher Drain Hose
13W11689831 Whirlpool Sensor
14W11226898 Whirlpool Dishwasher Sensor
15W11611440 Whirlpool Dishwasher Drain Pump
16W11226899 Whirlpool Gasket
17W11226900 Whirlpool Dishwasher Tube
