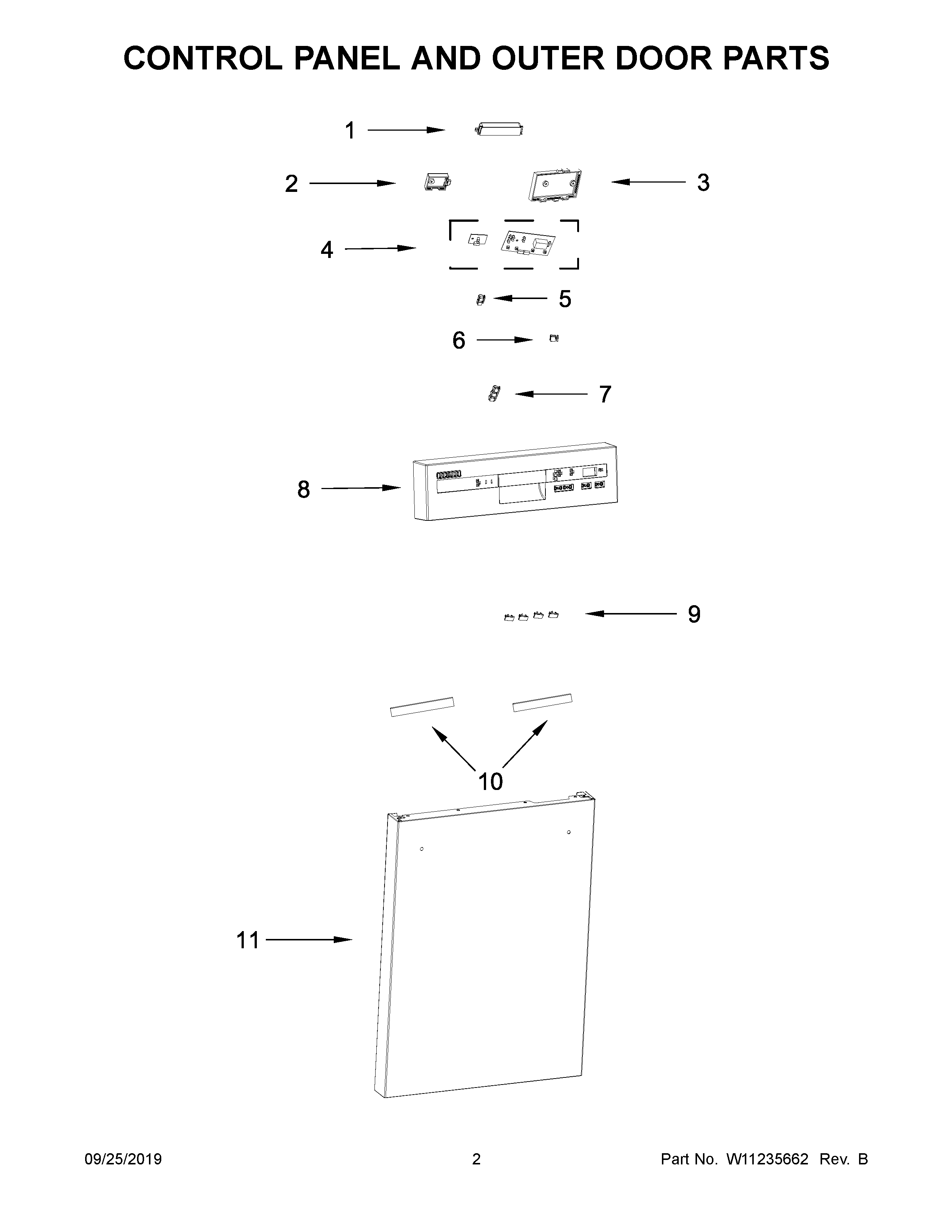

WDF518SAHW0 02 – CONTROL PANEL AND OUTER DOOR PARTS

WDF518SAHW0 02 – CONTROL PANEL AND OUTER DOOR PARTS

Written by

in

WDF518SAHW0 02 – CONTROL PANEL AND OUTER DOOR PARTS

Products

PositionProduct
1HANDLE, POCKET (BLACK)
1AHANDLE, POCKET (WHITE)
1BHANDLE, POCKET (STAINLESS)
2COVER, CONTROL BOARD
3COVER, CONTROL BOARD
4W11484625-includeCORE Whirlpool W11484625 Dishwasher Electronic Control Board
5LIGHT GUIDE, DOUBLE
6W11230104 Whirlpool Display Lens
7LIGHT GUIDE, TRIPLE
8BW11230172 Whirlpool Dishwasher Control Panel
8AW11230183 Whirlpool Dishwasher Control Panel
8W11230107 Whirlpool Dishwasher Console
9KBUTTON (START (STAINLESS))
9JBUTTON (START (WHITE))
9IW11230113 Whirlpool Button
9HBUTTON (DELAY (STAINLESS))
9GBUTTON (DELAY (WHITE))
9FBUTTON (DELAY (BLACK))
9EBUTTON (OPTIONS (STAINLESS))
9DBUTTON (OPTIONS (WHITE))
9CBUTTON (OPTIONS (BLACK))
9BBUTTON (CYCLES (STAINLESS))
9ABUTTON (CYCLES (WHITE))
9W11230109 Whirlpool Button
10CCONSOLE OVERLAY (RIGHT HAND (WHITE))
10BCONSOLE OVERLAY (LEFT HAND (WHITE))
10ACONSOLE OVERLAY (RIGHT HAND (BLACK))
10CONSOLE OVERLAY (LEFT HAND (BLACK))
11W11230128 Whirlpool Dishwasher Panel
11AW11230191 Whirlpool Panel
11BW11449077 Whirlpool Dishwasher Panel
