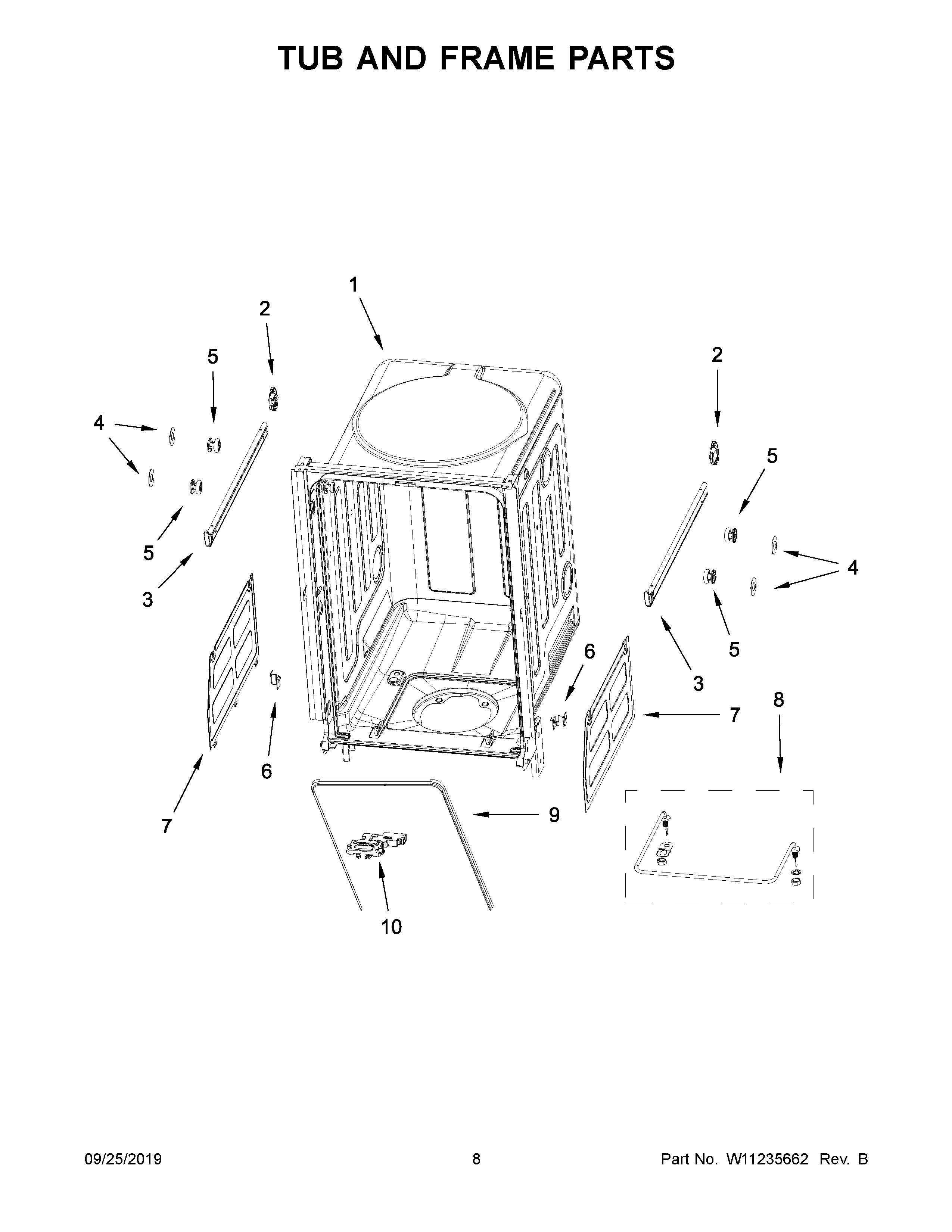

WDF518SAHW0 05 – TUB AND FRAME PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11226273 Whirlpool Dishwasher Stop
3W11226276 Whirlpool Track
3AW11226277 Whirlpool Track Assembly
4SUPPORTING HOLDER, BASKET GUIDER
5W11226280 Whirlpool Tub Wheel
6W11662338 Whirlpool Bracket Assembly
7W11226289 Whirlpool Dishwasher Brace
7AW11226291 Whirlpool Dishwasher Brace
8W11230139 Whirlpool Dishwasher Heater
9W11230140 Whirlpool Dishwasher Gasket
10W11226294 Whirlpool Dishwasher Switch
11W11550388 Whirlpool Terminal Nut
