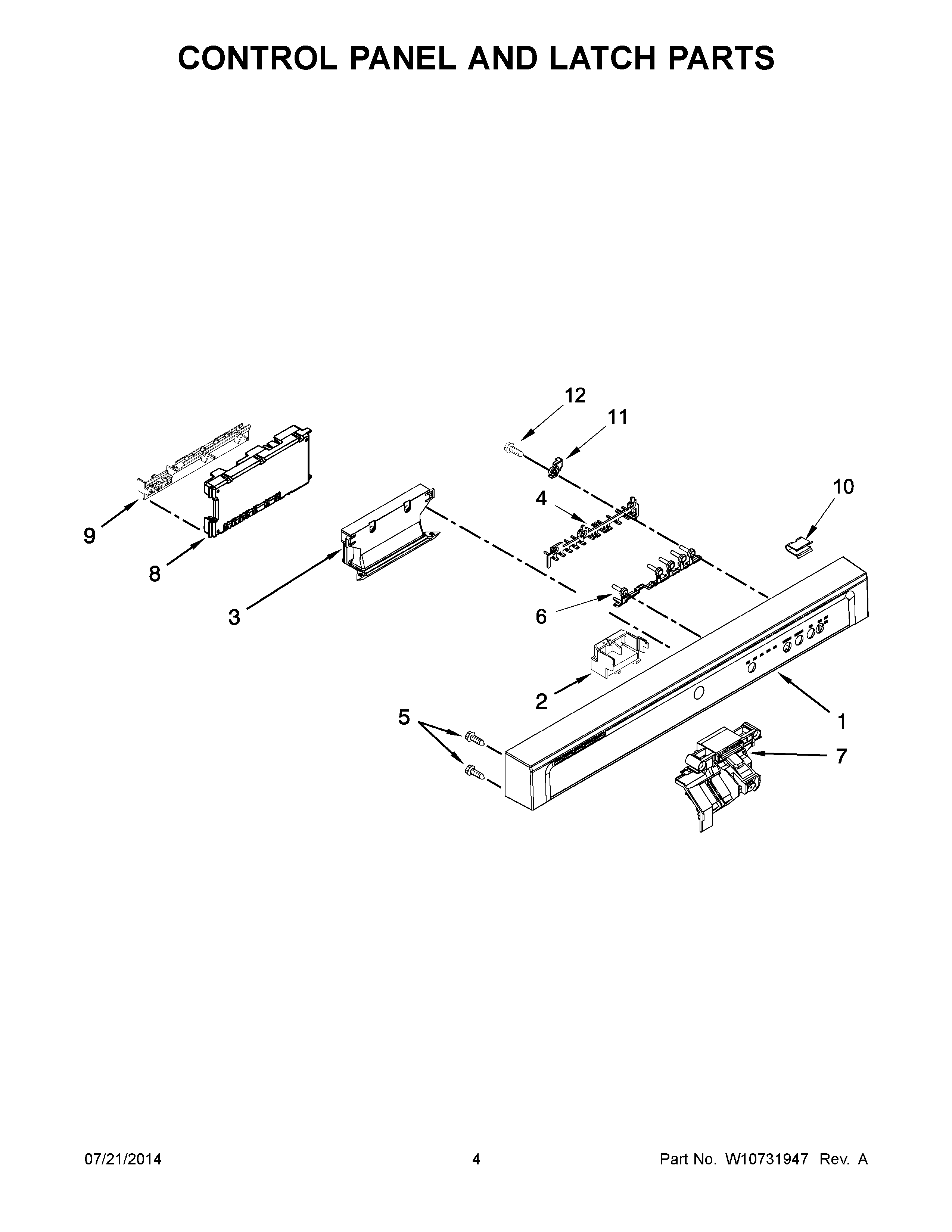

WDF520PADB0 03 – CONTROL PANEL AND LATCH PARTS

WDF520PADB0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF520PADB0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10815819 Whirlpool Dishwasher Console
1BWPW10733627 Whirlpool Dishwasher Console
1AW10836798 Whirlpool Dishwasher Console
2W10783730 Whirlpool Dishwasher Connector
3W11568629 Whirlpool Dishwasher Handle
4W10839423 Whirlpool Dishwasher Guide
5W11232015 Whirlpool Dishwasher Screw
6W10849355 Whirlpool Dishwasher Button
7WPW10653840 Whirlpool Door Latch
8W10804115 Whirlpool Dishwasher Electronic Control Board
9WPW10372484 Whirlpool Dishwasher Brace
10W10815836 Whirlpool Dishwasher Clip
11W10629551 Whirlpool Dishwasher Clip
12W11700520 Whirlpool Screw
