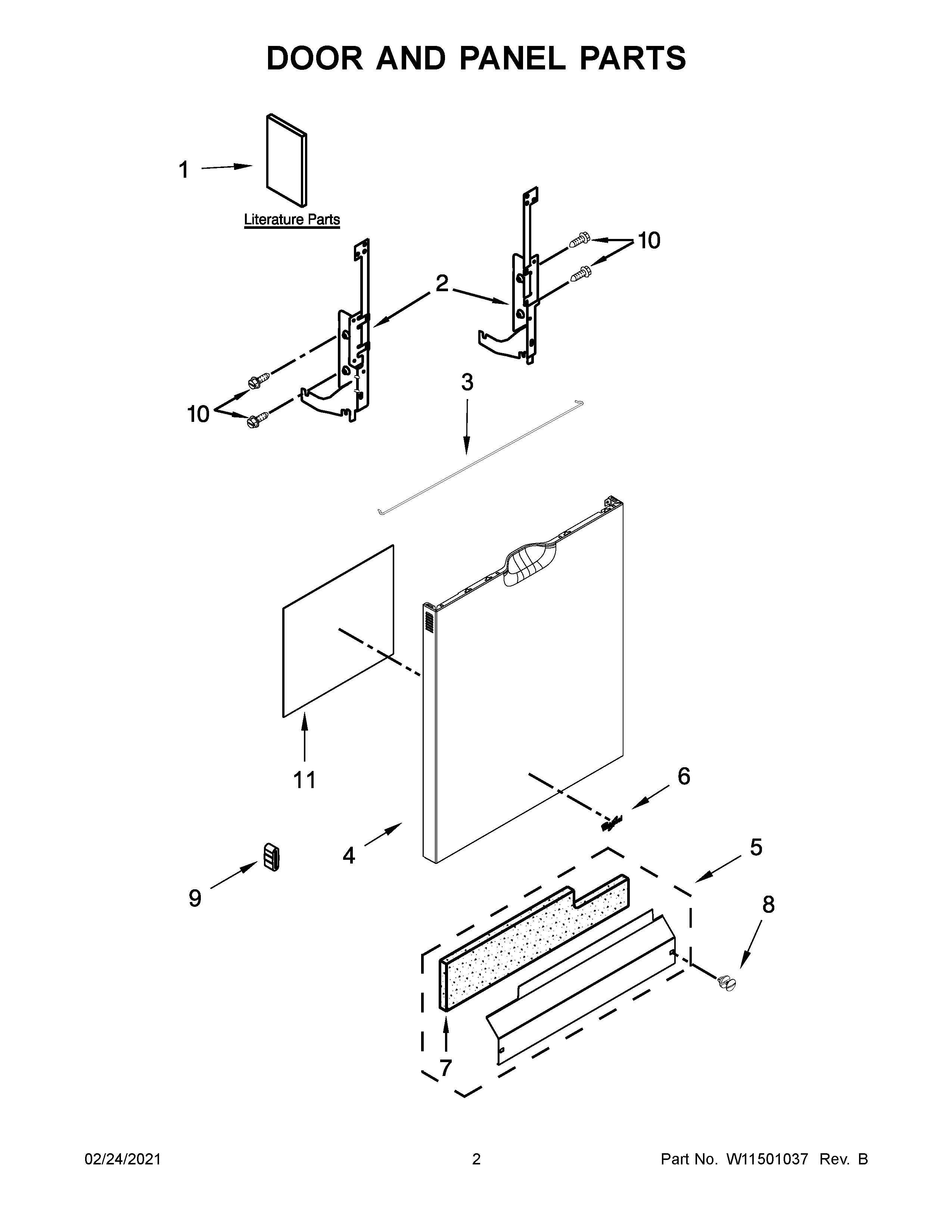

WDF520PADB8 02 – DOOR AND PANEL PARTS

WDF520PADB8 02 – DOOR AND PANEL PARTS

Written by

in

WDF520PADB8 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1ENERGY GUIDE
1AOWNERS MANUAL
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BWPW10629473 Whirlpool Dishwasher Panel
4AW10846351 Whirlpool Dishwasher Panel
4W10802703 Whirlpool Dishwasher Door Panel
5W10827631 Whirlpool Toe Panel
6W11178521 Whirlpool Dishwasher Nameplate
7SHIELD
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WP8268961 Whirlpool Friction Pad
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
