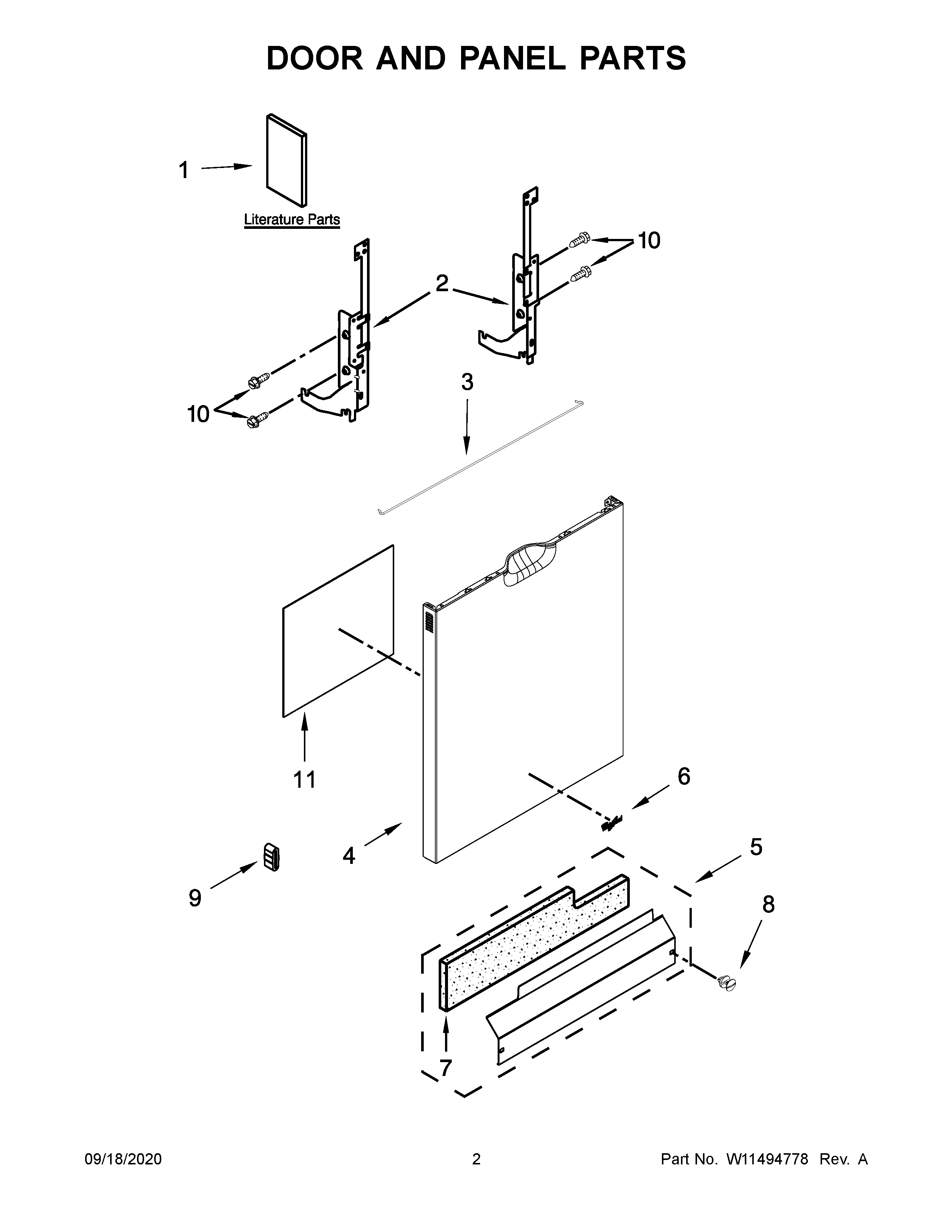

WDF520PADB9 02 – DOOR AND PANEL PARTS
Written by
in
WDF520PADB9 02 – DOOR AND PANEL PARTS
Products
Position
Product
1B
TECH SHEET
1
ENERGY GUIDE
1A
OWNERS MANUAL
2A
W11613572 Whirlpool Dishwasher Door Hinge
2
W11613573 Whirlpool Door Hinge
3
W10850371 Whirlpool Dishwasher Door Brace
4B
WPW10629473 Whirlpool Dishwasher Panel
4A
W10846351 Whirlpool Dishwasher Panel
4
W10802703 Whirlpool Dishwasher Door Panel
5
W10827631 Whirlpool Toe Panel
5A
W10827632 Whirlpool Dishwasher Control Panel
6
W11178521 Whirlpool Dishwasher Nameplate
7
SHIELD
8
WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8A
WPW10503549 Whirlpool Dishwasher Retainer Clip
9
WP8268961 Whirlpool Friction Pad
10
WPW10109200 Whirlpool Screw
11
W11126003 Whirlpool Dishwasher Insulation Pad
←
