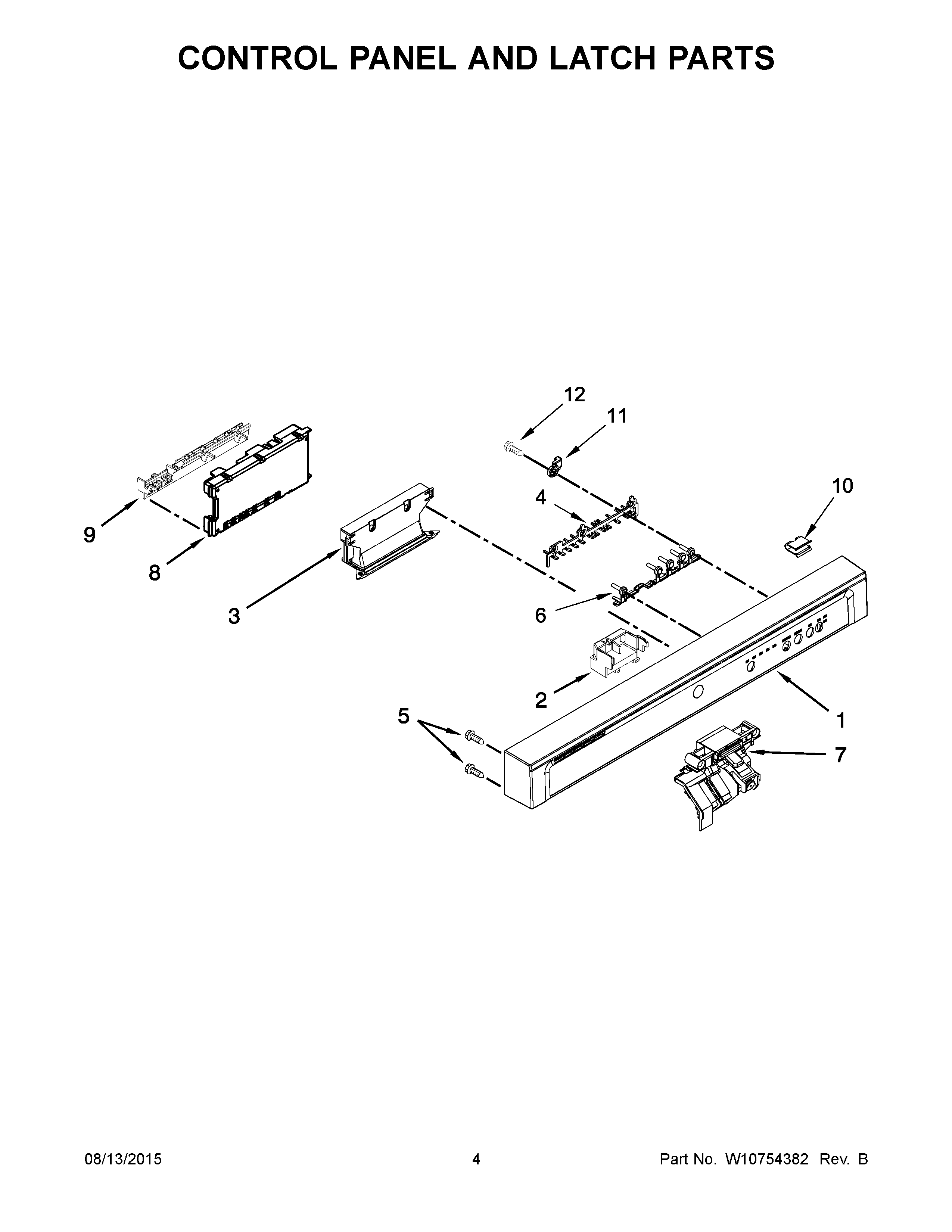

WDF520PADM3 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	W10815819 Whirlpool Dishwasher Console
1B	WPW10733627 Whirlpool Dishwasher Console
1A	W10836798 Whirlpool Dishwasher Console
2	W10783730 Whirlpool Dishwasher Connector
3	W11568629 Whirlpool Dishwasher Handle
4	W10839423 Whirlpool Dishwasher Guide
5	W11232015 Whirlpool Dishwasher Screw
6	W10849355 Whirlpool Dishwasher Button
7	WPW10653840 Whirlpool Door Latch
8	W10804115 Whirlpool Dishwasher Electronic Control Board
9	WPW10372484 Whirlpool Dishwasher Brace
10	W10815836 Whirlpool Dishwasher Clip
11	W10629551 Whirlpool Dishwasher Clip
12	W11700520 Whirlpool Screw
