WDF520PADM6 04 – INNER DOOR PARTS

WDF520PADM6 04 – INNER DOOR PARTS

Written by

in

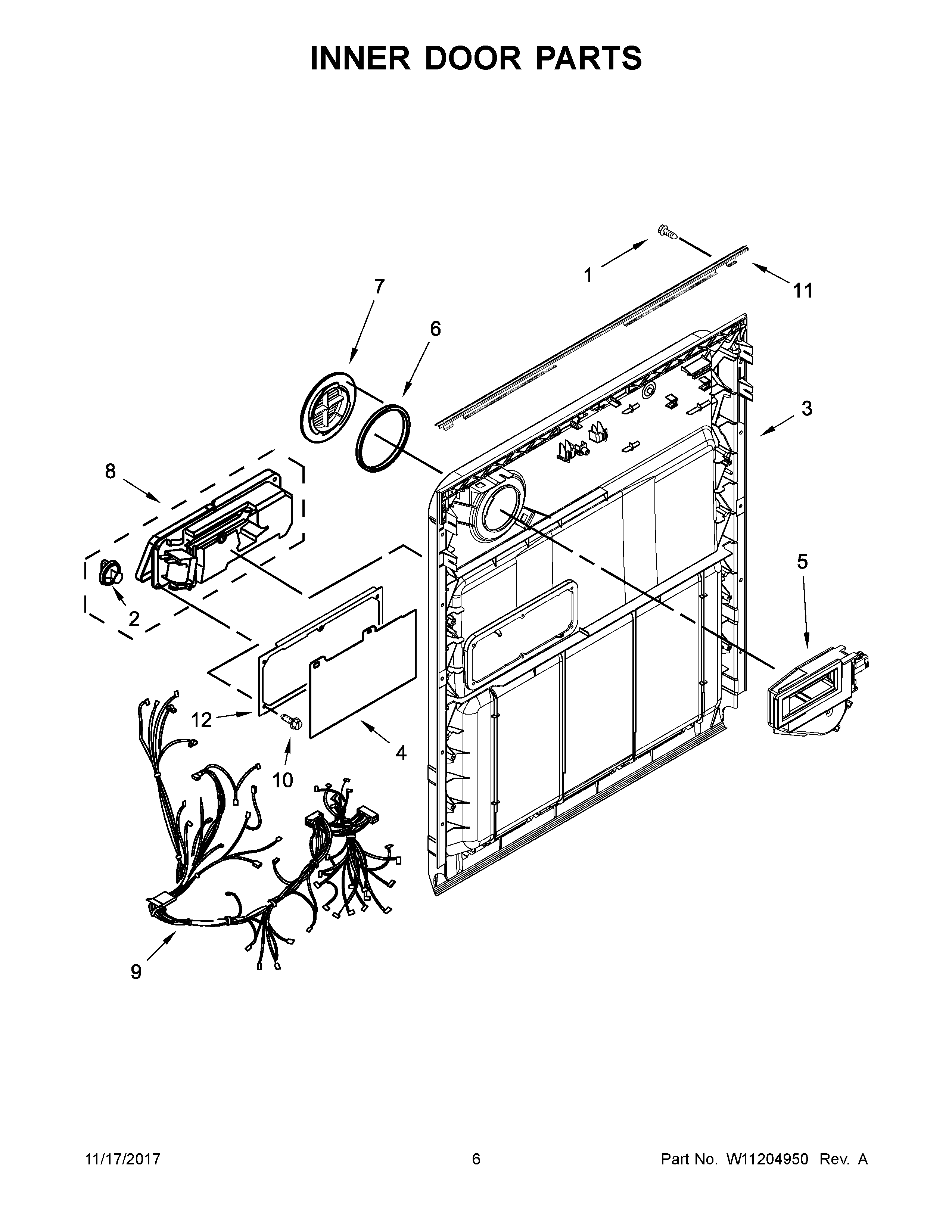

WDF520PADM6 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
3W11676896 Whirlpool Inner Door
4WPW10482094 Whirlpool Dishwasher Cover
5WPW10329609 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7W11227945 Whirlpool Dishwasher Deflector
8DISPENSER
9W11227372 Whirlpool Dishwasher Wire Harness
10WPW10177098 Whirlpool Dishwasher Screw
11W10837566 Whirlpool Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
