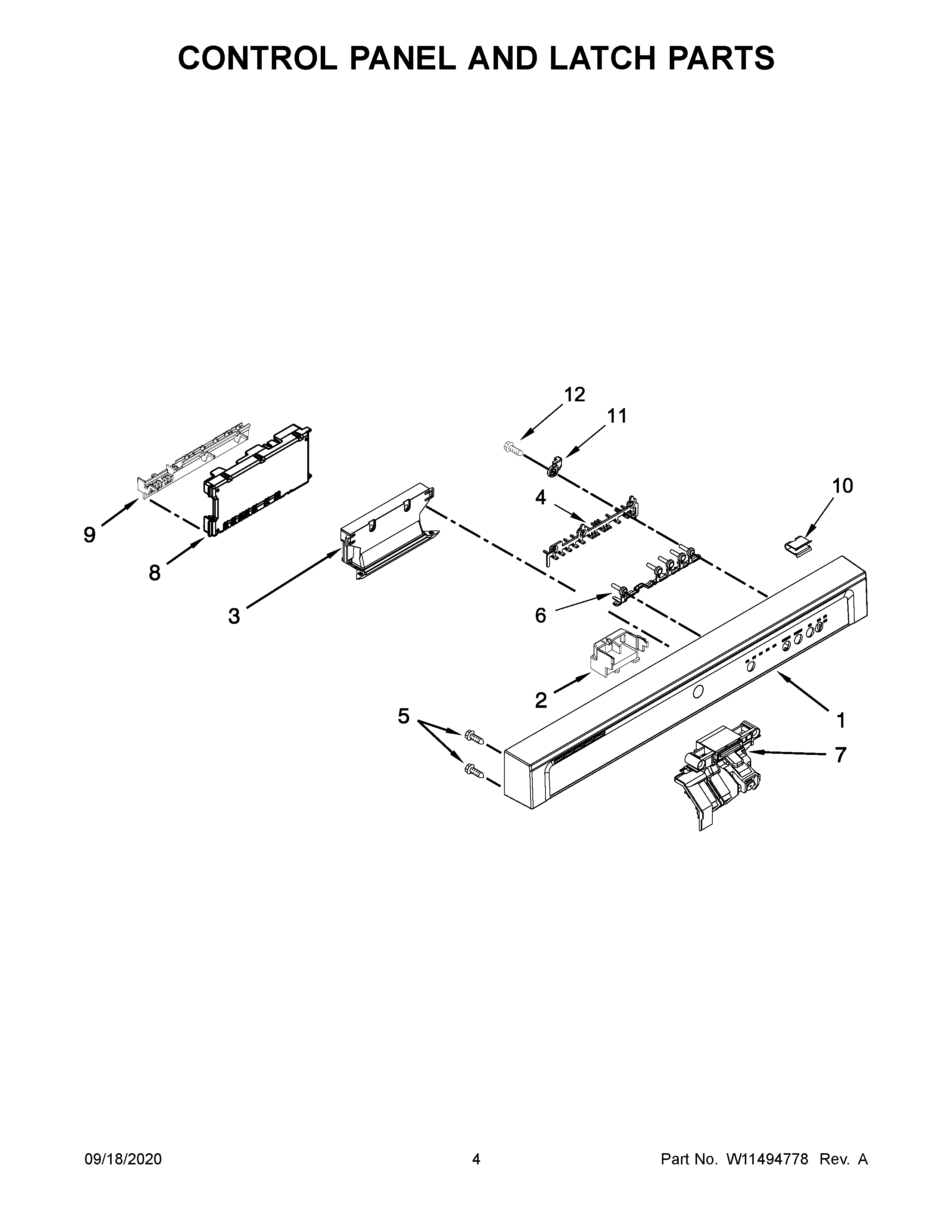

WDF520PADM9 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	W10815819 Whirlpool Dishwasher Console
1B	WPW10733627 Whirlpool Dishwasher Console
1A	W10836798 Whirlpool Dishwasher Console
3	W11568629 Whirlpool Dishwasher Handle
4	W10839423 Whirlpool Dishwasher Guide
5	W11096645 Whirlpool Screw
6	W10849355 Whirlpool Dishwasher Button
7	WPW10653840 Whirlpool Door Latch
8	W10906426-includeCORE Whirlpool W10906426 Refrigerator Electronic Control Board
9	W11305293 Whirlpool Dishwasher Electronic Control Board
10	W10815836 Whirlpool Dishwasher Clip
11	W10629551 Whirlpool Dishwasher Clip
12	W11700520 Whirlpool Screw
