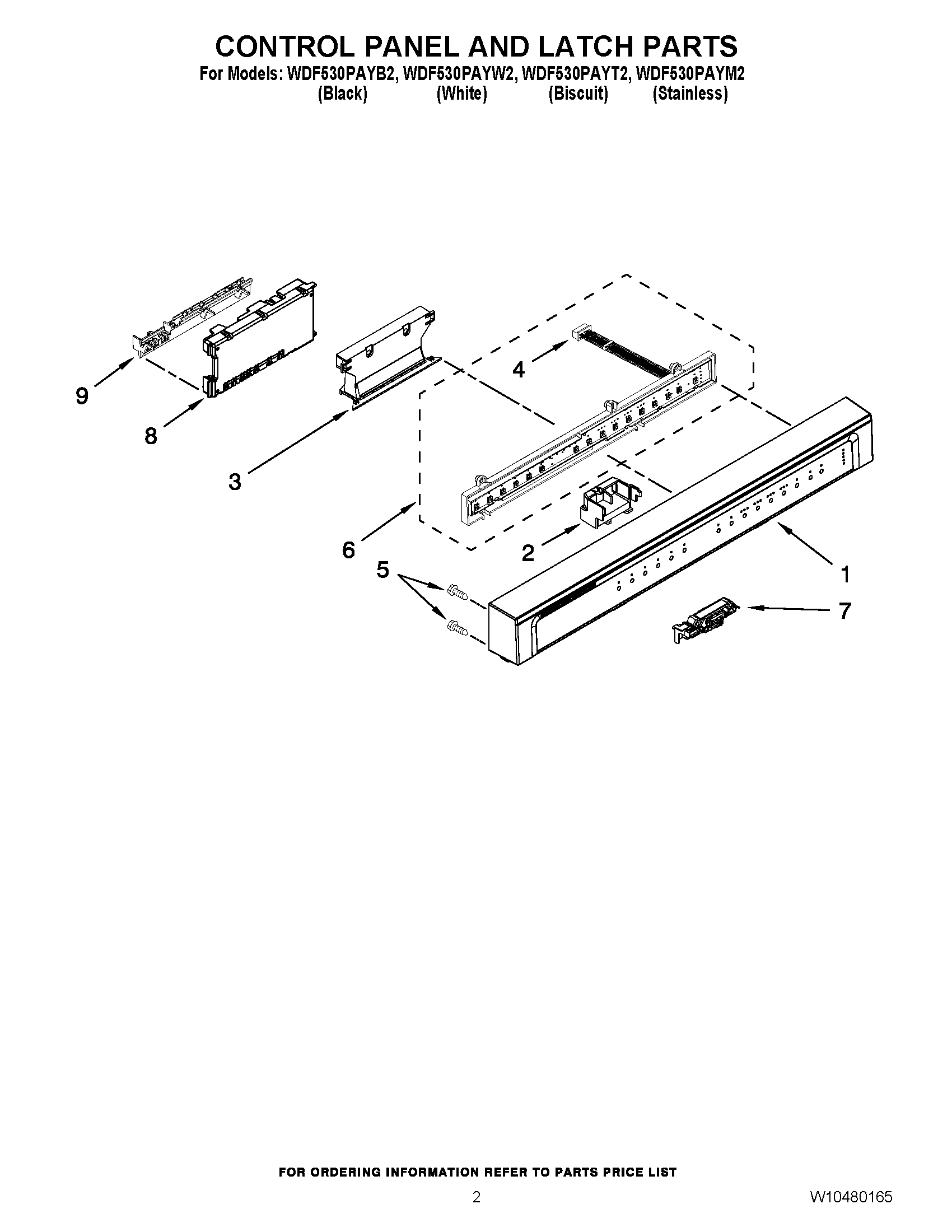

WDF530PAYB2 02 – CONTROL PANEL AND LATCH PARTS

WDF530PAYB2 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF530PAYB2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350326 Whirlpool Dishwasher Console
1WPW10350328 Whirlpool Dishwasher Console
1WPW10350325 Whirlpool Dishwasher Console
1W10350327 Whirlpool Dishwasher Console Assembly
2W10783730 Whirlpool Dishwasher Connector
3WPW10321839 Whirlpool Dishwasher Handle
4W10327246 Whirlpool Dishwasher Wire
5WPW10177098 Whirlpool Dishwasher Screw
6WPW10629167 Whirlpool Dishwasher UI Housing
7W10619006 Whirlpool Door Latch
8W10473200 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
