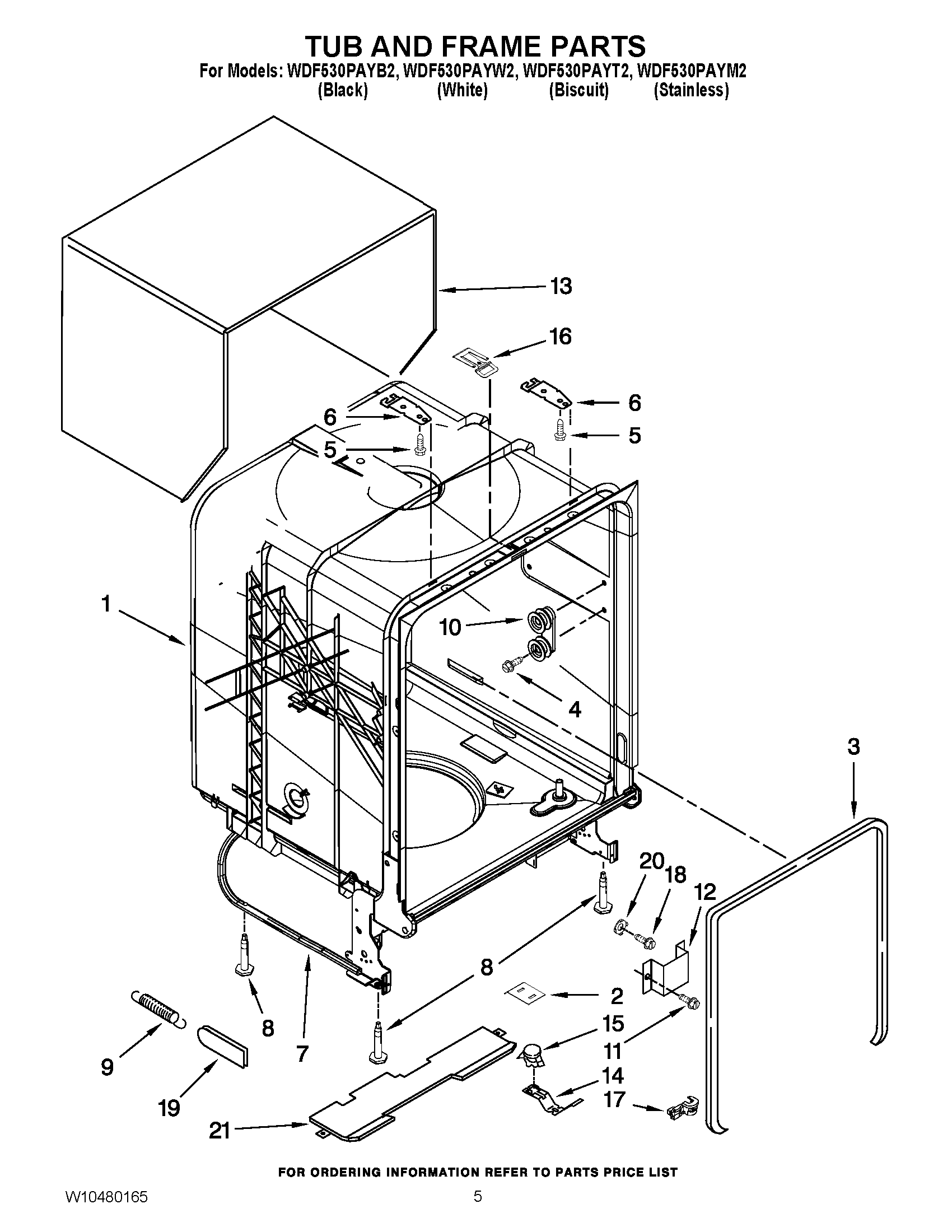

WDF530PAYB2 05 – TUB AND FRAME PARTSC

Products

Position	Product
1	W11513977 Whirlpool Dishwasher Tub
2	W10321574 Whirlpool Dishwasher Shield
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4	W10817436 Whirlpool Screw
5	WP308685 Whirlpool Microwave Screw
6	WP8269145 Whirlpool Dishwasher Mounting Bracket
7	W11680335 Whirlpool Support
8	8193716 Whirlpool Leveling Leg
9	WPW10337934 Whirlpool Spring Assembly
10	WP8575897 Whirlpool Dishwasher Tub Wheel
11	WP3400892 Whirlpool Dishwasher Screw
12	WP8268991 Whirlpool Dishwasher Cover Assembly
13	W10877094 Whirlpool Shield
14	W10539489 Whirlpool Dishwasher Bracket-Stat
15	WP661566 Whirlpool High Limit Thermostat
17	W11384788 Whirlpool Dishwasher Relief Strainer
18	WP3400014 Whirlpool Dishwasher Screw
19	WP8268990 Whirlpool Dishwasher Door Spring Bushing
20	WP3378128 Whirlpool Dishwasher Washer
21	WPW10746770 Whirlpool Insulation Pad
