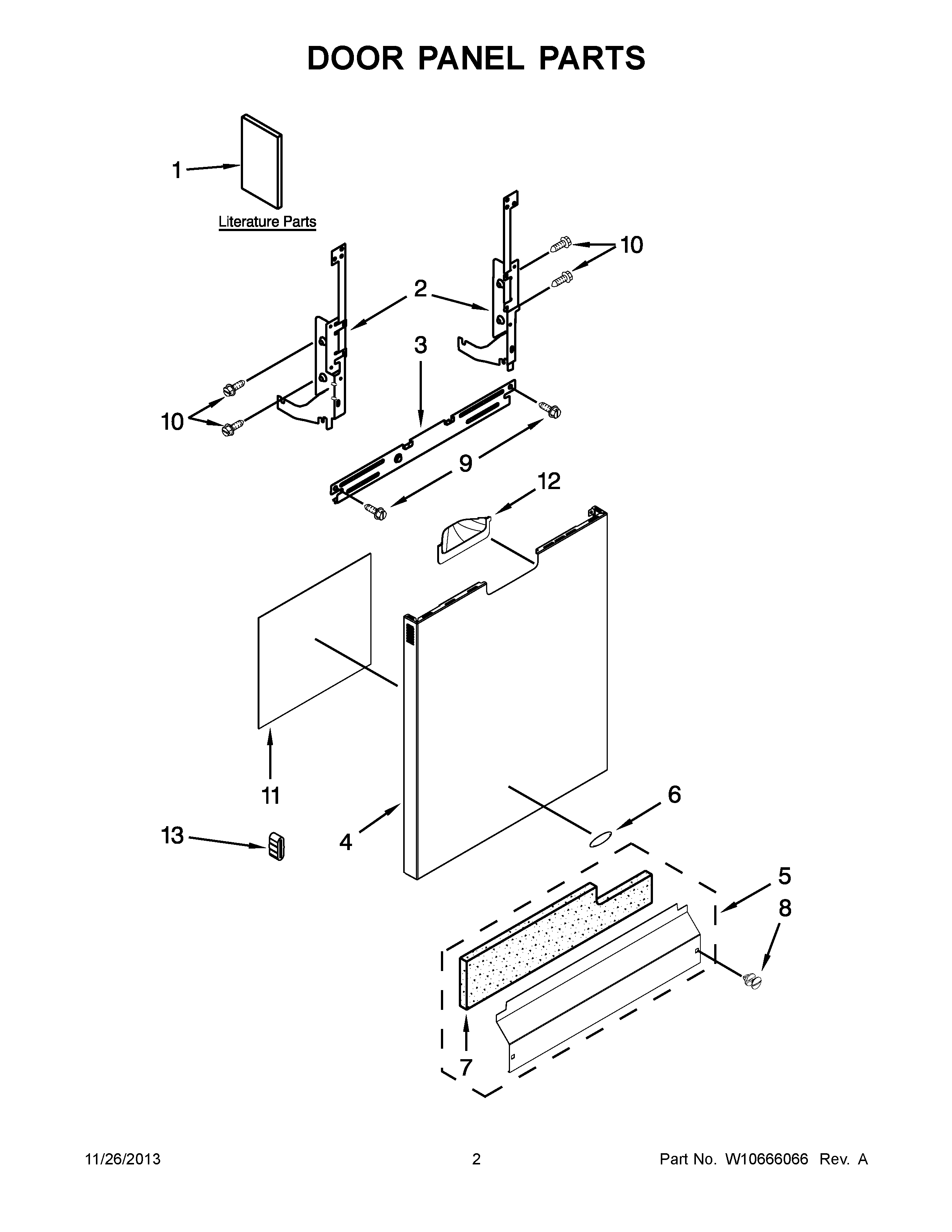

WDF530PAYB7 02 – DOOR PANEL PARTS

Products

Position	Product
1	TECH SHEET, ENGLISH
1	ENERGY GUIDE
1	USE & CARE GUIDE, ENGLISH/FRENCH
1	TECH SHEET, FRENCH
1	INSTALLATION, INSTRUCTIONS
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	WPW10505605 Whirlpool Panel
4	PANEL, FRONT (INCLUDES ITEMS 6 & 12) (BLACK)
4	PANEL, FRONT (INCLUDES ITEMS 6 & 12) (WHITE)
4	WPW10505606 Whirlpool Dishwasher Panel
5	W10827632 Whirlpool Dishwasher Control Panel
5	W10827631 Whirlpool Toe Panel
6	WPW10393264 Whirlpool Refrigerator Nameplate
6	W11178521 Whirlpool Dishwasher Nameplate
7	SHIELD
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10503550 Whirlpool Dishwasher Retainer
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	POCKET ASSEMBLY (SILVER)
12	W10485101 Whirlpool Handle
12	W10485102 Whirlpool Handle
12	W10485103 Whirlpool Handle
13	WP8268961 Whirlpool Friction Pad
