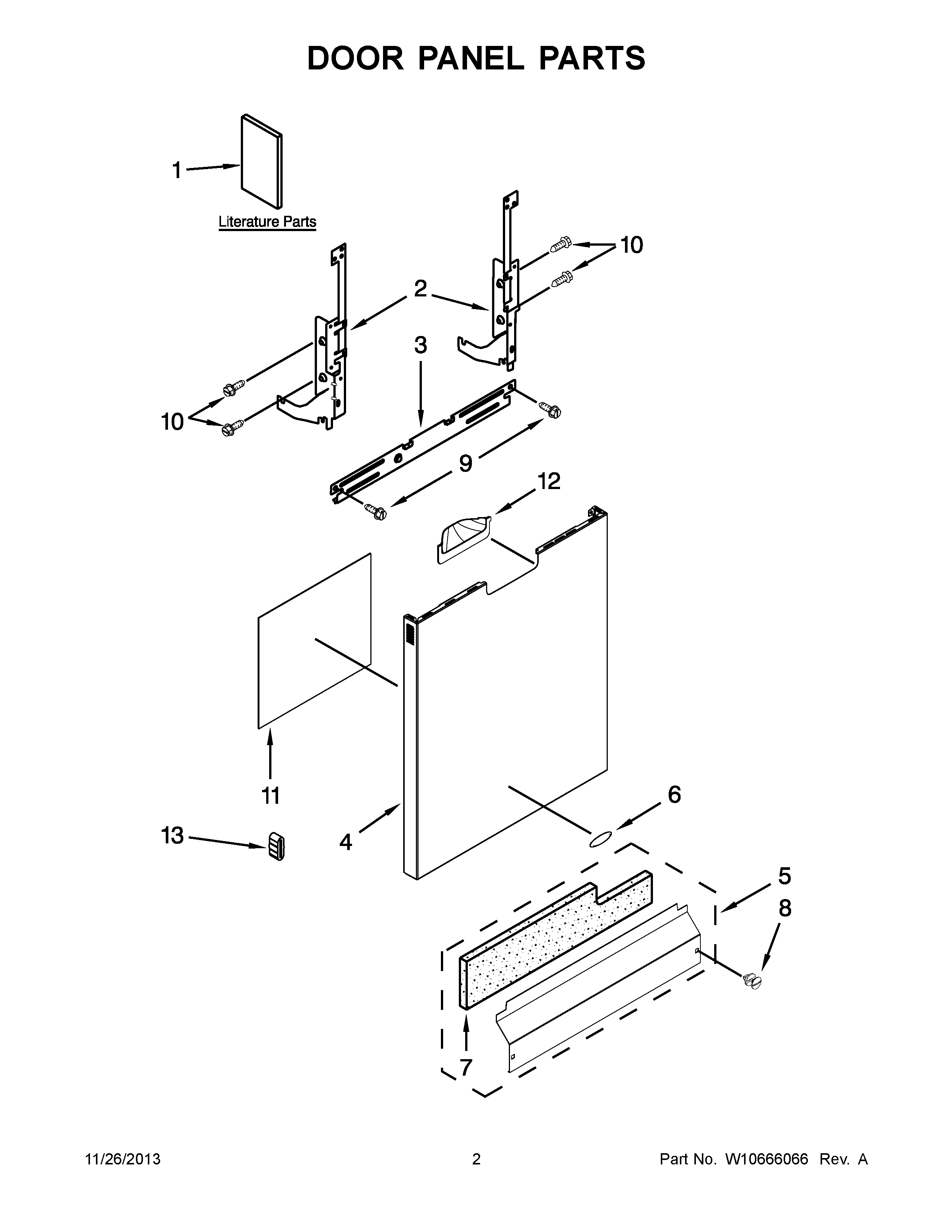

WDF530PAYM7 02 – DOOR PANEL PARTS

Products

PositionProduct
1TECH SHEET, ENGLISH
1ENERGY GUIDE
1USE & CARE GUIDE, ENGLISH/FRENCH
1TECH SHEET, FRENCH
1INSTALLATION, INSTRUCTIONS
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10505605 Whirlpool Panel
4PANEL, FRONT (INCLUDES ITEMS 6 & 12) (BLACK)
4PANEL, FRONT (INCLUDES ITEMS 6 & 12) (WHITE)
4WPW10505606 Whirlpool Dishwasher Panel
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
6W11178521 Whirlpool Dishwasher Nameplate
7SHIELD
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8WPW10503550 Whirlpool Dishwasher Retainer
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12POCKET ASSEMBLY (SILVER)
12W10485101 Whirlpool Handle
12W10485102 Whirlpool Handle
12W10485103 Whirlpool Handle
13WP8268961 Whirlpool Friction Pad
