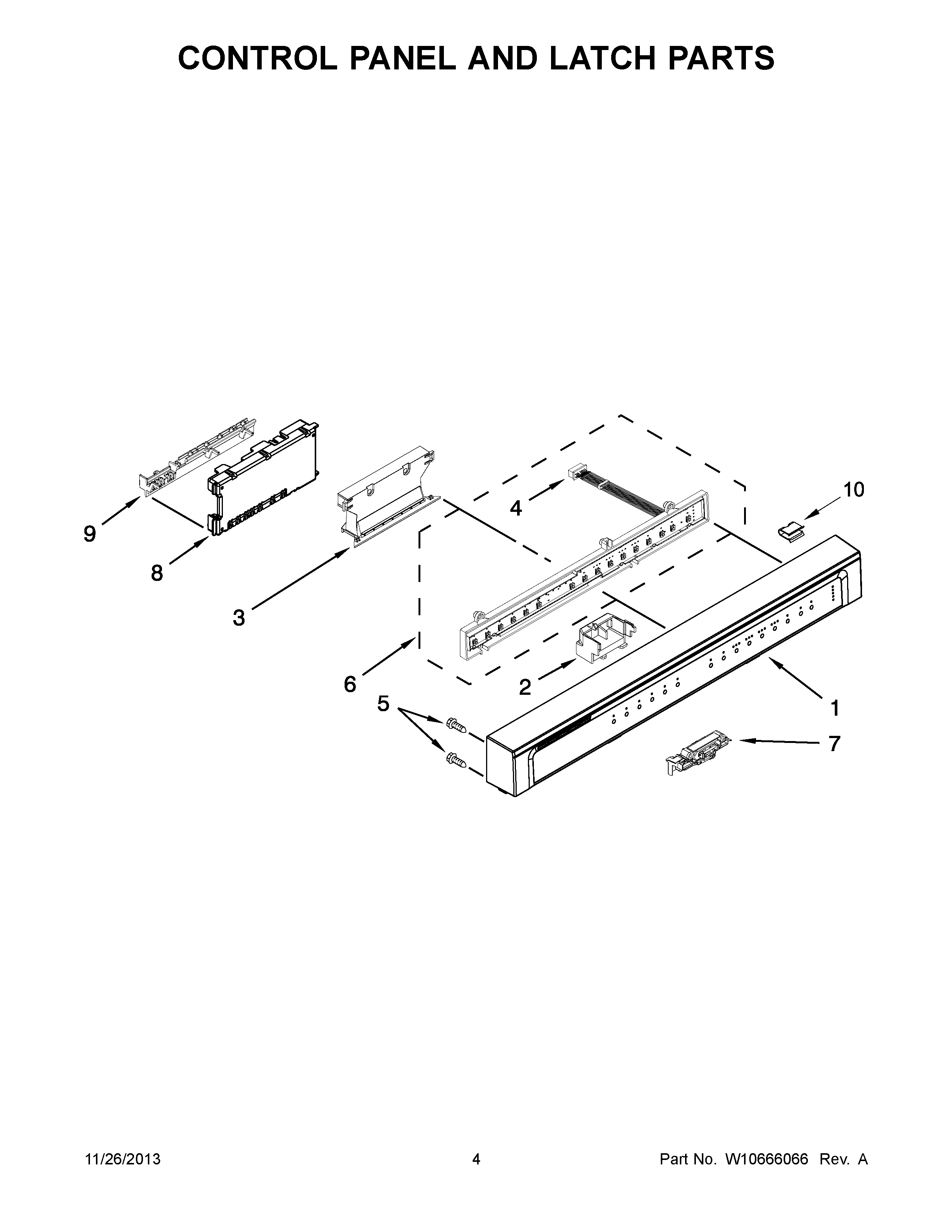

WDF530PAYM7 03 – CONTROL PANEL AND LATCH PARTS

WDF530PAYM7 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF530PAYM7 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10505573 Whirlpool Dishwasher Console
1WPW10479854 Whirlpool Dishwasher Console
1WPW10350328 Whirlpool Dishwasher Console
1W10350327 Whirlpool Dishwasher Console Assembly
2W10783730 Whirlpool Dishwasher Connector
3W10475758 Whirlpool Handle
4JUMPER, WIRE
5WPW10177098 Whirlpool Dishwasher Screw
6WPW10629167 Whirlpool Dishwasher UI Housing
7WPW10653840 Whirlpool Door Latch
8W10597045 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
10W10815836 Whirlpool Dishwasher Clip
