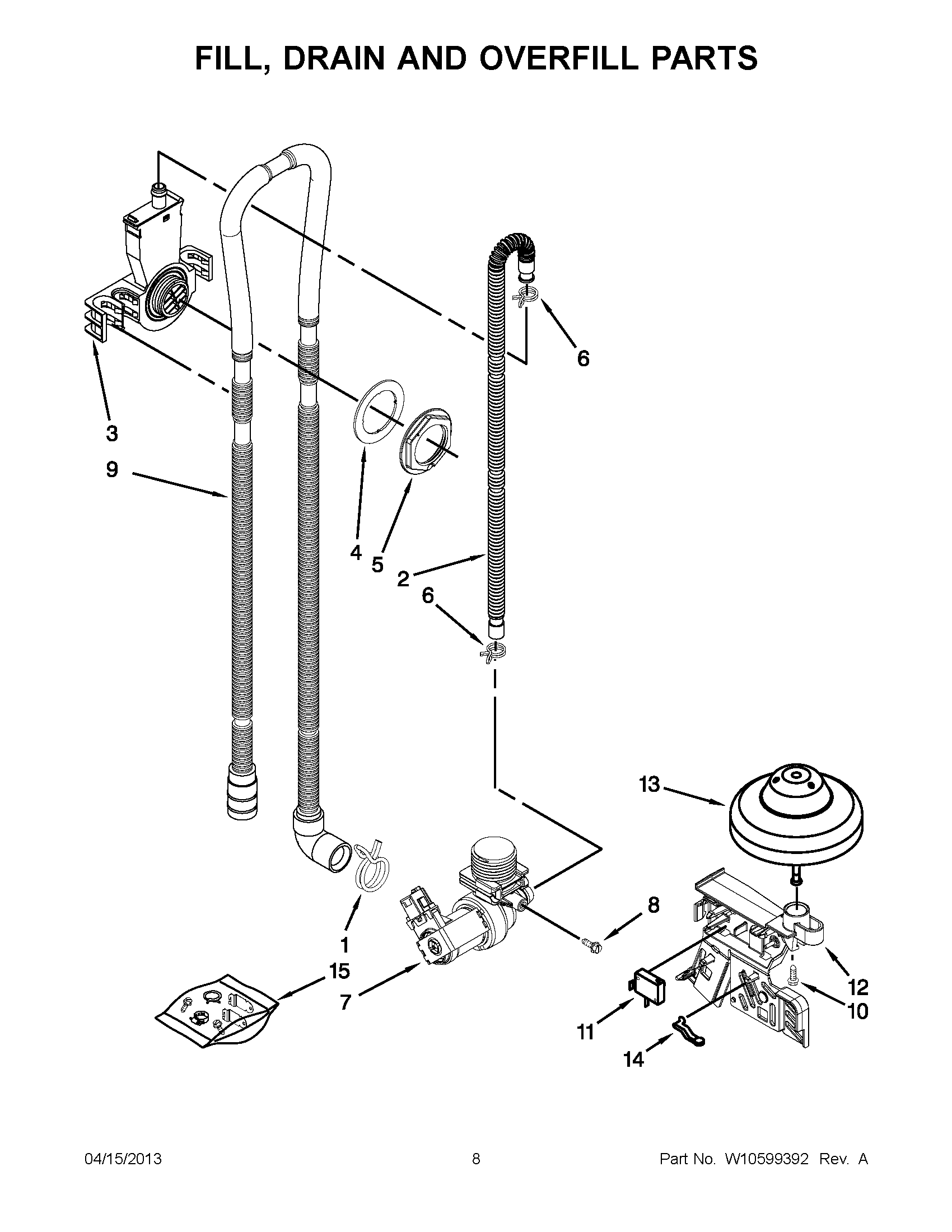

WDF530PAYW5 04 – FILL, DRAIN AND OVERFILL PARTS

WDF530PAYW5 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

WDF530PAYW5 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP285655 Whirlpool Hose Clamp
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7W10648041 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WPW10545278 Whirlpool Drain Hose
10WP304231 Whirlpool Dishwasher Screw
11WPW10195039 Whirlpool Dishwasher Float Switch
12WPW10316267 Whirlpool Dishwasher Standpipe
13WPW10346525 Whirlpool Dishwasher Float Assembly
14WPW10195037 Whirlpool Lever Assembly
15WPW10292152 Whirlpool Hardware Kit
