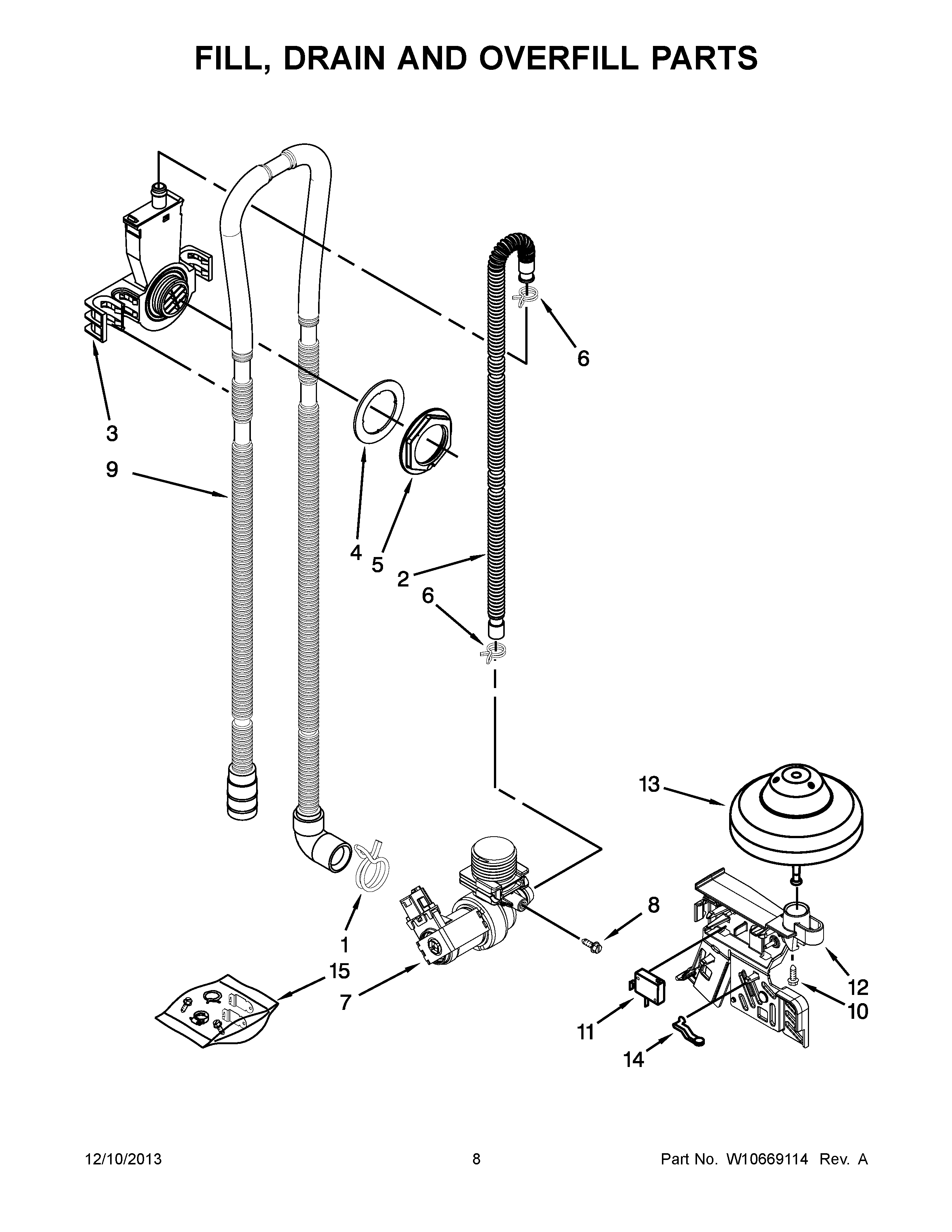

WDF530PLYB7 05 – FILL, DRAIN AND OVERFILL PARTSadmin2025-04-26T12:45:20+00:00WDF530PLYB7 05 – FILL, DRAIN AND OVERFILL PARTS ProductsPositionProduct1WP285655 Whirlpool Hose Clamp2W10878507 Whirlpool Inlet Hose3WPW10195536 Whirlpool Water Inlet Valve4WP8531323 Whirlpool Gasket Seal5WPW10508676 Whirlpool Dishwasher Tube Nut6WP596669 Whirlpool Hose Clamp7W10648041 Whirlpool Water Inlet Valve8WP489069 Whirlpool Compactor Screw9WPW10545278 Whirlpool Drain Hose10WP304231 Whirlpool Dishwasher Screw11WPW10195039 Whirlpool Dishwasher Float Switch12WPW10316267 Whirlpool Dishwasher Standpipe13WPW10346525 Whirlpool Dishwasher Float Assembly14WPW10195037 Whirlpool Lever Assembly15WPW10292152 Whirlpool Hardware Kit
