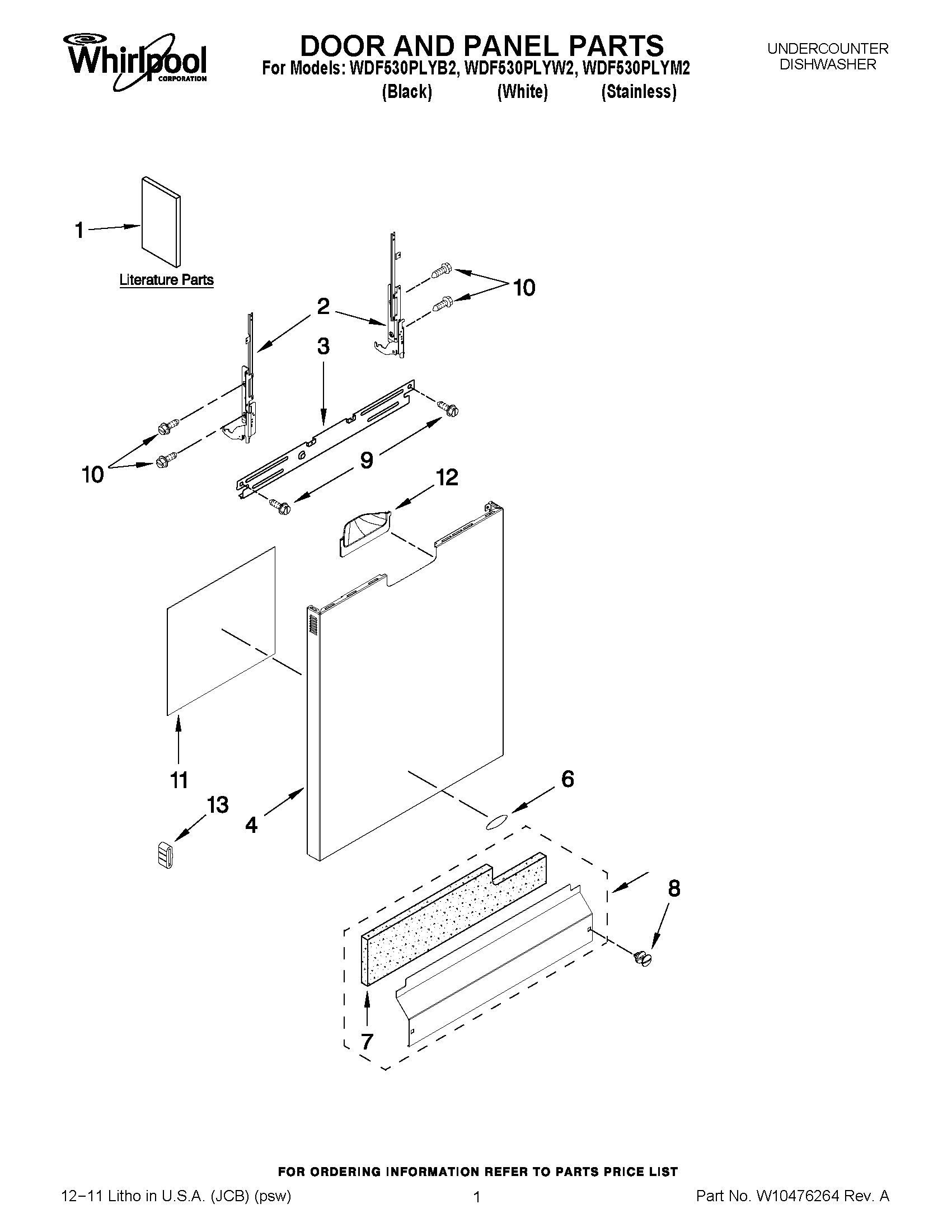

WDF530PLYM2 01 – DOOR AND PANEL PARTS

WDF530PLYM2 01 – DOOR AND PANEL PARTS

Written by

in

WDF530PLYM2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, ENGLISH/FRENCH
1INSTALLATION, INSTRUCTIONS
1ENERGY GUIDE
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4PANEL FRONT (INCLUDES 6 & 12) (WHITE)
4PANEL FRONT (INCLUDES 6 & 12) (BLACK)
4PANEL FRONT (INCLUDES 6 & 12)
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
7SHIELD
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12POCKET ASSY
12W10343321 Whirlpool Dishwasher Handle
12POCKET ASSY (BLACK)
13WP8268961 Whirlpool Friction Pad
