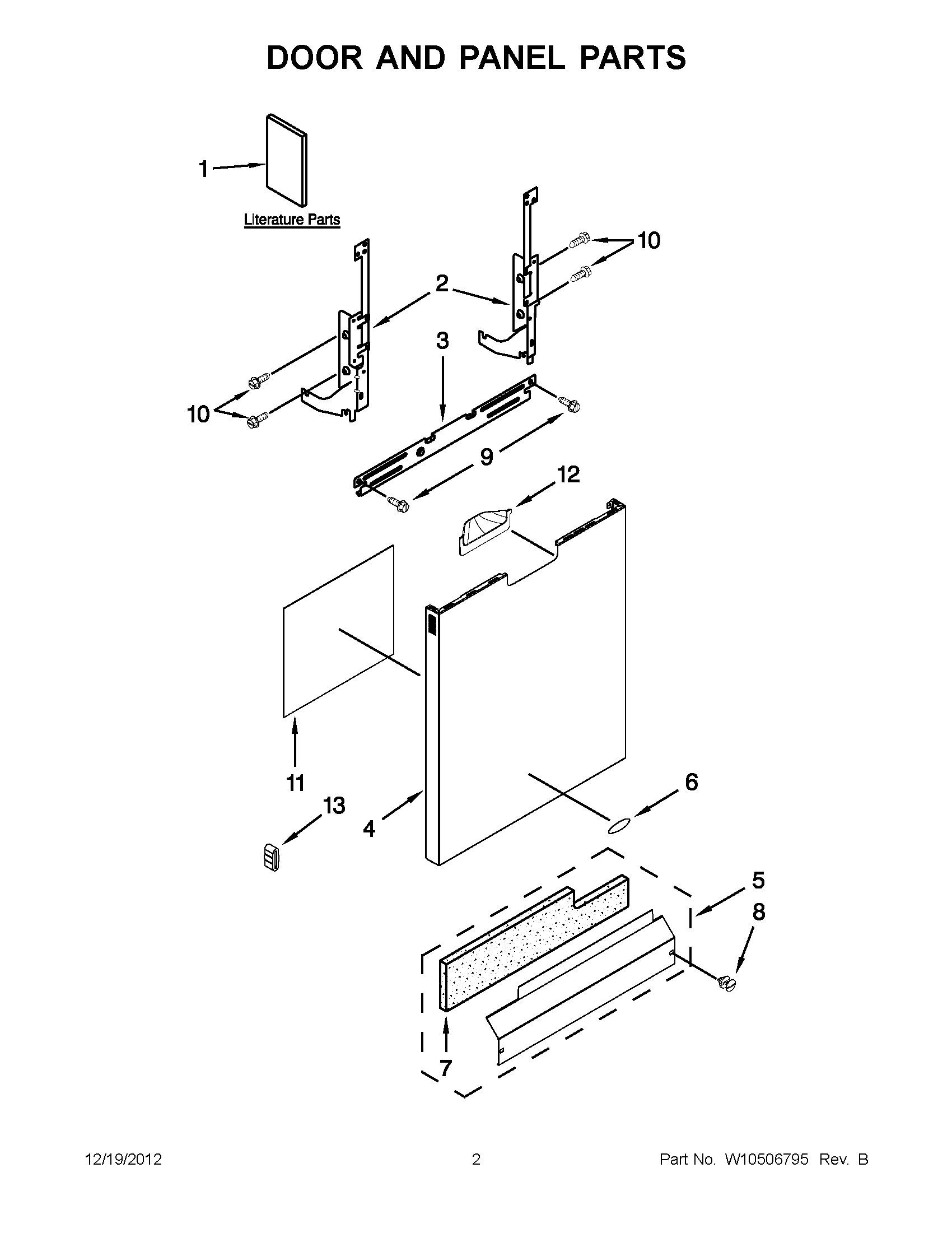

WDF530PSYB3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	INSTALLATION, INSTRUCTIONS
1	ENERGY GUIDE
1	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1	USE & CARE GUIDE, ENGLISH/FRENCH
1	USE & CARE GUIDE, SPANISH
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	PANEL FRONT (INCLUDES 6 & 12) (WHITE)
4	PANEL FRONT (INCLUDES 6 & 12) (BLACK)
4	PANEL FRONT (INCLUDES 6 & 12)
5	W10827631 Whirlpool Toe Panel
5	W10827632 Whirlpool Dishwasher Control Panel
6	W11178521 Whirlpool Dishwasher Nameplate
6	WPW10393264 Whirlpool Refrigerator Nameplate
7	SHIELD
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	POCKET ASSY
12	W10343321 Whirlpool Dishwasher Handle
12	POCKET ASSY (BLACK)
13	WP8268961 Whirlpool Friction Pad
