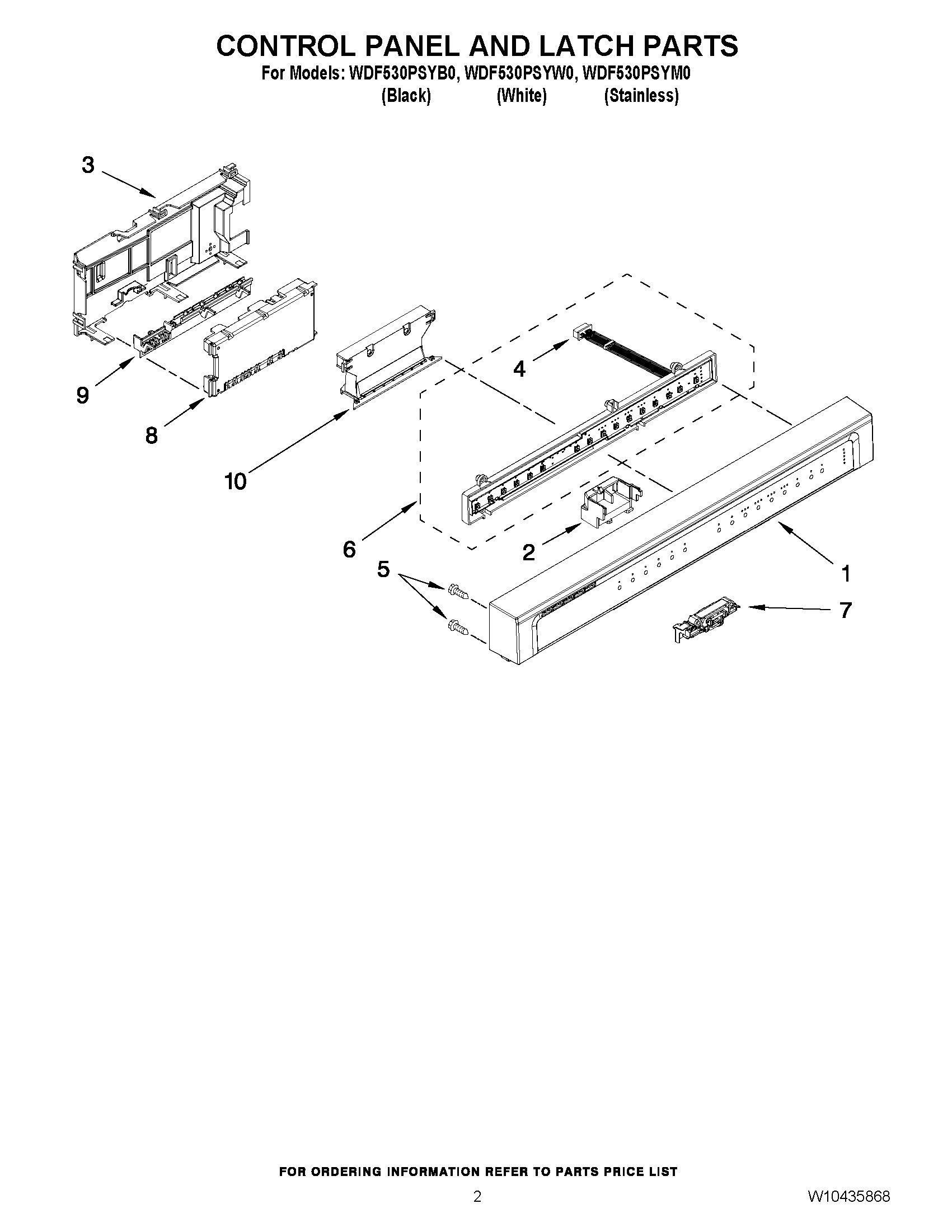

WDF530PSYM0 02 – CONTROL PANEL AND LATCH PARTS

WDF530PSYM0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF530PSYM0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10350428 Whirlpool Dishwasher Console
1W10350426 Whirlpool Dishwasher Console
1W10350425 Whirlpool Console
2W10783730 Whirlpool Dishwasher Connector
3COVER CONTROL SHIELD ASSEMBLY
4W10327246 Whirlpool Dishwasher Wire
5WPW10177098 Whirlpool Dishwasher Screw
6WPW10629166 Whirlpool Dishwasher UI Housing
7W10619006 Whirlpool Door Latch
8W10473200 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
10WPW10321839 Whirlpool Dishwasher Handle
10HANDLE (WHITE)
