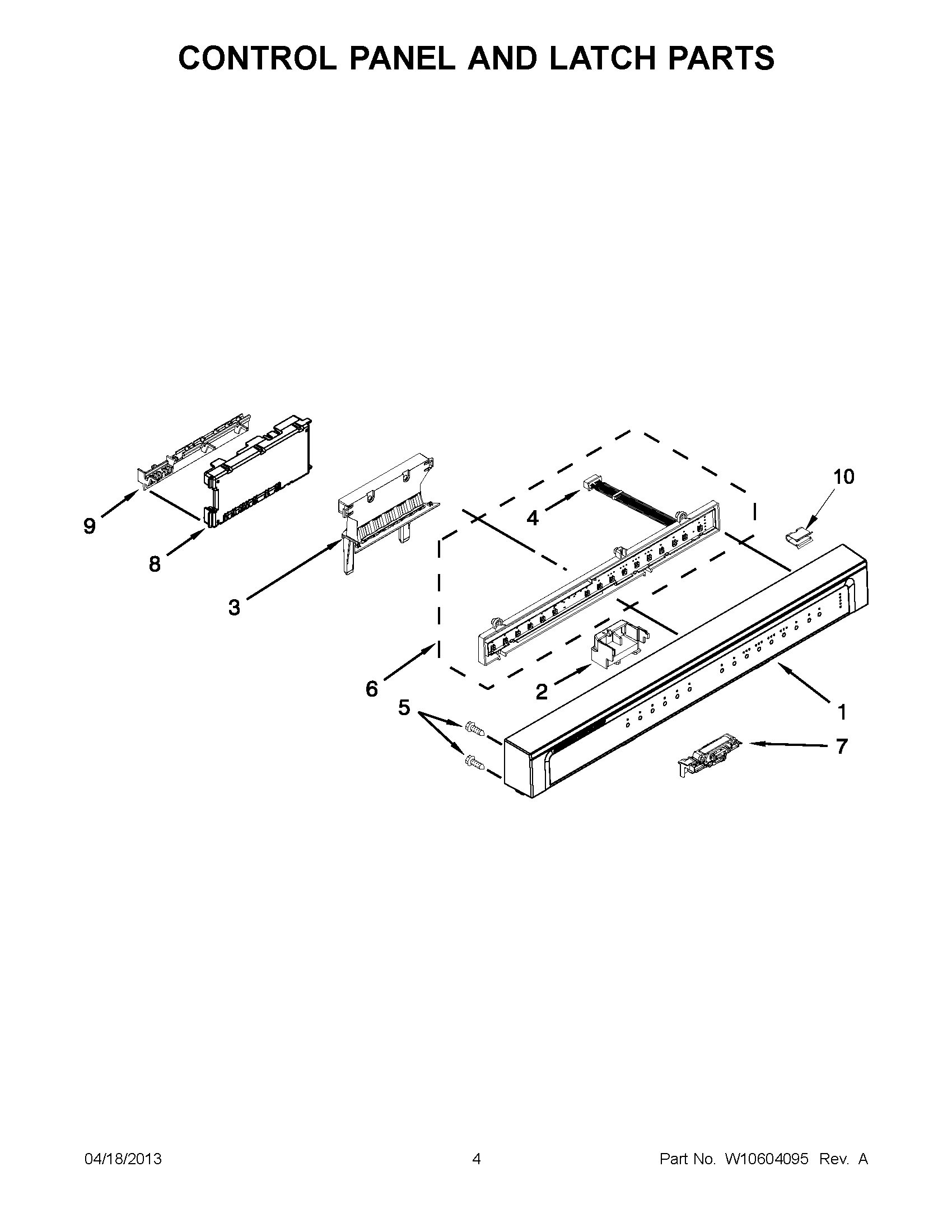

WDF530PSYW5 02 – CONTROL PANEL AND LATCH PARTS

WDF530PSYW5 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF530PSYW5 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10350428 Whirlpool Dishwasher Console
1W10350426 Whirlpool Dishwasher Console
1W10350425 Whirlpool Console
2W10783730 Whirlpool Dishwasher Connector
3W10475758 Whirlpool Handle
4JUMPER, WIRE
5WPW10177098 Whirlpool Dishwasher Screw
6W10552545 Whirlpool Dishwasher UI Housing
7W10619006 Whirlpool Door Latch
8W10597045 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
10W10815836 Whirlpool Dishwasher Clip
