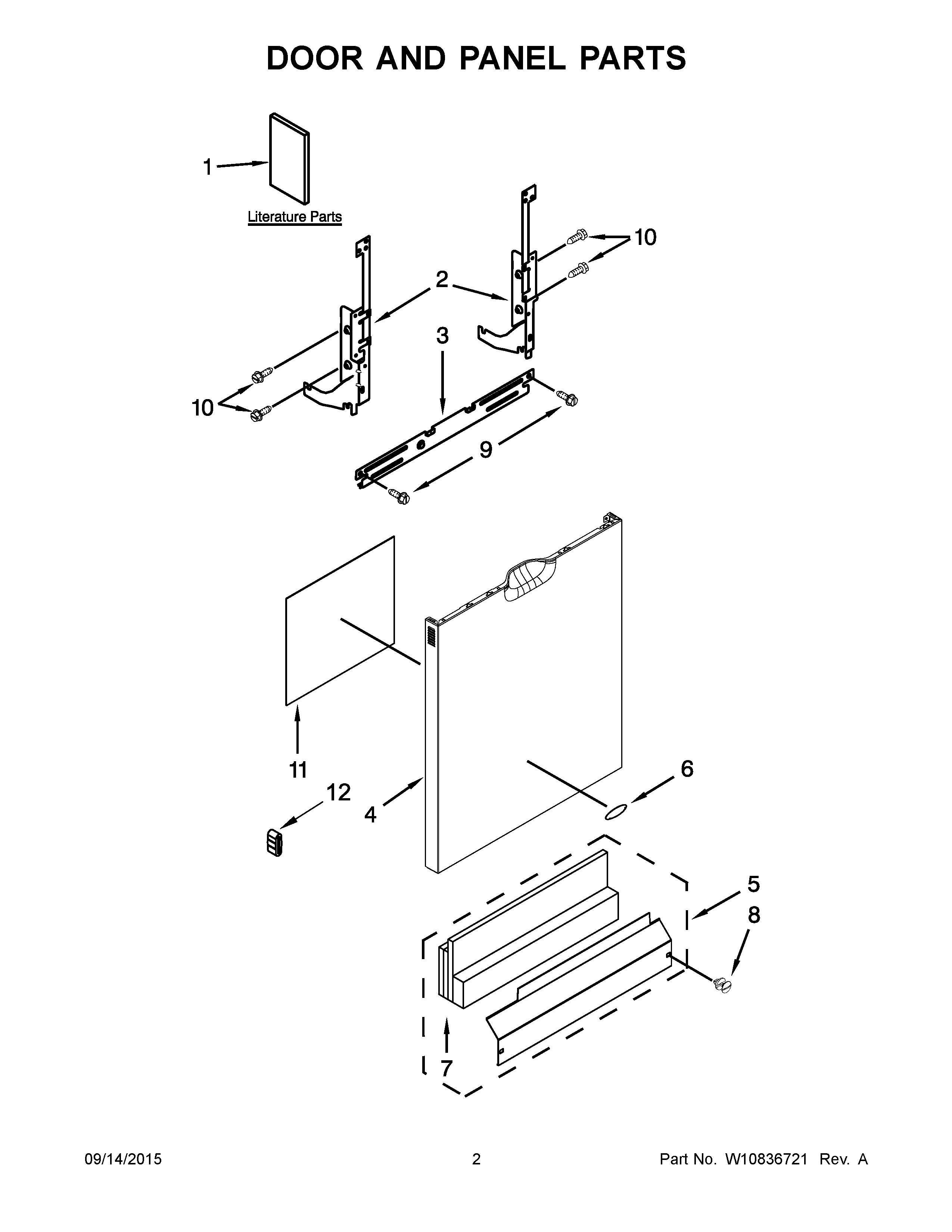

WDF540PADB2 02 – DOOR AND PANEL PARTS

WDF540PADB2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BUSE & CARE GUIDE
1AENERGY GUIDE
1INSTALLATION, INSTRUCTIONS
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
2W11613573 Whirlpool Door Hinge
2AW11613572 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4BW10839934 Whirlpool Dishwasher Panel
4CWPW10629473 Whirlpool Dishwasher Panel
4AW10846351 Whirlpool Dishwasher Panel
4W10802703 Whirlpool Dishwasher Door Panel
5BW10526116 Whirlpool Dishwasher Panel
5AWPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
6AW11178521 Whirlpool Dishwasher Nameplate
7SHIELD
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
8BWPW10503550 Whirlpool Dishwasher Retainer
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
12WP8268961 Whirlpool Friction Pad
