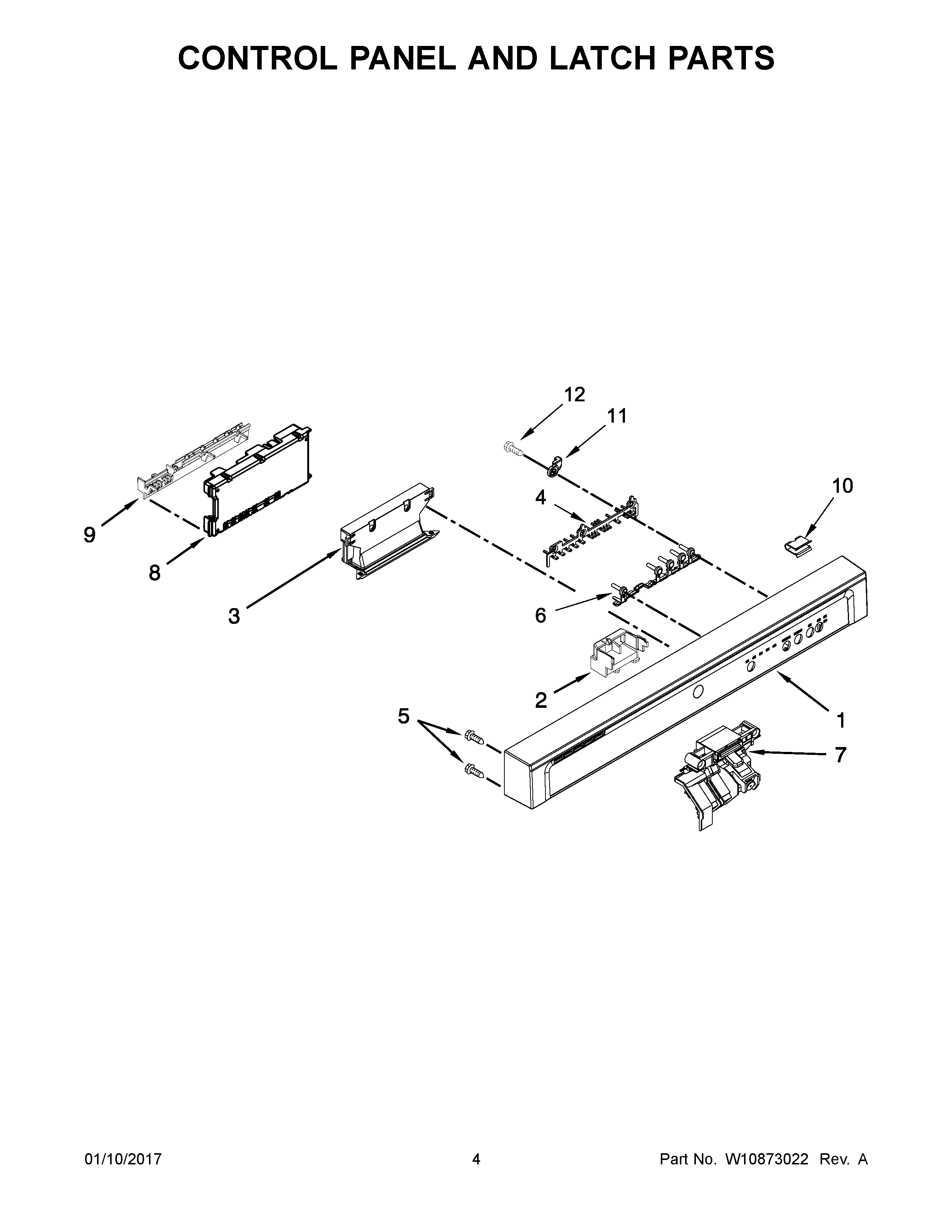

WDF540PADT3 03 – CONTROL PANEL AND LATCH PARTSadmin2025-04-26T12:45:57+00:00WDF540PADT3 03 – CONTROL PANEL AND LATCH PARTS ProductsPositionProduct1CW10849486 Whirlpool Dishwasher Console1BCONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT/BISQUE)1AW10849551 Whirlpool Dishwasher Console1W10839949 Whirlpool Dishwasher Console3W11568629 Whirlpool Dishwasher Handle4W10839423 Whirlpool Dishwasher Guide5W11232015 Whirlpool Dishwasher Screw6W10849355 Whirlpool Dishwasher Button7WPW10653840 Whirlpool Door Latch8W10906428 Whirlpool Control Board + Core9W11305293 Whirlpool Dishwasher Electronic Control Board10W10815836 Whirlpool Dishwasher Clip11W10629551 Whirlpool Dishwasher Clip12W11700520 Whirlpool Screw
