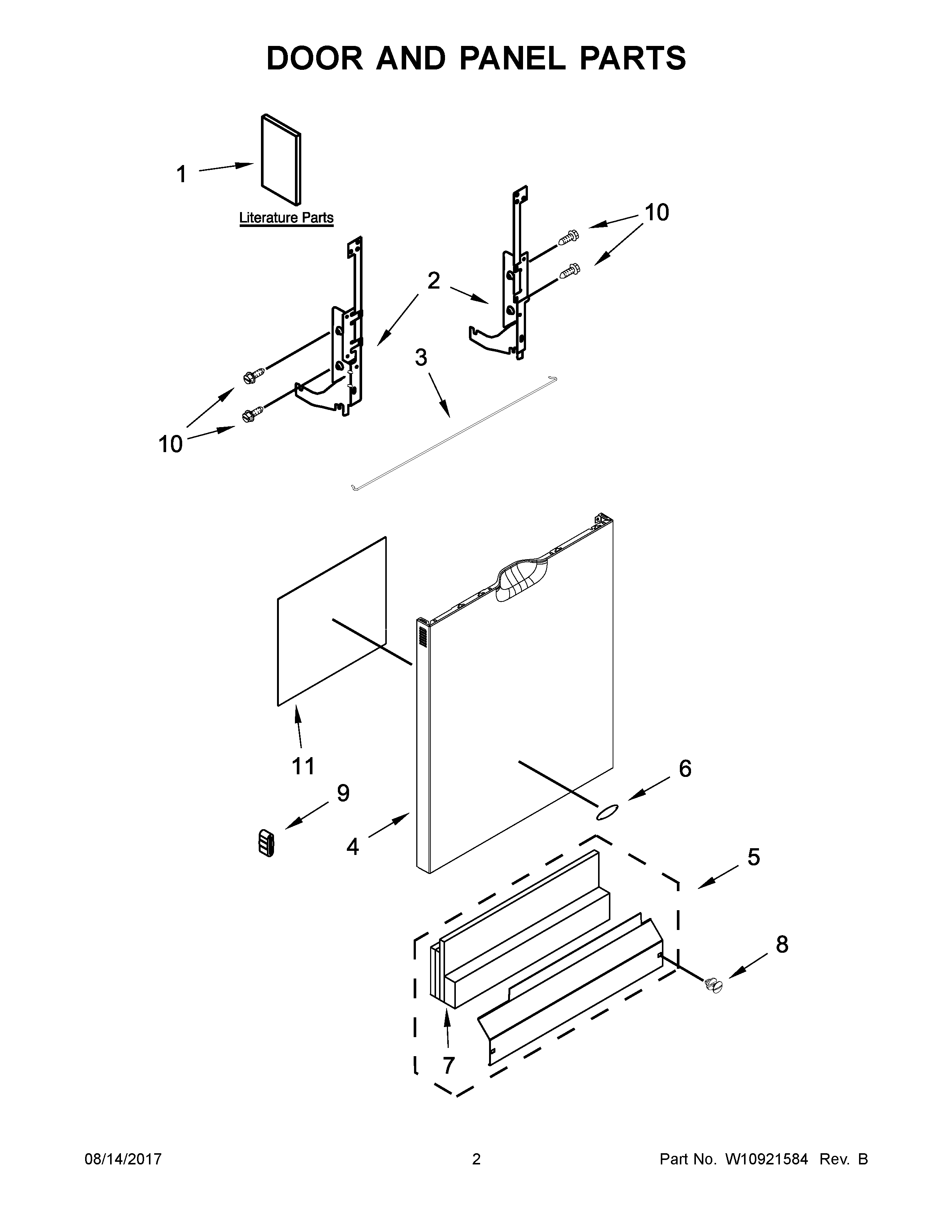

WDF545PAFM0 02 – DOOR AND PANEL PARTS

WDF545PAFM0 02 – DOOR AND PANEL PARTS

Written by

in

WDF545PAFM0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
2AW11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10629473 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
7SHIELD
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP8268961 Whirlpool Friction Pad
10WPW10109200 Whirlpool Screw
11W11126003 Whirlpool Dishwasher Insulation Pad
