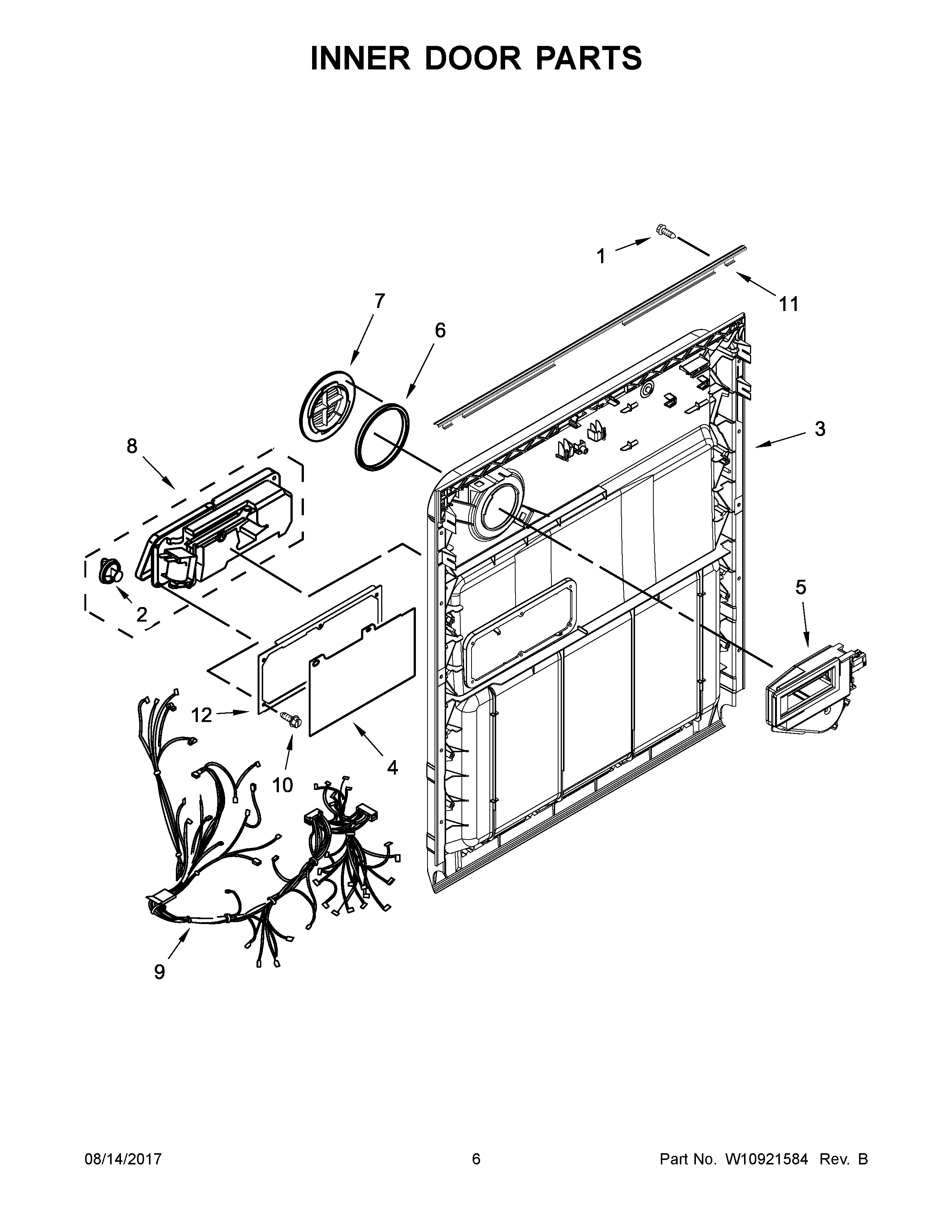

WDF545PAFM0 04 – INNER DOOR PARTS

WDF545PAFM0 04 – INNER DOOR PARTS

Written by

in

WDF545PAFM0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
3W11319347 Whirlpool Dishwasher Inner Door
4WPW10482094 Whirlpool Dishwasher Cover
5WPW10329609 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7BEZEL, VENT (ALSO ORDER ITEM 6)
8W11023844 Whirlpool Dishwasher Dispenser
9WIRING HARNESS
10WPW10177098 Whirlpool Dishwasher Screw
11W10837566 Whirlpool Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
