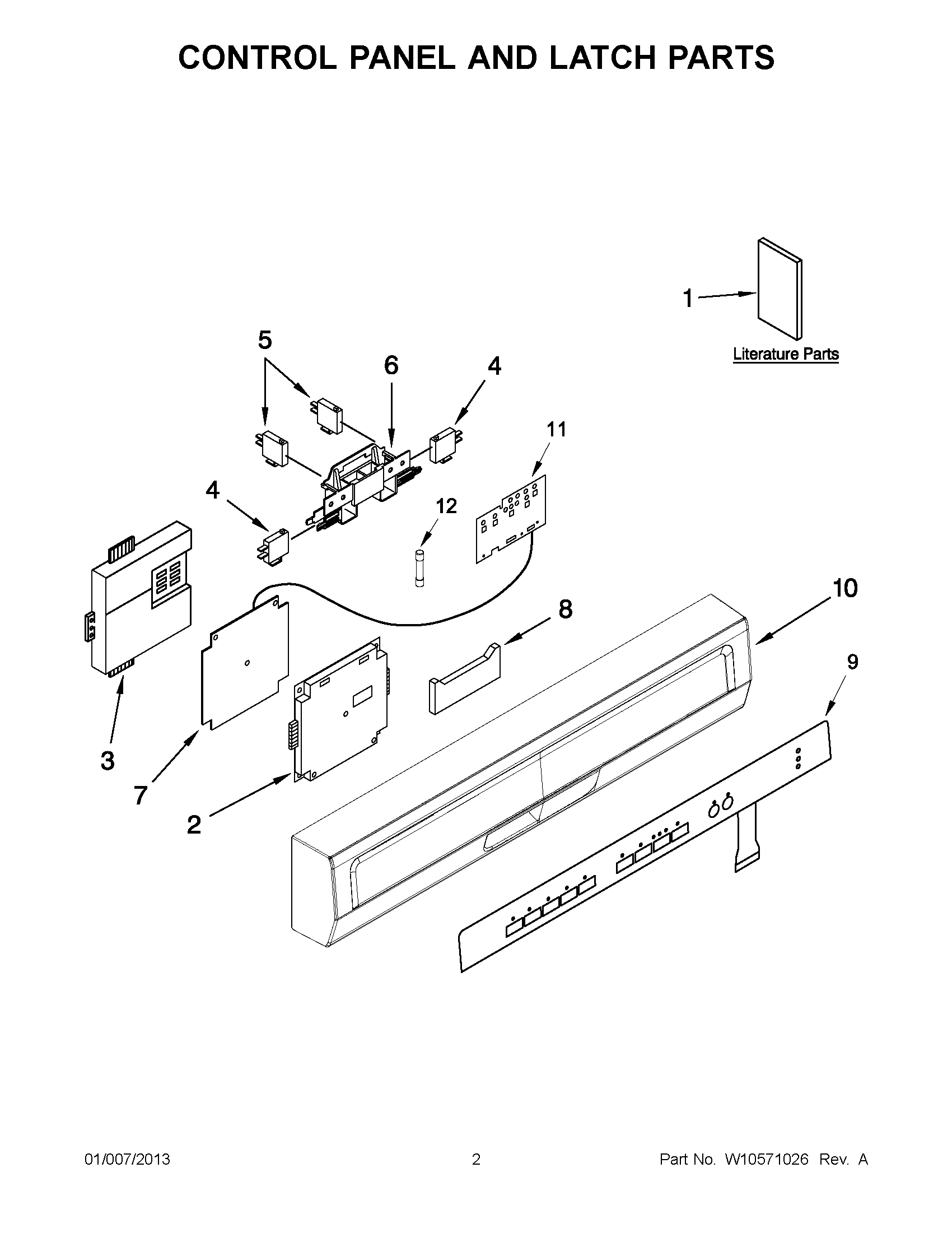

WDF550SAAB0 01 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2COVER, CONTROL MAIN
3W10567584 Whirlpool Dishwasher Cover
4W10859566 Whirlpool Dishwasher Switch
5W10567587 Whirlpool Dishwasher Switch
5WPW10567586 Whirlpool Dishwasher Switch
6BOLT, LATCH
7CONTROL, ELECTRONIC MAIN
8HANDLE
9OVERLAY (SILVER)
9OVERLAY (WHITE)
9OVERLAY (BLACK)
10WPW10558071 Whirlpool Dishwasher Console
10CONSOLE (BLACK)
11WPW10567589 Whirlpool Dishwasher Electronic Control Board + Core
12W10487251 Whirlpool Dishwasher Fuse
