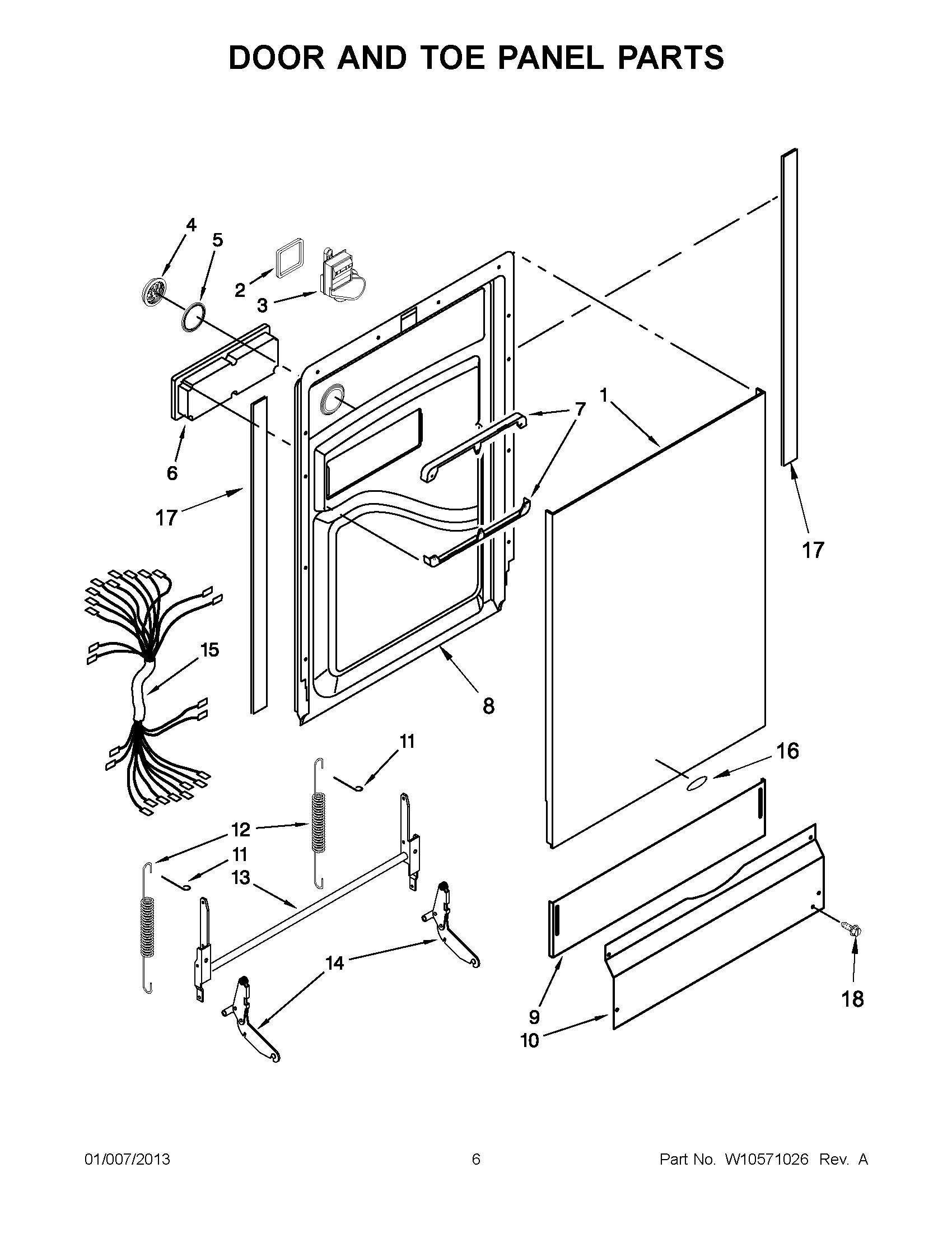

WDF550SAAB0 03 – DOOR AND TOE PANEL PARTS

Products

Position	Product
1	WPW10558067 Whirlpool Dishwasher Panel
1	WPW10558068 Whirlpool Dishwasher Panel
1	PANEL, DOOR (WHITE)
2	GASKET, VENT
3	VENT
4	W10567579 Whirlpool Dishwasher Deflector
5	GASKET, DEFLECTOR
6	DISPENSER
7	W10567606 Whirlpool Dishwasher Dispense Bracket
8	DOOR, INNER
9	WPW10567571 Whirlpool Dishwasher Toe Panel
9	WPW10567570 Whirlpool Toe Panel
10	PANEL, ACCESS (BLACK)
10	WPW10567568 Whirlpool Dishwasher Panel
11	W10567596 Whirlpool Dishwasher Pin
12	W10567597 Whirlpool Dishwasher Spring
13	WPW10567602 Whirlpool Dishwasher Hinge Bracket
14	W10567603 Whirlpool Dishwasher Door Hinge
14	W10567598 Whirlpool Dishwasher Door Hinge
15	W10567607 Whirlpool Dishwasher Wire Harness
16	W10567593 Whirlpool Dishwasher Nameplate
16	WPW10393264 Whirlpool Refrigerator Nameplate
17	W10567608 Whirlpool Dishwasher Seal
17	GUARD, INNER DOOR (BLACK)
18	SCREW (WHITE)
18	W10517912 Whirlpool Dishwasher Screw
