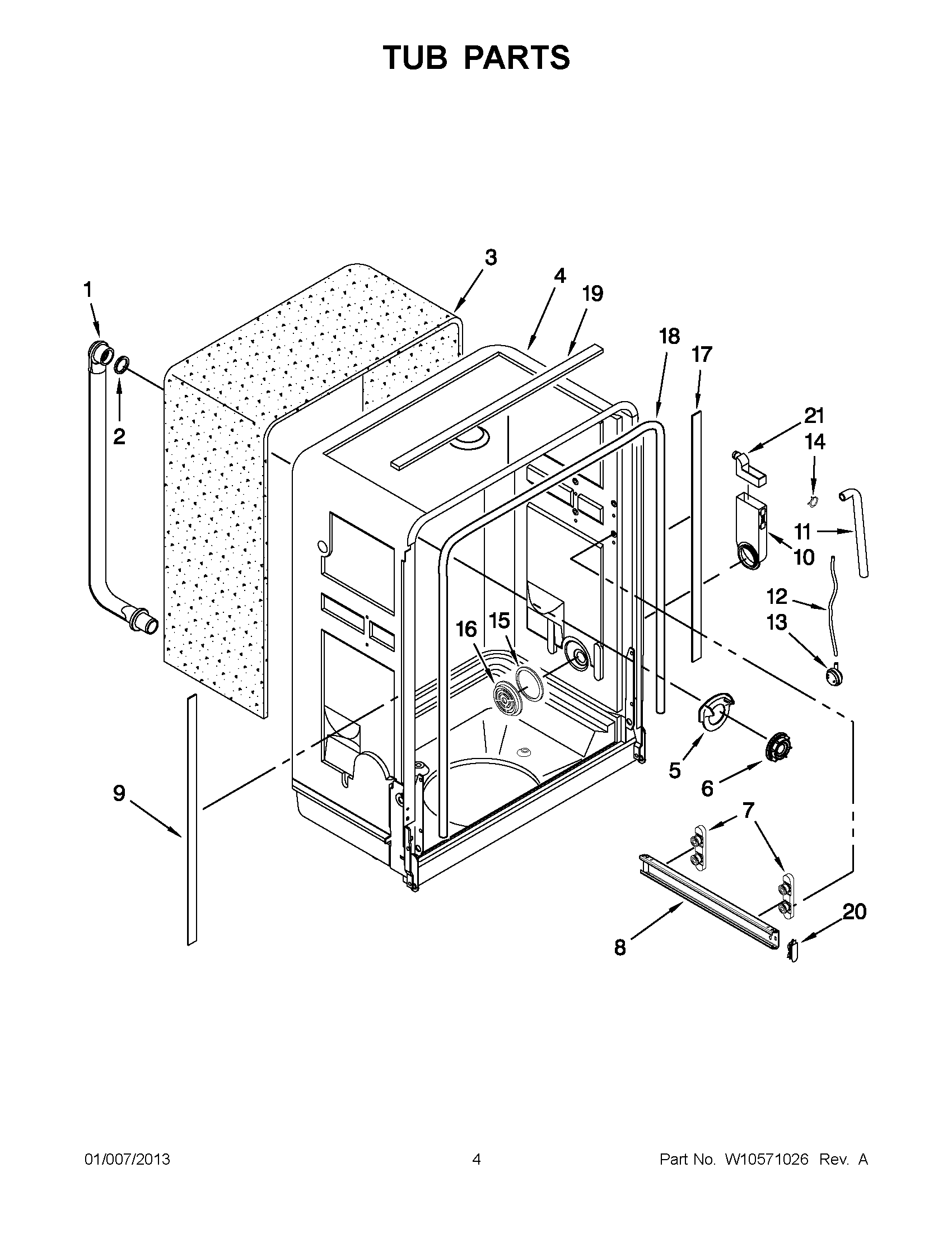

WDF550SAAS0 02 – TUB PARTS

WDF550SAAS0 02 – TUB PARTS

Written by

in

WDF550SAAS0 02 – TUB PARTS

Products

PositionProduct
1W10567638 Whirlpool Dishwasher Tube
2W10567637 Whirlpool Dishwasher Gasket
3WPW10567495 Whirlpool Shield
4W10567498 Whirlpool Dishwasher Tub
5W10567636 Whirlpool Dishwasher Guide
6W10567635 Whirlpool Dishwasher Tube Nut
7W11685772 Whirlpool Tub Wheel
8W10567559 Whirlpool Dishwasher Track
9W10567577 Whirlpool Tank Trim
9W10567578 Whirlpool Tank Trim
11W10567623 Whirlpool Dishwasher Hose
12W10567651 Whirlpool Dishwasher Hose
13W10567650 Whirlpool Dishwasher Water Level Switch
14W10567621 Whirlpool Dishwasher Clamp
15GASKET, O-RING
16W10567626 Whirlpool Dishwasher Inlet Bezel
17TRIM, TANK RIGHT HAND (BLACK)
17W10567562 Whirlpool Tank Trim
18W10567557 Whirlpool Dishwasher Gasket
19W10567504 Whirlpool Dishwasher Tank Trim
19W10567503 Whirlpool Tank Trim
20W11165171 Whirlpool Dishwasher Stop
21W10567624 Whirlpool Dishwasher Water Inlet
