WDF550SAAS0 04 – FRAME PARTS

WDF550SAAS0 04 – FRAME PARTS

Written by

in

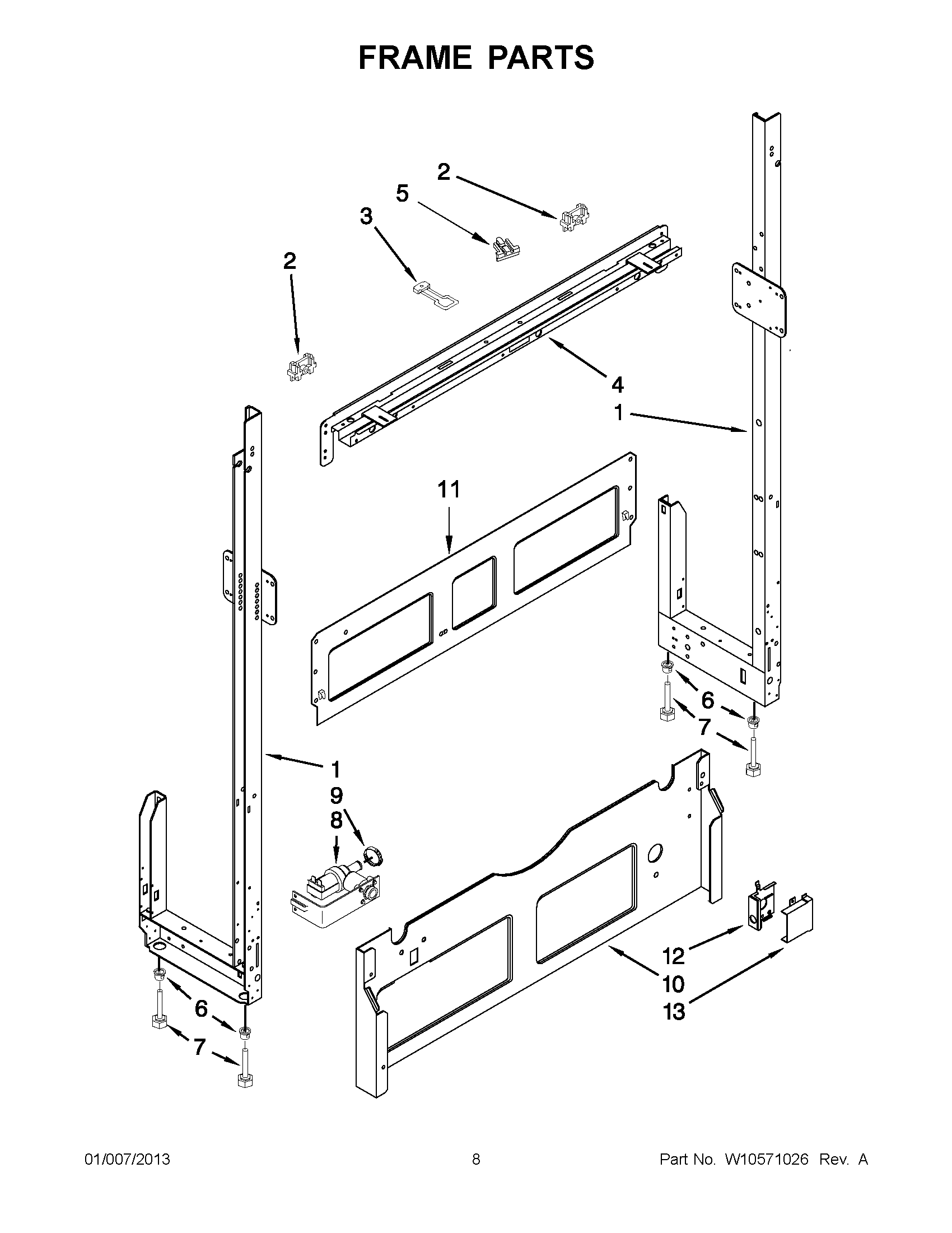

WDF550SAAS0 04 – FRAME PARTS

Products

PositionProduct
1WPW10567496 Whirlpool Left Hand Frame
1FRAME, UPRIGHTS (RIGHT HAND)
2BLOCK (BLACK)
2BLOCK (WHITE)
3W10567501 Whirlpool Dishwasher Hook
4WPW10567505 Whirlpool Tank Trim
4WPW10567556 Whirlpool Dishwasher Tank Trim
5W10567502 Whirlpool Dishwasher Block
6W10567574 Whirlpool Dishwasher Nut M
7LEG, LEVELING
8VALVE, FILL
9W10567652 Whirlpool Clamp
10WPW10567572 Whirlpool Brace
11W10567576 Whirlpool Brace
12W10567566 Whirlpool Cover Box
13WPW10567567 Whirlpool Dishwasher Terminal Box
