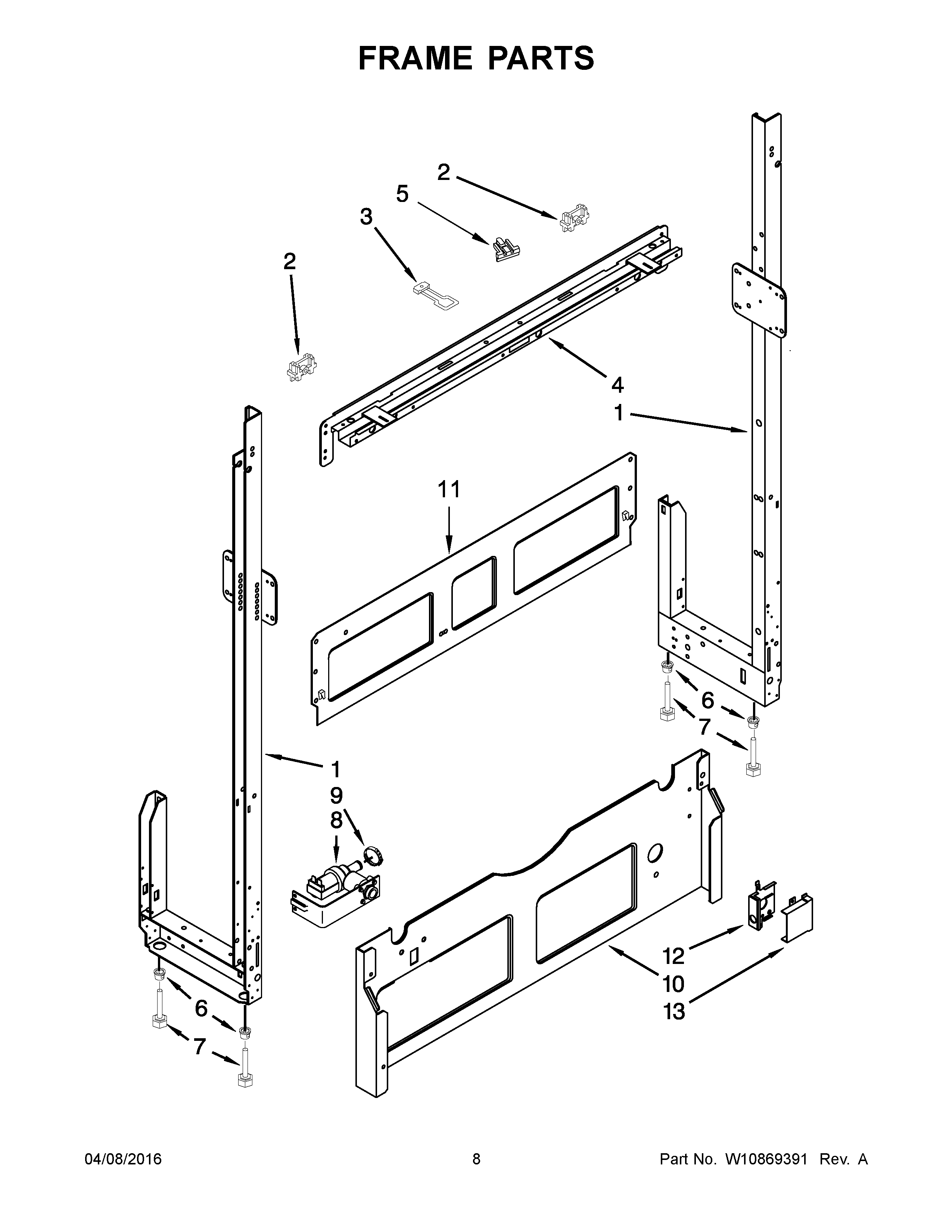

WDF550SAFB0 05 – FRAME PARTS

Products

PositionProduct
1AFRAME, UPRIGHTS (LEFT HAND)
1WPW10567496 Whirlpool Left Hand Frame
2BLOCK (BLACK)
2ABLOCK (WHITE)
3W10567501 Whirlpool Dishwasher Hook
4AWPW10567505 Whirlpool Tank Trim
4WPW10567556 Whirlpool Dishwasher Tank Trim
5W10567502 Whirlpool Dishwasher Block
6W10567574 Whirlpool Dishwasher Nut M
7LEG, LEVELING
8W10875007 Whirlpool Dishwasher Inlet Valve
9W10567652 Whirlpool Clamp
10WPW10567572 Whirlpool Brace
11W10567576 Whirlpool Brace
12W10567566 Whirlpool Cover Box
13WPW10567567 Whirlpool Dishwasher Terminal Box
