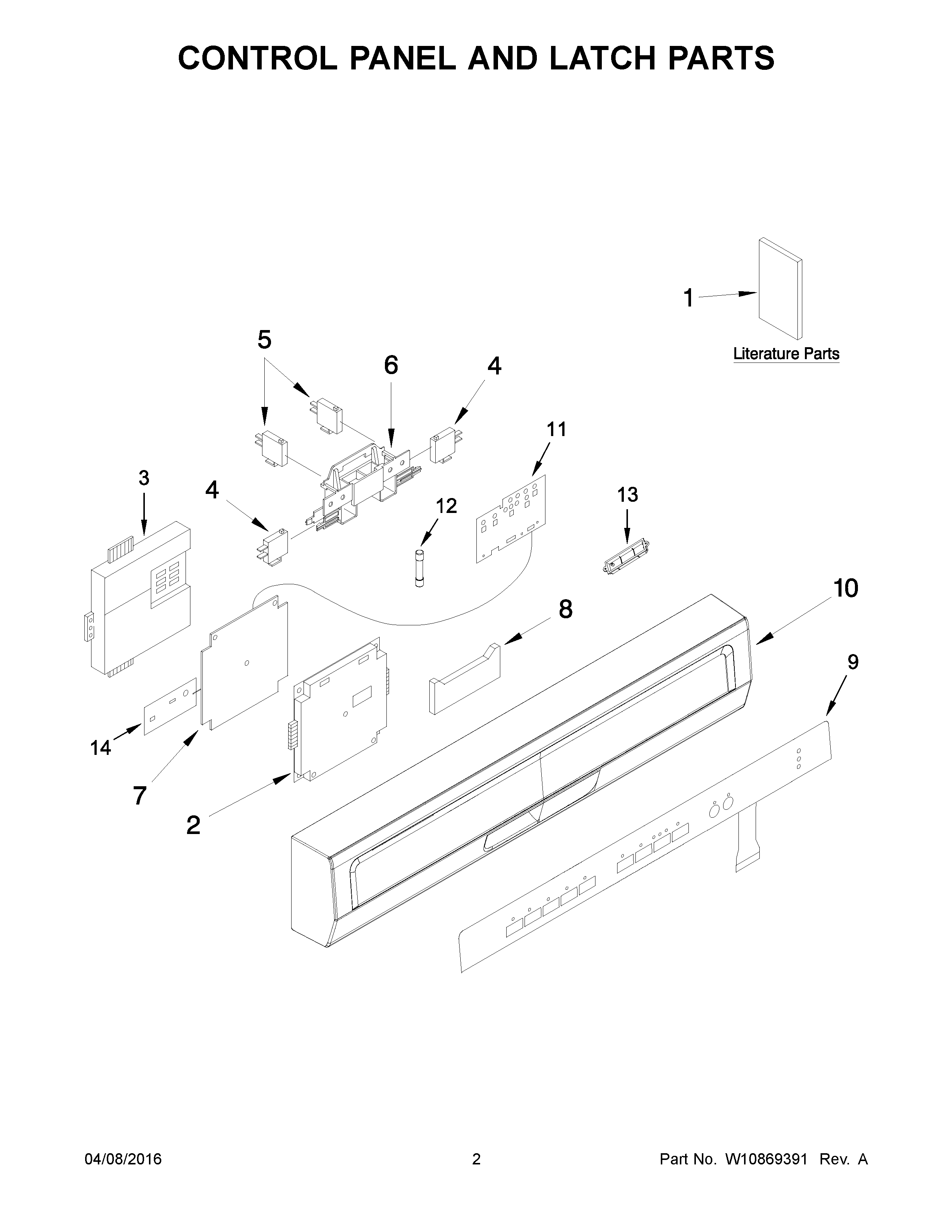

WDF550SAFS0 02 – CONTROL PANEL AND LATCH PARTS

WDF550SAFS0 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF550SAFS0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE & CARE GUIDE
2COVER, CONTROL MAIN
3W10567584 Whirlpool Dishwasher Cover
4W10859566 Whirlpool Dishwasher Switch
5WPW10567586 Whirlpool Dishwasher Switch
5AW10567587 Whirlpool Dishwasher Switch
6BOLT, LATCH
7CONTROL, ELECTRONIC MAIN
8HANDLE
9W10891596 Whirlpool Dishwasher Overlay
9AOVERLAY (WHITE)
10AWPW10558071 Whirlpool Dishwasher Console
10CONSOLE (BLACK)
11W10891576 Whirlpool Dishwasher Electronic Control Board
12W10487251 Whirlpool Dishwasher Fuse
13W10883770 Whirlpool Dishwasher Base
14SENSOR, PCB
