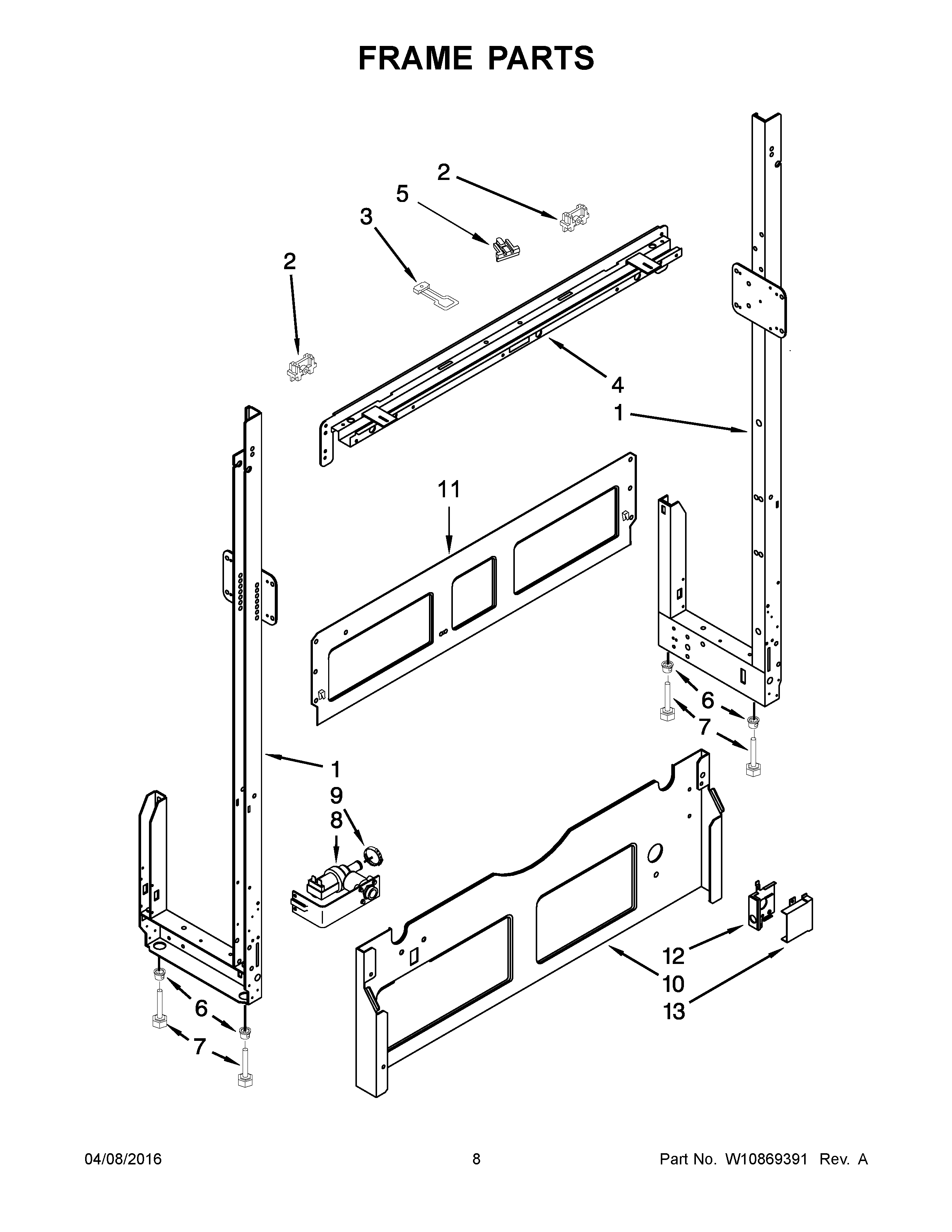

WDF550SAFS0 05 – FRAME PARTS

Products

Position	Product
1A	FRAME, UPRIGHTS (LEFT HAND)
1	WPW10567496 Whirlpool Left Hand Frame
2	BLOCK (BLACK)
2A	BLOCK (WHITE)
3	W10567501 Whirlpool Dishwasher Hook
4A	WPW10567505 Whirlpool Tank Trim
4	WPW10567556 Whirlpool Dishwasher Tank Trim
5	W10567502 Whirlpool Dishwasher Block
6	W10567574 Whirlpool Dishwasher Nut M
7	LEG, LEVELING
8	W10875007 Whirlpool Dishwasher Inlet Valve
9	W10567652 Whirlpool Clamp
10	WPW10567572 Whirlpool Brace
11	W10567576 Whirlpool Brace
12	W10567566 Whirlpool Cover Box
13	WPW10567567 Whirlpool Dishwasher Terminal Box
