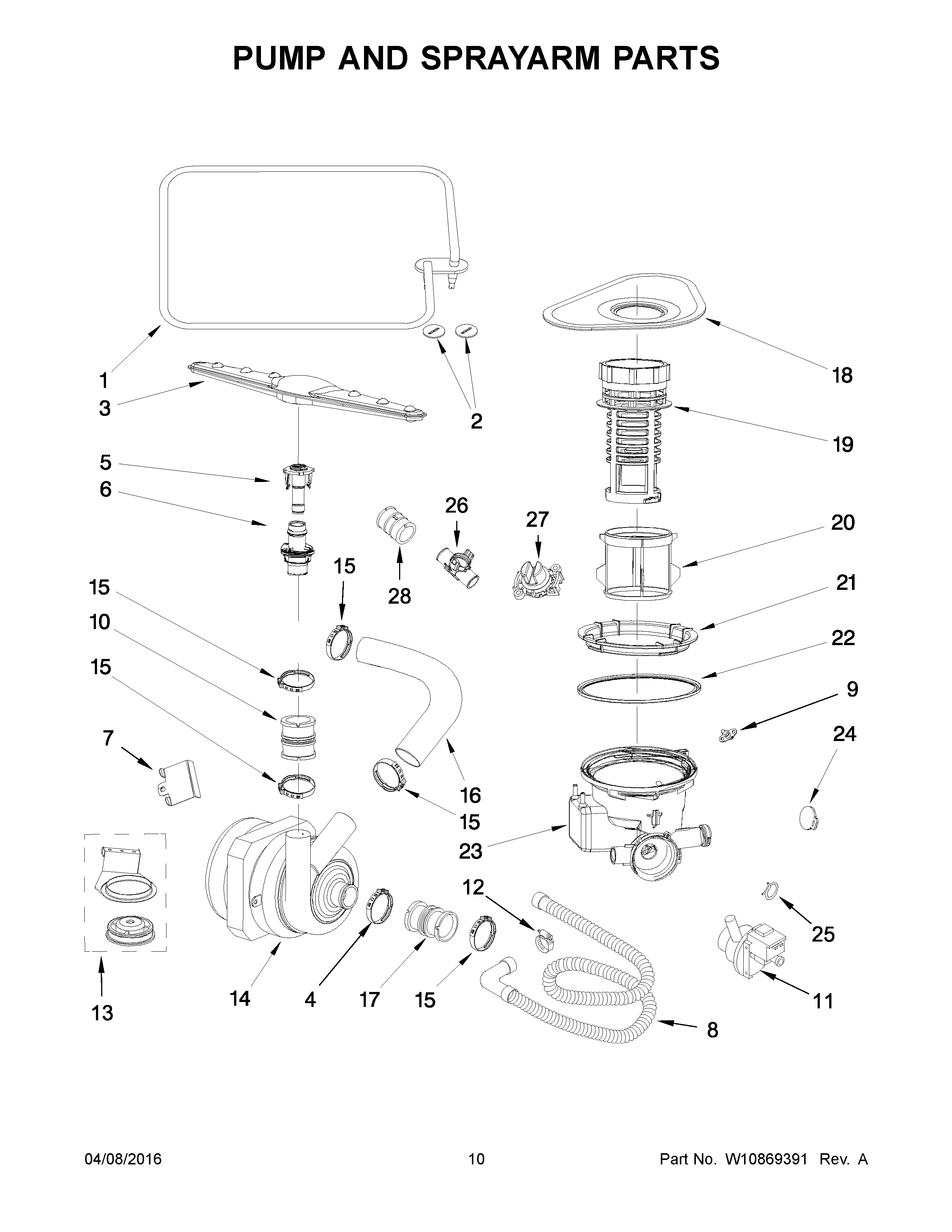

WDF550SAFS0 06 – PUMP AND SPRAYARM PARTS

Products

Position	Product
1	HEATING ELEMENT
2	W10567629 Whirlpool Dishwasher Terminal Nut
3	W10567639 Whirlpool Dishwasher Spray Arm
4	W10783615 Whirlpool Dishwasher Clamp
5	W10567667 Whirlpool Dishwasher Support Arm
6	W10567641 Whirlpool Dishwasher Support Arm
7	SUPPORT, CAPACITOR
8	WPW10567628 Whirlpool Dishwasher Drain Hose
9	W10567618 Whirlpool Dishwasher Thermistor
10	W10717677 Whirlpool Dishwasher Hose
11	W11677711 Whirlpool Drain Pump
12	W10567654 Whirlpool Dishwasher Clamp
13	MOTOR SUPPORT ASSEMBLY
14	WPW10567645 Whirlpool Dishwasher Pump Motor
15	WPW10567646 Whirlpool Dishwasher Clamp
16	W10883777 Whirlpool Dishwasher Hose
17	W10567649 Whirlpool Dishwasher Hose
18	W10567613 Whirlpool Dishwasher Sieve
19	W10717669 Whirlpool Dishwasher Filter
20	MICROFILTER
21	NUT, SUMP
22	W10717670 Whirlpool Dishwasher Gasket
23	SUMP
24	W10567620 Whirlpool Dishwasher Check Valve
25	W10567621 Whirlpool Dishwasher Clamp
26	MOUNTING TUBE
27	W10883778 Whirlpool Sensor
28	HOSE
