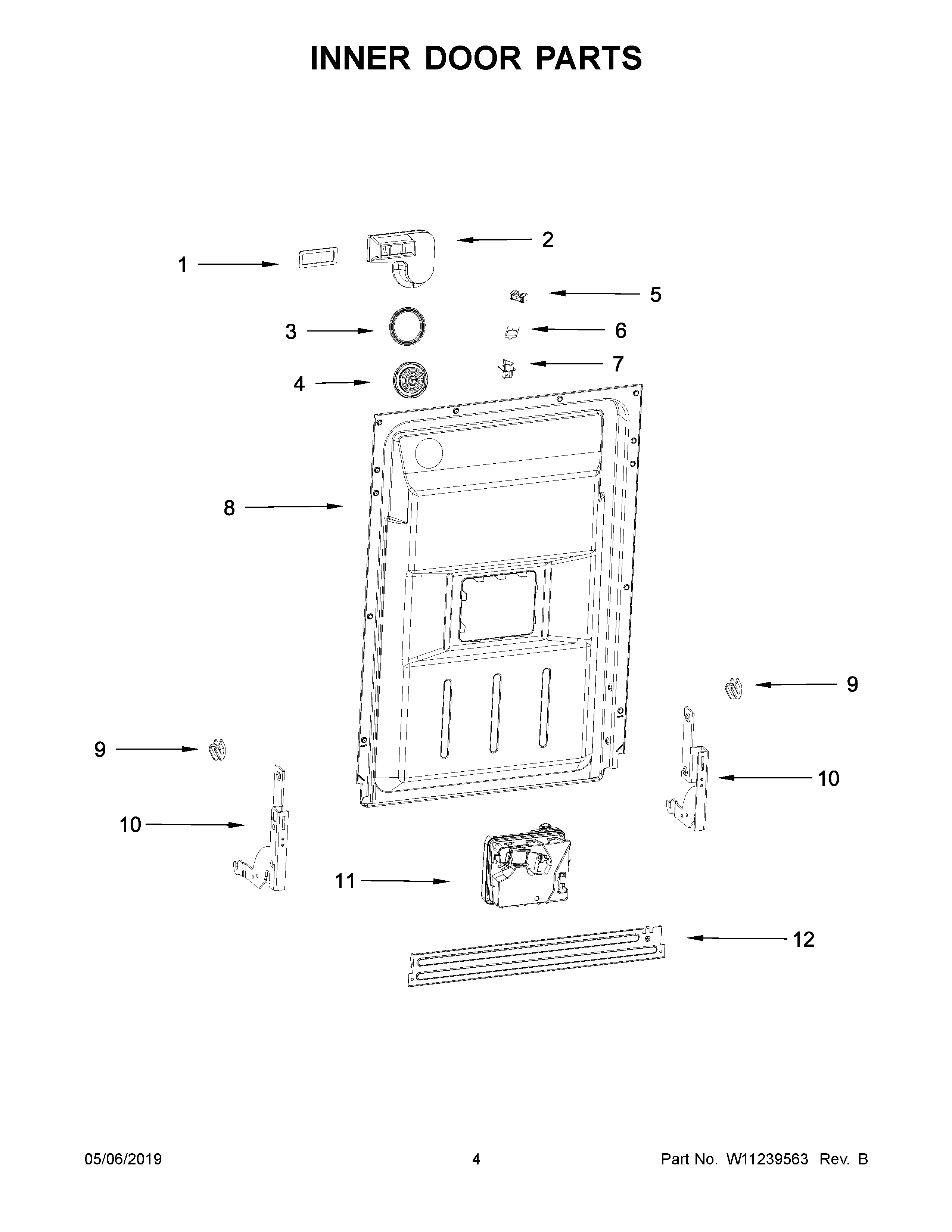

WDF550SAHB0 03 – INNER DOOR PARTS

WDF550SAHB0 03 – INNER DOOR PARTS

Written by

in

WDF550SAHB0 03 – INNER DOOR PARTS

Products

PositionProduct
1W11225863 Whirlpool Gasket
2W11230129 Whirlpool Vent
3W11243344 Whirlpool Gasket
4W11243345 Whirlpool Dishwasher Deflector
5W11230138 Whirlpool Dishwasher Latch Kit
6GASKET
7W11226146 Whirlpool Dishwasher Door Latch
8W11226196 Whirlpool Dishwasher Inner Door
9W11243348 Whirlpool Dishwasher Clip
10W11226198 Whirlpool Dishwasher Door Hinge
10AW11226199 Whirlpool Dishwasher Door Hinge
11W11689795 Whirlpool Dispenser
12W11243347 Whirlpool Dishwasher Hinge Bracket
13W11334448 Whirlpool Dishwasher Wire Harness
