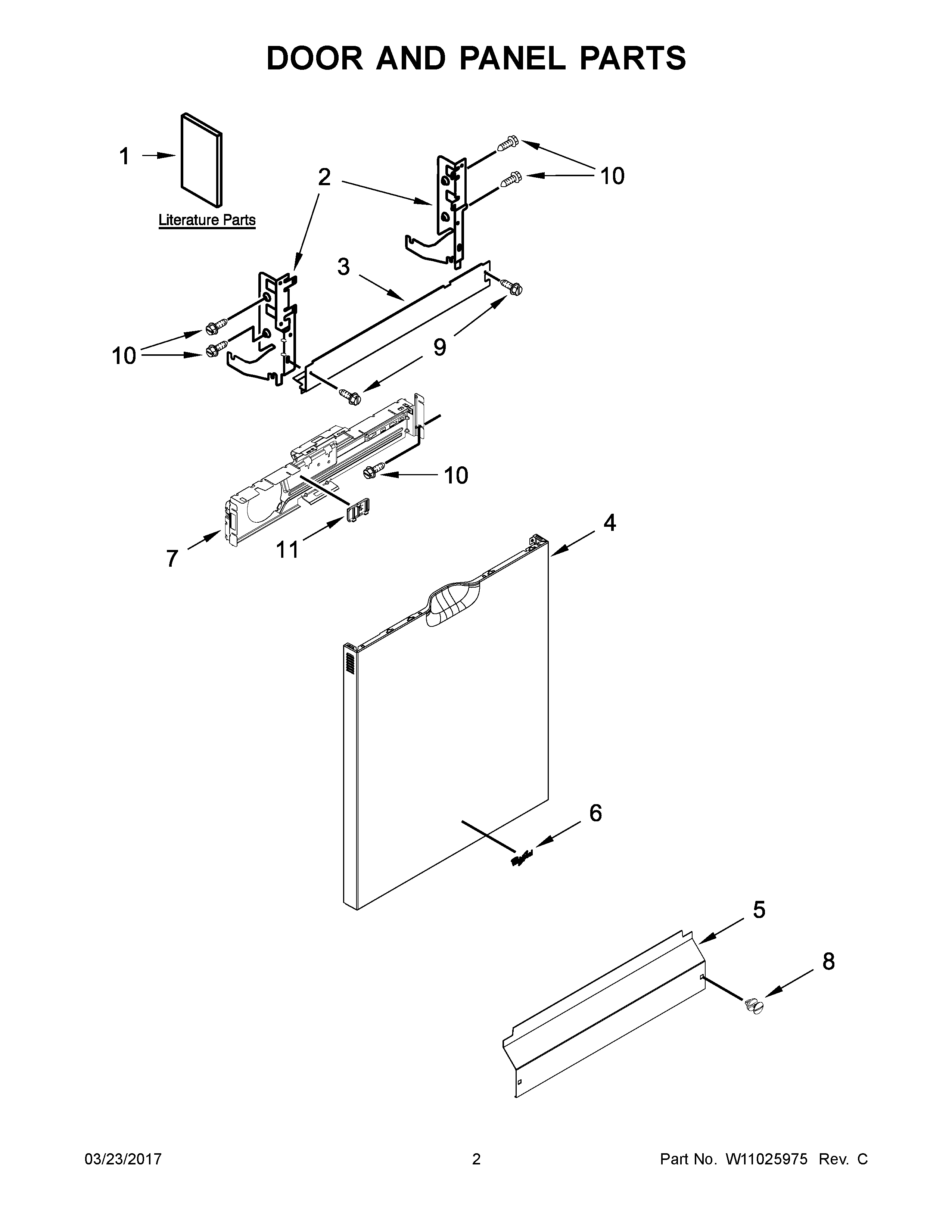

WDF560SAFT1 02 – DOOR AND PANEL PARTS

WDF560SAFT1 02 – DOOR AND PANEL PARTS

Written by

in

WDF560SAFT1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1AENERGY GUIDE
1BUSE & CARE GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10810488 Whirlpool Dishwasher Panel
4AW10849693 Whirlpool Dishwasher Panel
4CWPW10698615 Whirlpool Dishwasher Panel
4BW10839934 Whirlpool Dishwasher Panel
5PANEL
5BW10441008 Whirlpool Dishwasher Panel
5AWPW10441007 Whirlpool Dishwasher Panel
6WPW10393264 Whirlpool Refrigerator Nameplate
6AW11178521 Whirlpool Dishwasher Nameplate
7W11116870 Whirlpool Dishwasher Control Bracket
8BWPW10503550 Whirlpool Dishwasher Retainer
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AWPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WP3400071 Whirlpool Screw
11W10463662 Whirlpool Dishwasher Spacer Plate
