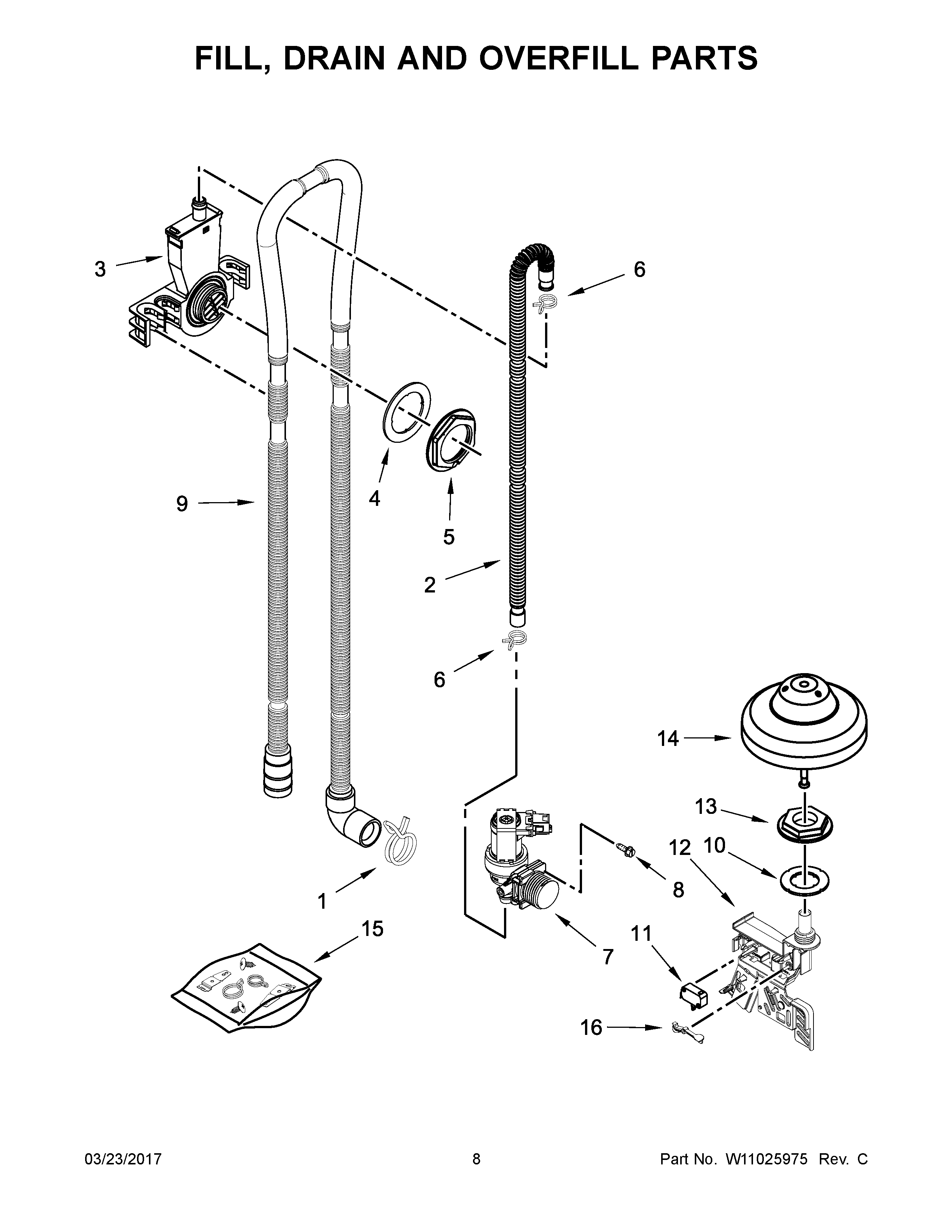

WDF560SAFT1 05 – FILL, DRAIN AND OVERFILL PARTS

WDF560SAFT1 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

WDF560SAFT1 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP285655 Whirlpool Hose Clamp
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10213825 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10327249 Whirlpool Dishwasher Water Inlet Fill Valve
8WP489069 Whirlpool Compactor Screw
9WPW10545278 Whirlpool Drain Hose
10WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
11WPW10195039 Whirlpool Dishwasher Float Switch
12W10873429 Whirlpool Housing
13WPW10195038 Whirlpool Dishwasher Nut
14WPW10195036 Whirlpool Dishwasher Float
15WPW10292152 Whirlpool Hardware Kit
16WPW10195037 Whirlpool Lever Assembly
