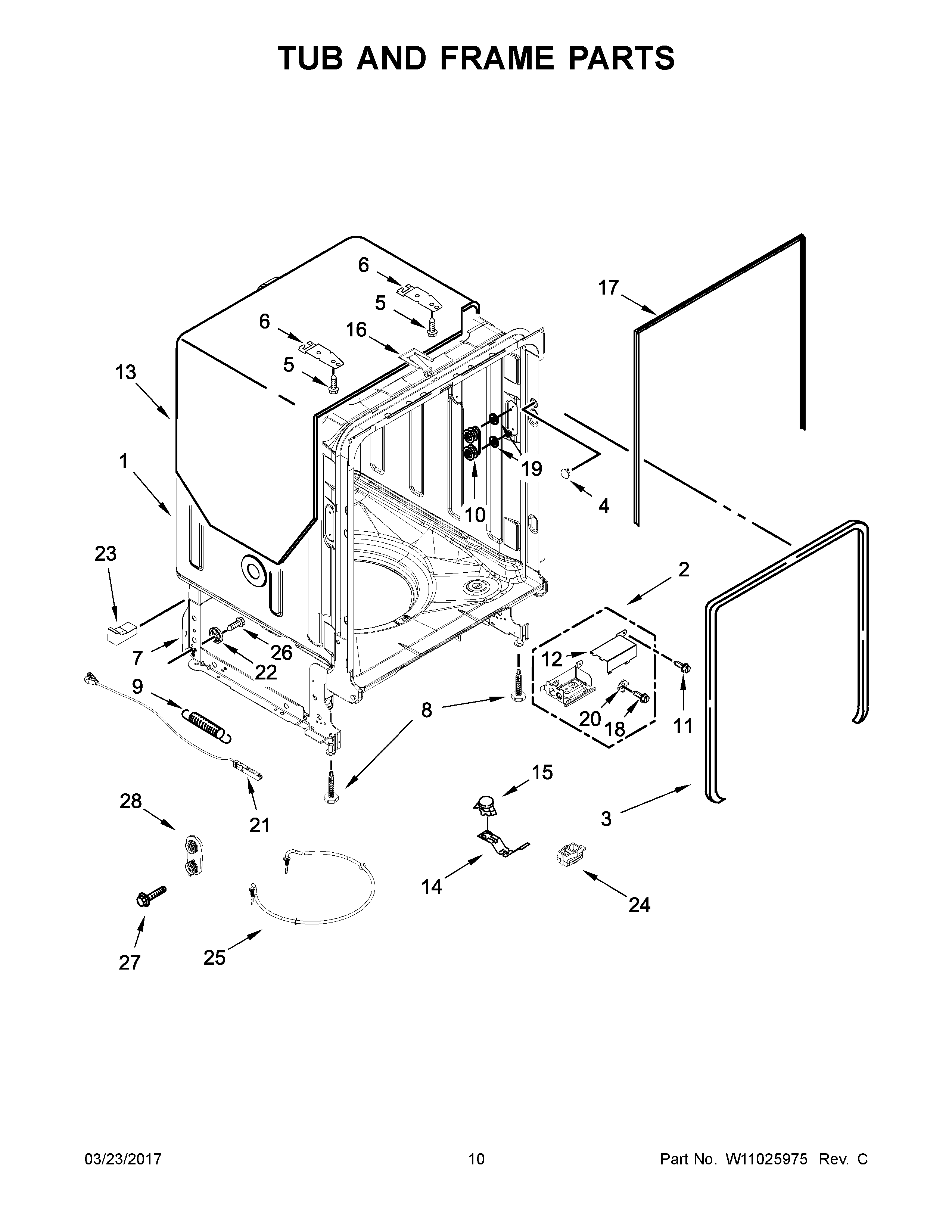

WDF560SAFW1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10681507 Whirlpool Dishwasher Tub
2	W11167239 Whirlpool Dishwasher Cover Assembly
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP308685 Whirlpool Microwave Screw
6	WP8269145 Whirlpool Dishwasher Mounting Bracket
7	WPW10681564 Whirlpool Dishwasher Support
8	8193716 Whirlpool Leveling Leg
9	SPRING
10	WPW10078083 Whirlpool Dishwasher Dishrack Wheel
11	WP3400892 Whirlpool Dishwasher Screw
12	W10847918 Whirlpool Dishwasher Cover
13	W11086533 Whirlpool Dishwasher Shield
14	W10300703 Whirlpool Dishwasher Bracket Stat
15	WPW10195091 Whirlpool Thermostat
16	WPW10544004 Whirlpool Dishwasher Strike
17	SEAL
18	WP3400014 Whirlpool Dishwasher Screw
19	WP9743002 Whirlpool Dishwasher Gasket
20	WP3378128 Whirlpool Dishwasher Washer
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	WPW10190778 Whirlpool Dishwasher Wheel
23	W10195630 Whirlpool Dishwasher Spacer
23A	W10195631 Whirlpool Dishwasher Tank Spacer
24	W10292870 Whirlpool Dishwasher Housing
25	W10703867 Whirlpool Dishwasher Heating Element
26	WPW10348411 Whirlpool Roller Wheel Screw
27	WP3400074 Whirlpool Dishwasher Screw
28	WPW10084086 Whirlpool Dishwasher Mount
