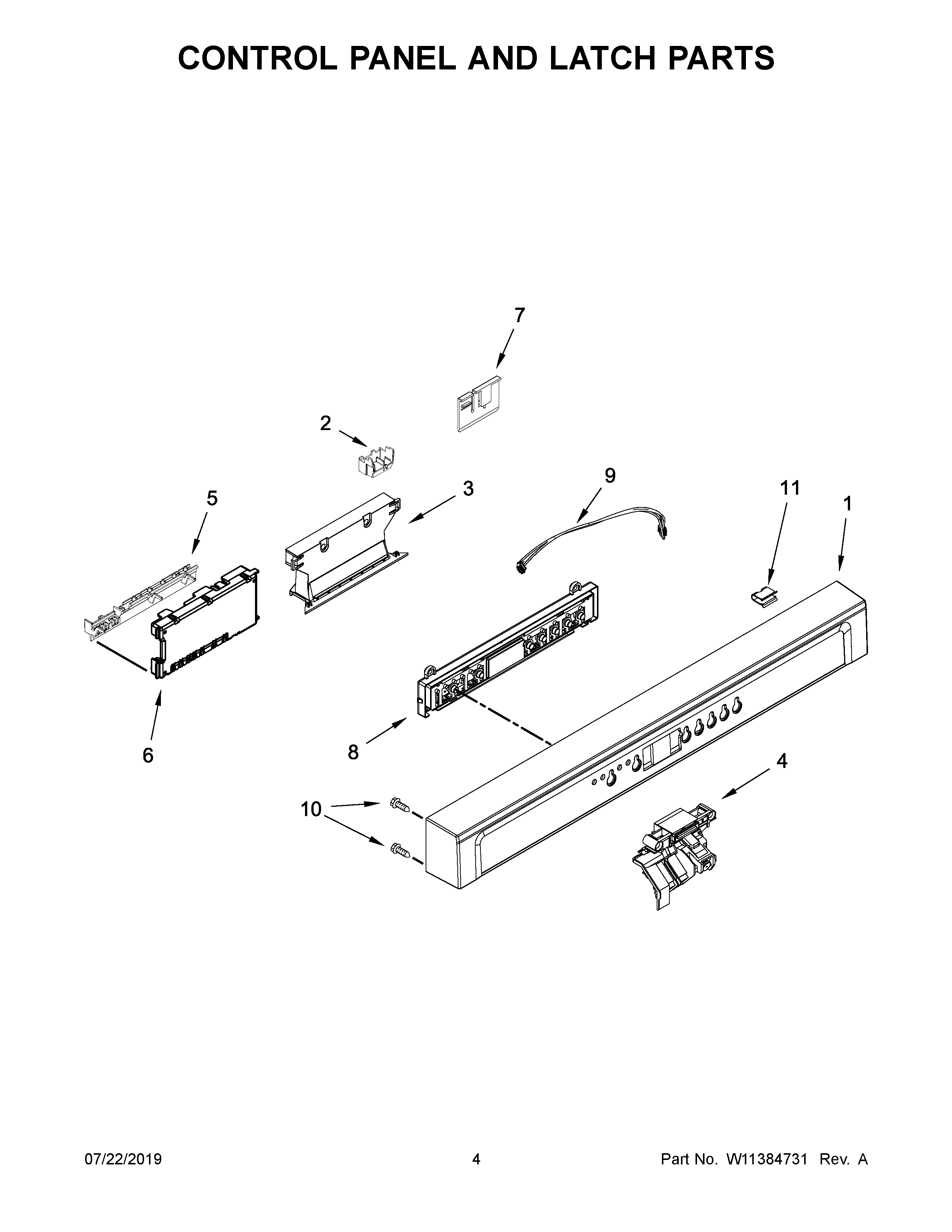

WDF590SAJM0 03 – CONTROL PANEL AND LATCH PARTS

WDF590SAJM0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF590SAJM0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10874377 Whirlpool Dishwasher Console
1AW10874370 Whirlpool Dishwasher Console
1W10874369 Whirlpool Dishwasher Console
3W11568629 Whirlpool Dishwasher Handle
4WPW10653840 Whirlpool Door Latch
5W11305293 Whirlpool Dishwasher Electronic Control Board
6W11306302 Whirlpool Dishwasher Electronic Control Board
7W11256107 Whirlpool Dishwasher Clip
8W10918489 Whirlpool Dishwasher UI Housing
9W11028004 Whirlpool Dishwasher Wire
10WPW10348408 Whirlpool Dishwasher Screw
11W10815836 Whirlpool Dishwasher Clip
