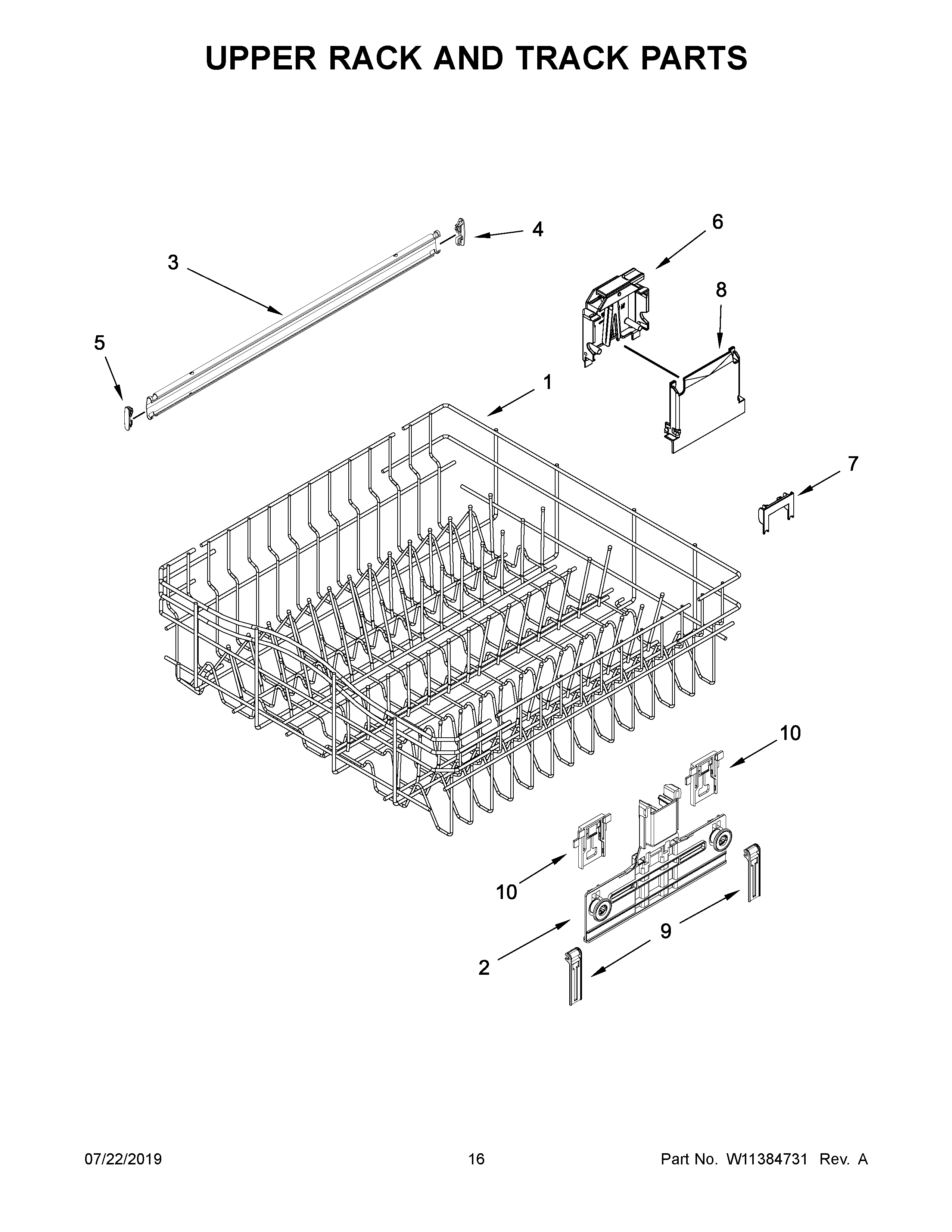

WDF590SAJW0 09 – UPPER RACK AND TRACK PARTS

WDF590SAJW0 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDF590SAJW0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10312792 Whirlpool Dishwasher Dishrack
2W10712395 Whirlpool Dishwasher Dishrack Adjuster
3WP3385089 Whirlpool Track
4WP8565925 Whirlpool Slide Rail Stop
6WPW10195372 Whirlpool Housing
6AWPW10195373 Whirlpool Housing
7WPW10250160 Whirlpool Clip
8COVER
9WPW10195839 Whirlpool Dishwasher Rack Adjuster
10WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
