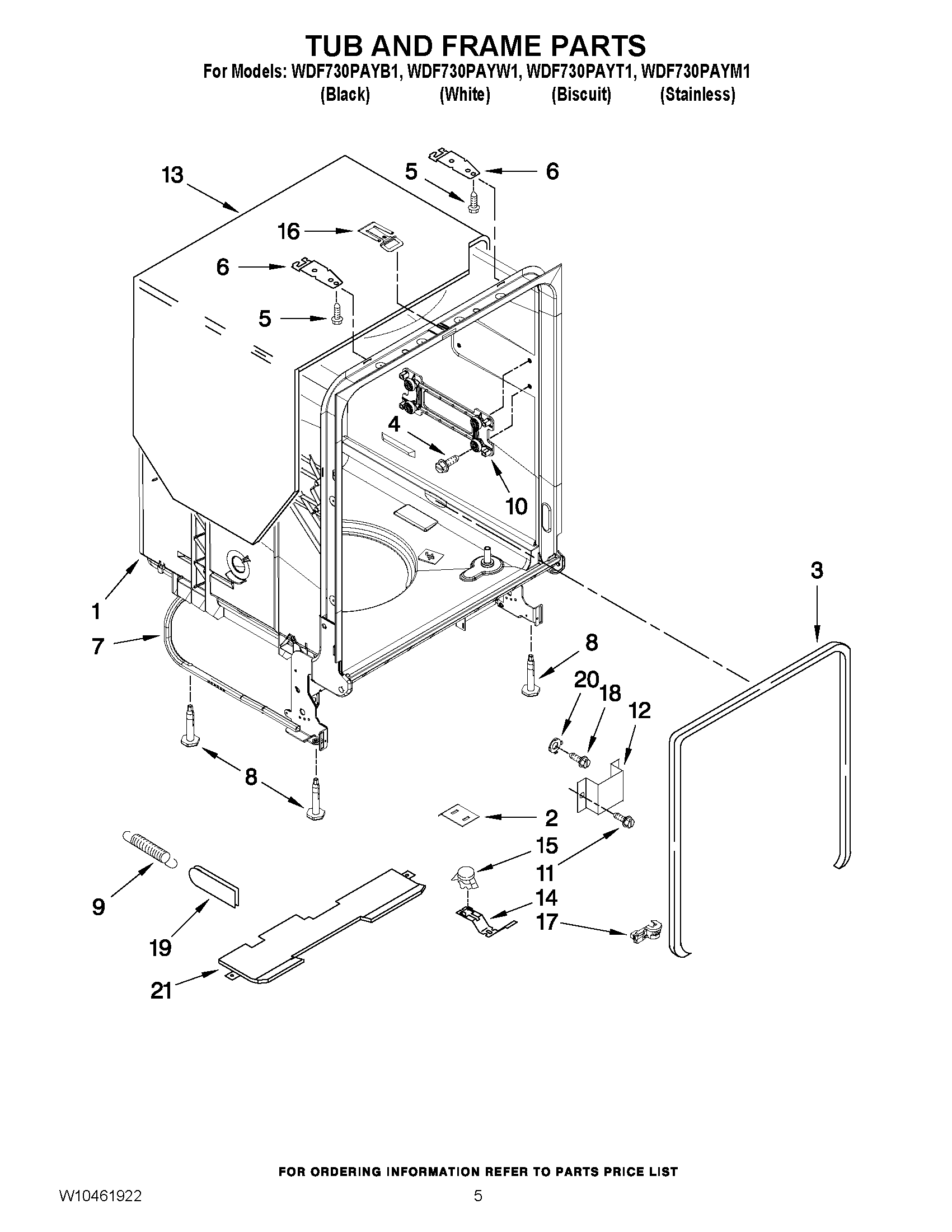

WDF730PAYB1 05 – TUB AND FRAME PARTS

WDF730PAYB1 05 – TUB AND FRAME PARTS

Written by

in

WDF730PAYB1 05 – TUB AND FRAME PARTS

Products

PositionProduct
1W11513974 Whirlpool Dishwasher Tub
2W10321574 Whirlpool Dishwasher Shield
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4W10817436 Whirlpool Screw
5WP308685 Whirlpool Microwave Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7WPW10271702 Whirlpool Dishwasher Support
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WPW10505751 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12WP8268991 Whirlpool Dishwasher Cover Assembly
13W10877094 Whirlpool Shield
14W10539489 Whirlpool Dishwasher Bracket-Stat
15WP661566 Whirlpool High Limit Thermostat
17W11384788 Whirlpool Dishwasher Relief Strainer
18WP3400014 Whirlpool Dishwasher Screw
19WP8268990 Whirlpool Dishwasher Door Spring Bushing
20WP3378128 Whirlpool Dishwasher Washer
21WPW10746770 Whirlpool Insulation Pad
