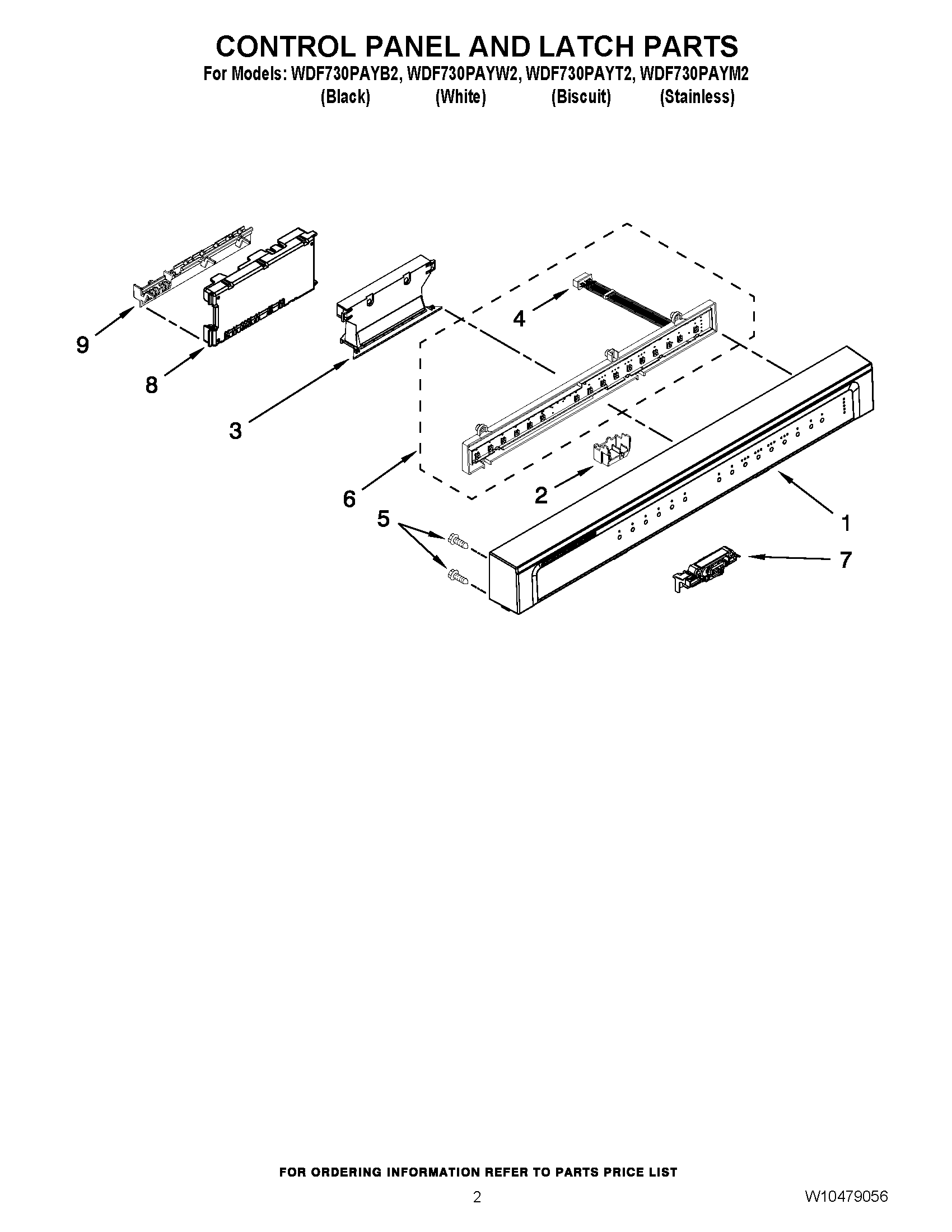

WDF730PAYB2 02 – CONTROL PANEL AND LATCH PARTS

WDF730PAYB2 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDF730PAYB2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10380295 Whirlpool Dishwasher Control Panel
1WPW10380298 Whirlpool Dishwasher Control Panel
1W10380297 Whirlpool Dishwasher Control Panel
1W10380296 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3WPW10321839 Whirlpool Dishwasher Handle
4W10327246 Whirlpool Dishwasher Wire
5WPW10177098 Whirlpool Dishwasher Screw
6WPW10629164 Whirlpool Dishwasher UI Housing
7W10619006 Whirlpool Door Latch
8W10479764 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
