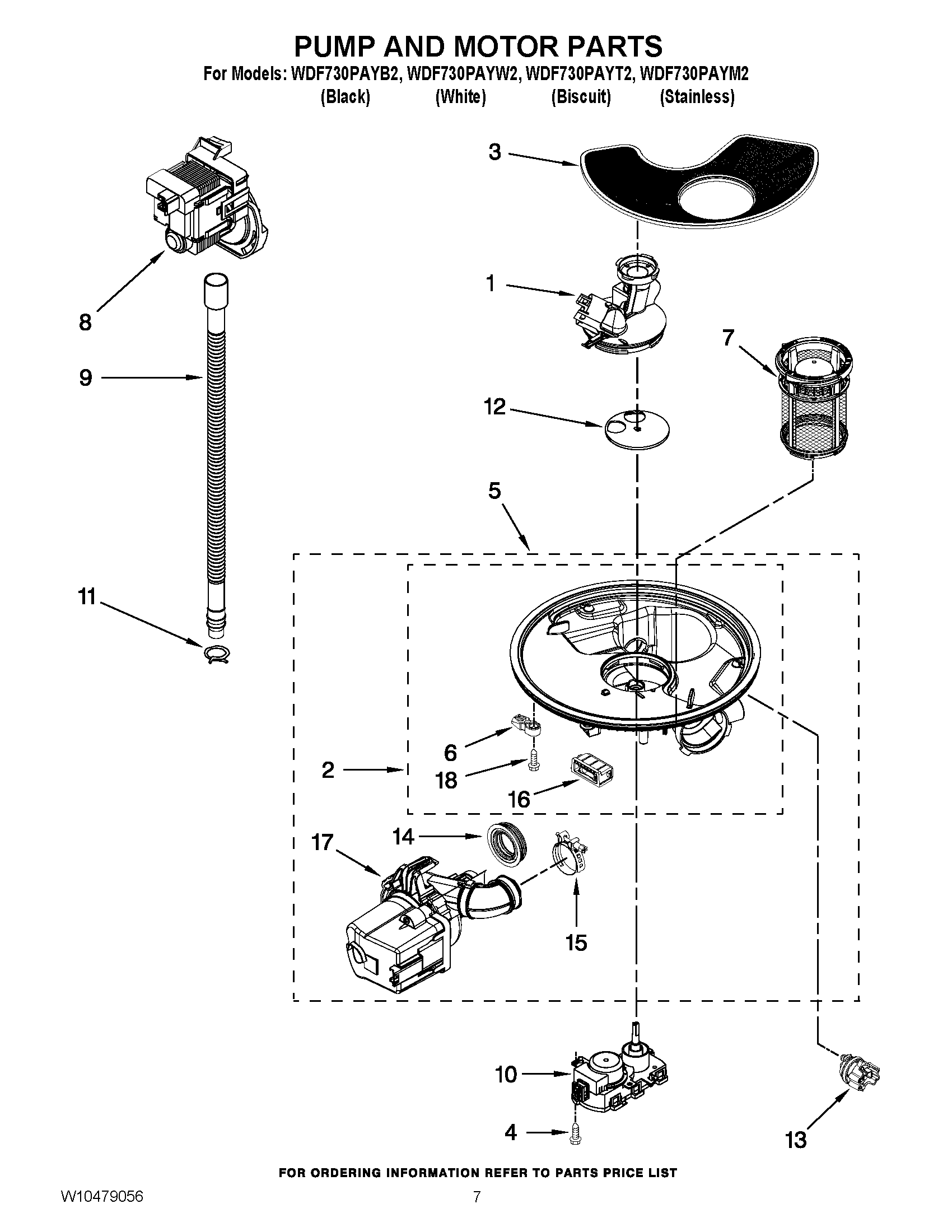

WDF730PAYB2 06 – PUMP AND MOTOR PARTS

Products

Position	Product
1	W10463895 Whirlpool Dishwasher Cover
2	WPW10455268 Whirlpool Sump
3	WPW10354786 Whirlpool Dishwasher Screen
4	WP9741232 Whirlpool Dishwasher Screw
5	WPW10482482 Whirlpool Dishwasher Pump and Motor
6	WPW10372113 Whirlpool Dishwasher Sump Tab
7	W10872845 Whirlpool Dishwasher Filter Cup Trap
8	WPW10348269 Whirlpool Washer Drain Pump
9	8269144A Whirlpool Dishwasher Drain Hose
10	W10537869 Whirlpool Dishwasher Motor
11	WP285655 Whirlpool Hose Clamp
12	DISC, DIVERTER
13	WPW10705575 Whirlpool Dishwasher Sensor
14	WPW10538166 Whirlpool Grommet Pump
15	WP8269146 Whirlpool Dishwasher Clamp
16	W11243394 Whirlpool Dishwasher Support
17	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
18	WPW10348407 Whirlpool Dishwasher Screw
