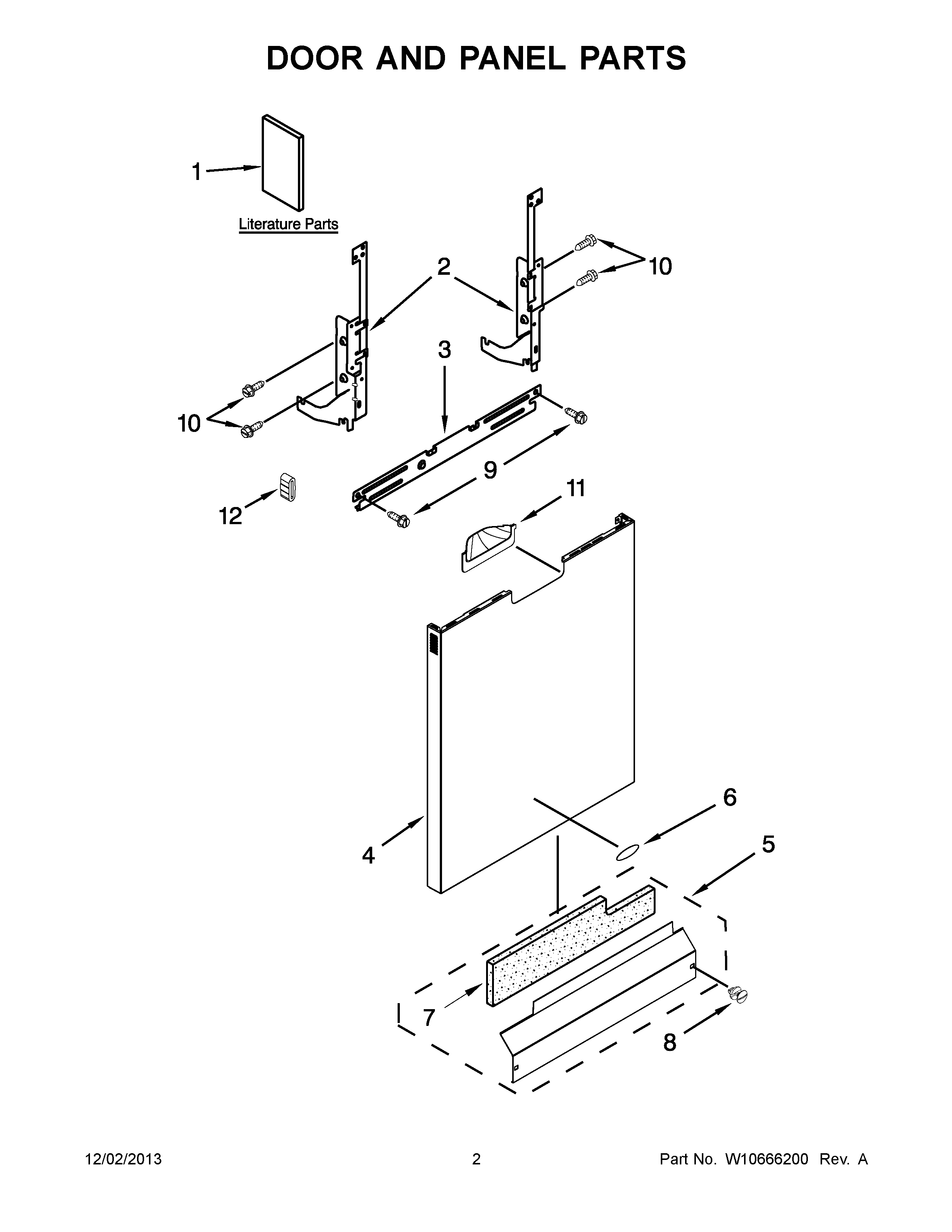

WDF730PAYB7 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET, FRENCH
1	TECH SHEET, ENGLISH
1	INSTALLATION, INSTRUCTIONS
1	USE & CARE GUIDE, ENGLISH/FRENCH
2	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	WPW10505605 Whirlpool Panel
4	PANEL, FRONT (INCLUDES ITEMS 6 & 12) (BLACK)
4	WPW10505606 Whirlpool Dishwasher Panel
5	W10369028 Whirlpool Dishwasher Panel
5	W10827631 Whirlpool Toe Panel
5	W10827632 Whirlpool Dishwasher Control Panel
6	W11178521 Whirlpool Dishwasher Nameplate
6	WPW10393264 Whirlpool Refrigerator Nameplate
7	SHIELD
8	WPW10503550 Whirlpool Dishwasher Retainer
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	POCKET ASSEMBLY (SILVER)
11	W10485102 Whirlpool Handle
11	W10485103 Whirlpool Handle
11	W10485101 Whirlpool Handle
12	WP8268961 Whirlpool Friction Pad
