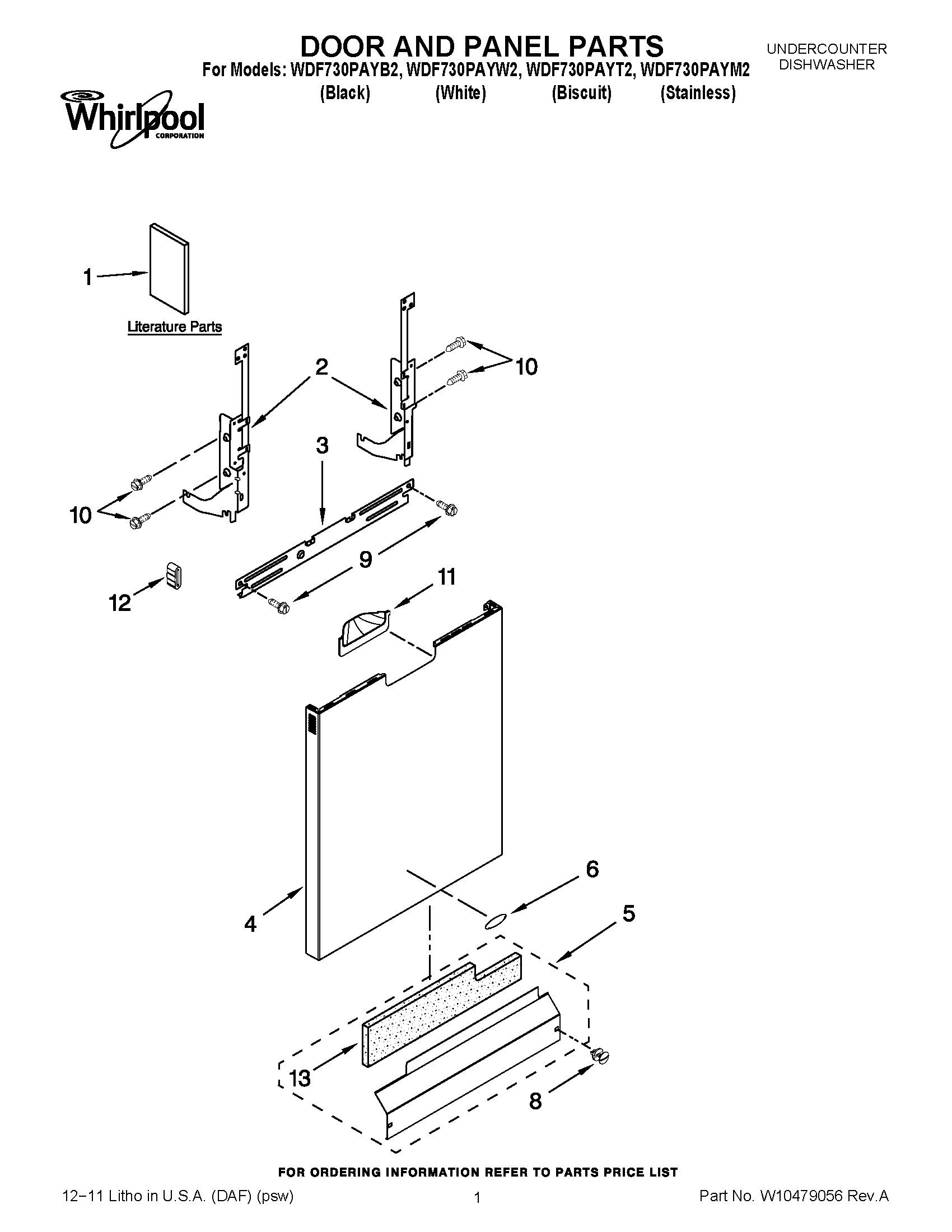

WDF730PAYM2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET, ENGLISH
1	INSTALLATION, INSTRUCTIONS
1	USE & CARE GUIDE, ENGLISH/FRENCH
1	TECH SHEET, FRENCH
2	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	PANEL FRONT (INCLUDES 6 & 12) (BISCUIT)
4	PANEL FRONT (INCLUDES 6 & 12) (WHITE)
4	PANEL FRONT (INCLUDES 6 & 12)
4	PANEL FRONT (INCLUDES 6 & 12) (BLACK)
5	W10827631 Whirlpool Toe Panel
5	W10827632 Whirlpool Dishwasher Control Panel
6	WPW10393264 Whirlpool Refrigerator Nameplate
8	WPW10503550 Whirlpool Dishwasher Retainer
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9	WP489069 Whirlpool Compactor Screw
10	WPW10109200 Whirlpool Screw
11	W10343321 Whirlpool Dishwasher Handle
11	POCKET ASSY (BLACK)
11	POCKET ASSY (BISCUIT)
11	POCKET ASSY
12	WP8268961 Whirlpool Friction Pad
13	SHIELD
